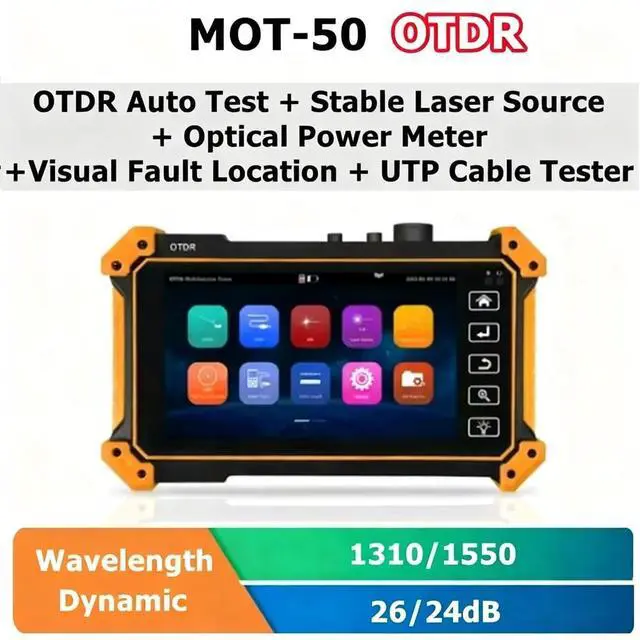

MOT-50/51 OTDR Tester OPM VFL Optic Time-domain Reflectometer Optic Fiber Tester MOT-50-1310/1550-26/24

OTDR

5.55 inch OLED touch screen display, 1280*720 resolution

1310/1550/1610wavelength Optional, 26/24dB Dynamic range Optional*, max test range 100KM*

Stable laser source, support CW/270/330/1000/2000Hz

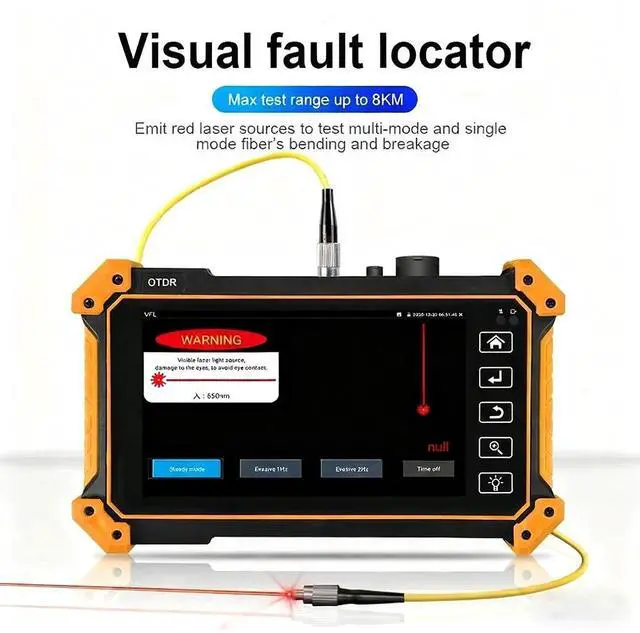

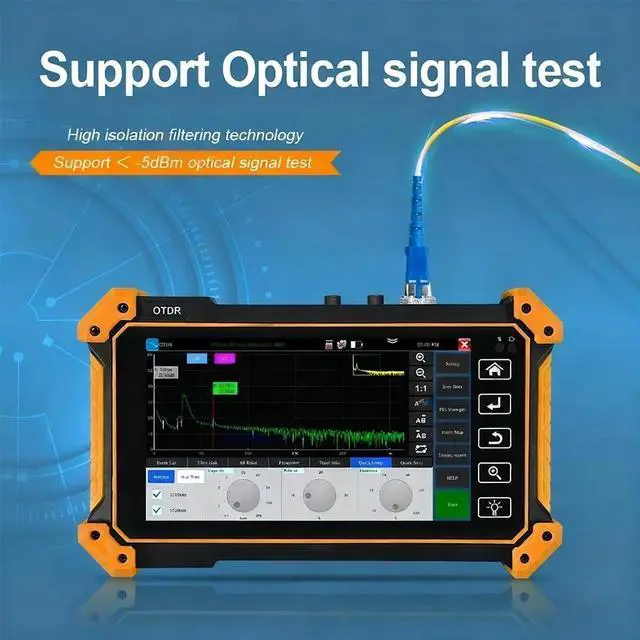

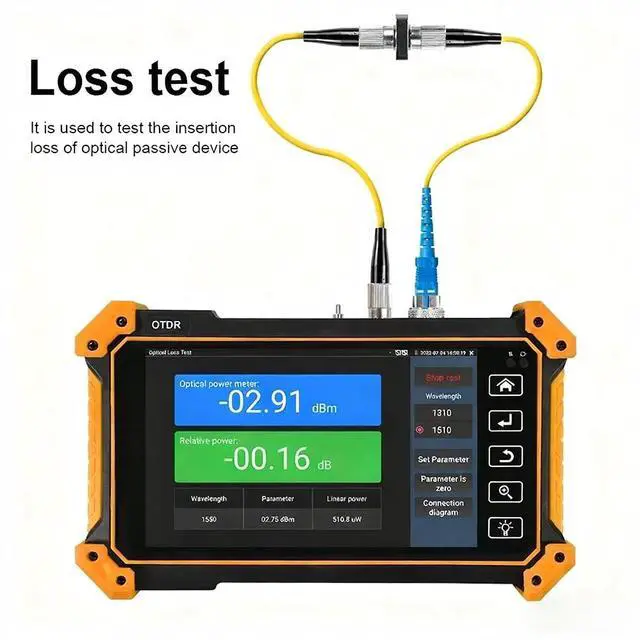

Optical power meter and visual fault locator

Test fiber's length, loss, attenuation parameters and event map, locate connection point/ fusion point

Automatic analysis of various linkers/fusion points, easy analyze of various events

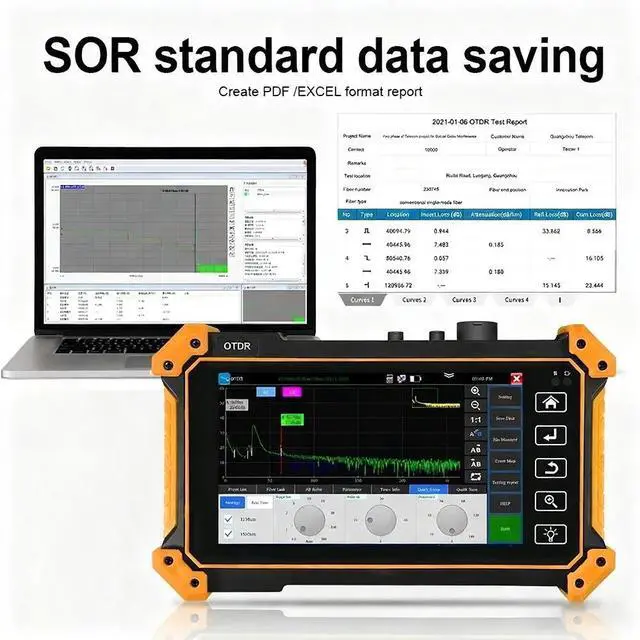

Save and view the testing curves, support zoom and move curves, view details.

Support saving curves number 30000pcs

Support create testing report, including curve trajectory graphs, parameter settings, fiber event information, and fiber link information. Report saved as EXCEL, PDF, or screenshots format etc

Cable test:

Improvement cable tester, UTP cable, telephone cable etc sequence and continuity test, save testing report. Support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

Cable length, BNC cable, network cable, telephone cable, RVV cable, elevator cable, and cat 5/6 cable's length test. Max measurement for cable's open is 3KM

Another function:

USB 5V 1A power output, as the power bank

3.7V 4000mA Li-ion Battery, 3.5 hours charging, normal working time lasts 6 hours
