Pololu 3.3V, 500mA Step-Down Voltage Regulator D24V5F3
- Typical efficiency of 80% to 93%
- Fixed 3.3 V output with 4% accuracy
- 500 kHz switching frequency (when not in power-save mode)
- Over-current and short-circuit protection, over-temperature shutoff
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Key Features:
- Fixed 3.3 V output with 4% accuracy
- Typical efficiency of 80% to 93%
- 500 kHz switching frequency (when not in power-save mode)
- Over-current and short-circuit protection, over-temperature shutoff

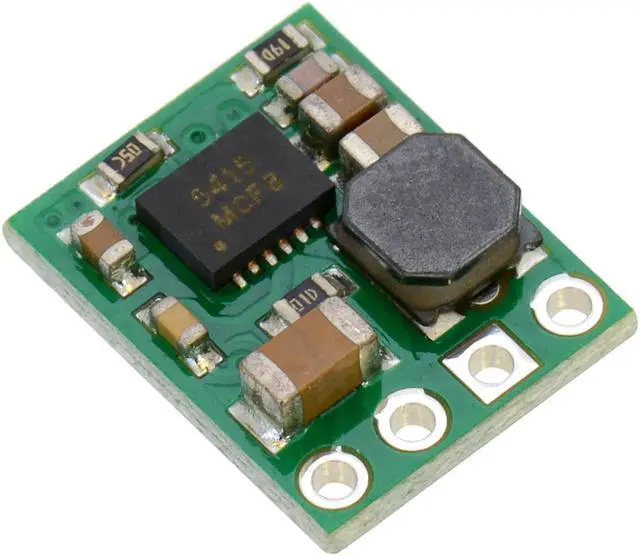

The compact ( 0.4" × 0.5" ) D24V5F3 synchronous buck voltage regulator takes an input voltage of up to 36 V and efficiently reduces it to 3.3 V while allowing for a maximum output current of 500 mA. This regulator offers typical efficiencies between 80% and 90% and has a very low dropout, so it can be used with input voltages as low as a few hundred millivolts above 3.3 V. The pins have a 0.1" spacing, making this board compatible with standard solderless breadboards and perfboards.
Item Specifics

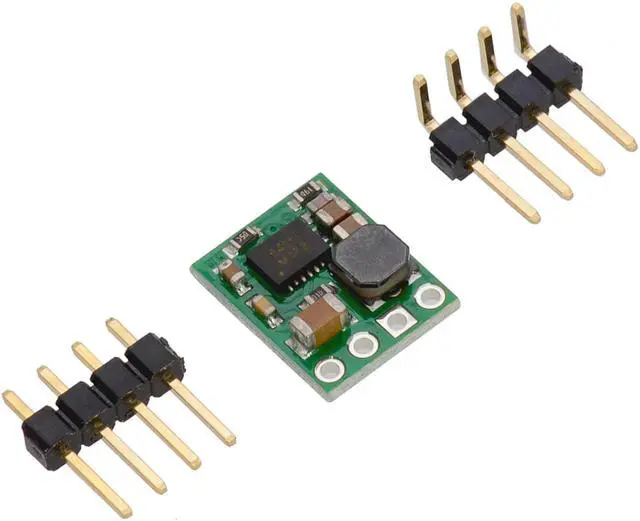

1 - PCB
1 - 0.1" 4x1 straight header
1 - 0.1" 4x1 right angle header
Minimum operating voltage: 3.4 V
Maximum operating voltage: 36 V
Maximum output current: 500 mA
Output voltage: 3.3 V
Maximum quiescent current: 0.2 mA
Size: 0.5 ″ × 0.4 ″ × 0.1 ″
Weight without header pins: 0.6 g
