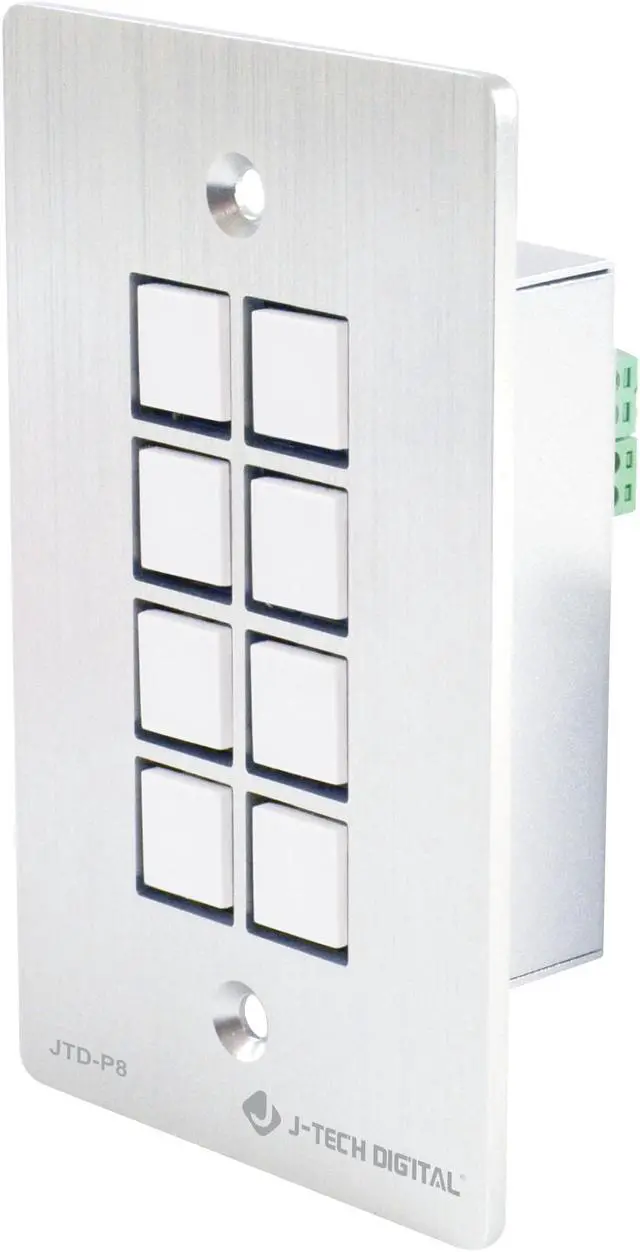

J-Tech Digital 8-Button Control Panel Wall Plate with Programmable LED Buttons, RS-232, RS-458, Relay and IR Control (JTD-P8)

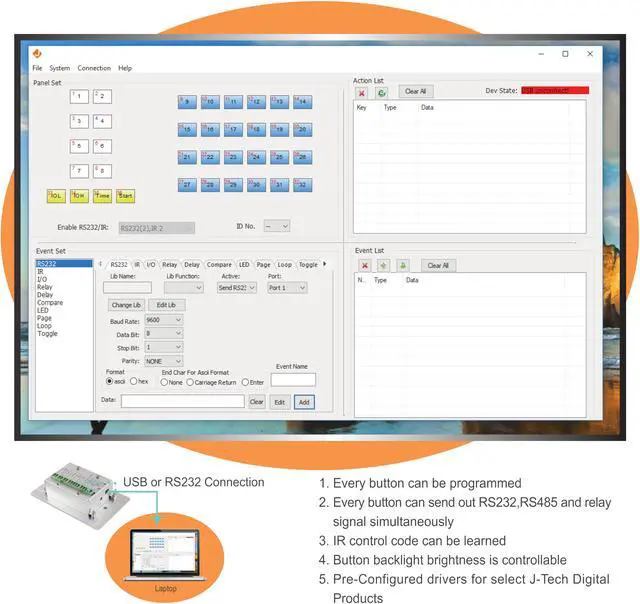

- PROGRAMMABLE BUTTONS: Each of the 8 buttons can be individually programmed through mini USB or IR learning via the provided PC software (available download through J-Tech Digital's website). The buttons can be programmed to work independently or as part of a group based on user preference.
- CONTROL END DEVICES: Use the control panel to send bi-directional commands to compliant devices via RS-232, RS-458, IR and Relay. Third-Party devices such as projectors, screens and TVs can also be controlled.

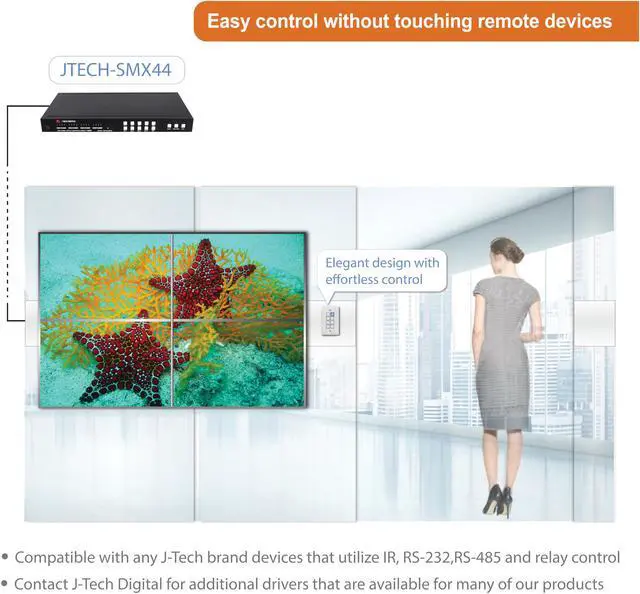

- COMPATIBLE WITH J-TECH DIGITAL BRAND PRODUCTS: Integrate this control panel system with our manageable devices including our HDMI Matrixes, Switches and Multiviewers.
- BACKLIT BUTTONS WITH READY-MADE LABELS: Identify each button on your control panel using one of the many included ready-made labels to simplify controlling your devices, making them easy to understand and operate. Some of the included label titles are: On, Off, Up, Down and more.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

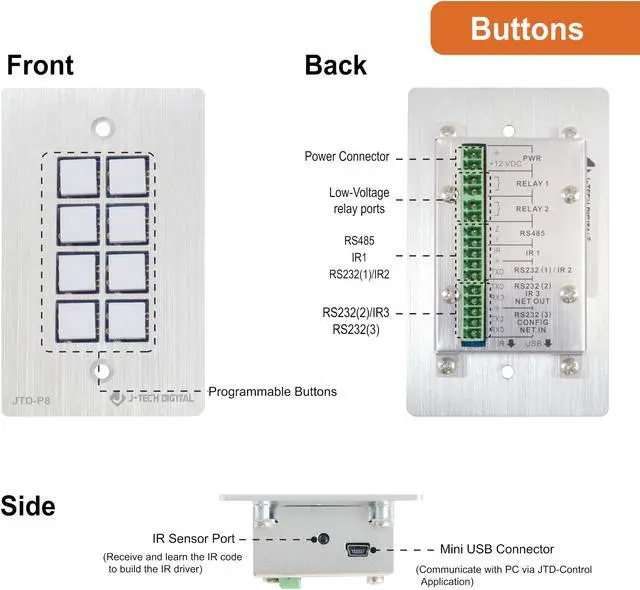

Description: The JTD-P8 is a programmable control panel that is designed to control your audio/video devices using infrared (IR), RS-232, RS-485, and relay communication. Every button on the wall plate is programmable and works either individually or together. This programmable control panel consists of 3x RS232, 1x RS485, 3x IR, 2x relays, and 1x mini USB interface for easy, one-touch programming. The RS-232 (1) and IR (2) share the same port and cannot be used at the same time. Also, RS232 (2) and IR (3) share the same port and cannot be used at the same time. With this unit you can fully control our products as well as third-party devices such as projectors, screens, TVs, etc. To download pre-configured drivers and RS-232 commands for the device you wish to control, visit J-Tech Digital's website or contact J-Tech Digital's support team.
Features: Program
using: USB cable (included) or RS-232 cable (not included)
Program port: USB or
RS-232 Output port: 3x RS-232, 1x RS-485, 3x IR, 2x relay
Serial control port: RS-232
Baud rate/protocol: 9600 baud, 8 data bits, 1 stop bit, no parity
Software: JTD-Control
Frequency response: 20Hz, 20KHz
Power supply: DC 12V/2A

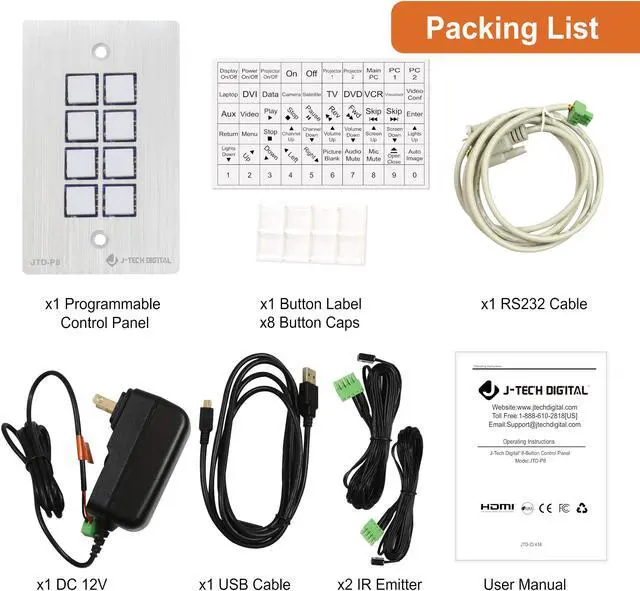

Package Contents: 1x JTD-P8 programmable control panel 3x 2-pin captive screw connectors 8x Button caps 1x 5ft
USB programming cable: A (male) to mini-B (male) 1x Power adapter (DC 12V) 2x IR emitter cables (1x single emitter cable, 1x double emitter cable) 1x Button label sheet (60 labels) 1x User manual
Extended Bullet Points: FREE
LIFETIME SUPPORT: All J-Tech Digital products include a 1-year manufacturer warranty and free lifetime technical support from our customer support team located in Sugar Land (just outside of Houston) in the great state of TEXAS! We are available Monday through
Friday: 9AM - 6PM CST. Contact information available on our seller page.
Features: Program
using: USB cable (included) or RS-232 cable (not included)
Program port: USB or
RS-232 Output port: 3x RS-232, 1x RS-485, 3x IR, 2x relay
Serial control port: RS-232
Baud rate/protocol: 9600 baud, 8 data bits, 1 stop bit, no parity
Software: JTD-Control
Frequency response: 20Hz, 20KHz
Power supply: DC 12V/2A
Package Contents: 1x JTD-P8 programmable control panel 3x 2-pin captive screw connectors 8x Button caps 1x 5ft
USB programming cable: A (male) to mini-B (male) 1x Power adapter (DC 12V) 2x IR emitter cables (1x single emitter cable, 1x double emitter cable) 1x Button label sheet (60 labels) 1x User manual
Extended Bullet Points: FREE
LIFETIME SUPPORT: All J-Tech Digital products include a 1-year manufacturer warranty and free lifetime technical support from our customer support team located in Sugar Land (just outside of Houston) in the great state of TEXAS! We are available Monday through
Friday: 9AM - 6PM CST. Contact information available on our seller page.
