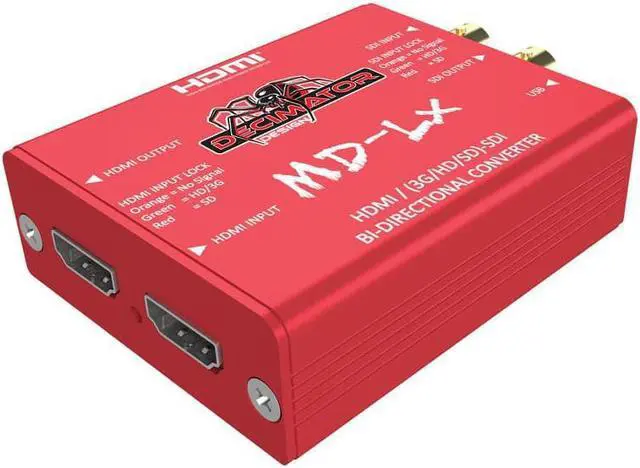

Main image of Decimator MD-LX HDMI/SDI Bi-Directional Converter #DD-LX

Shop All Decimator Design Products | Visit Focus Camera Store

Decimator MD-LX HDMI/SDI Bi-Directional Converter #DD-LX

SDI Formats:3G-A or 3G-B:SMPTE 424M at 2.97 and 2.967Gb/s:1080p at 60/59.94/50HzHD:SMPTE 292M/274M/296M at 1.485 and 1.435Gb/s:1080i at 60/59.94/50Hz1080p/psf at 30/29.97/25/24/23.98Hz720p at 60/59.94/50/30/29.97/25/24/23.98HzSD:SMPTE 259M at 270Mb/s:625i50 (PAL)525i59.94 (NTSC)
HDMI Formats:1080p at 60/59.94/50/30/29.97/25/24/23.98Hz1080i at 60/59.94/50Hz720p at 60/59.94/50/30/29.97/25625i50 (PAL)525i59.94 (NTSC)
Inputs:1x HDMI Type A1x (3G/HD/SD)-SDIMicro USB for power, control and firmware updates
Outputs:1x HDMI Type A1x (3G/HD/SD)-SDI
Power:USB Power +4.4V to +5.25V DCUses under 2.5 Watts
Dimensions:60 x 73.7 x 23mm (2.36 x 2.90 x 0.91")

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supports 3G level A and B on the input and output, allowing conversion between 3G level A and B
Auto Select (Active input to all outputs or if both inputs are active SDI to HDMI and HDMI to SDI)
HDMI IN to SDI OUT and SDI IN to HDMI OUT
SDI IN to HDMI and SDI OUT
HDMI IN to HDMI and SDI OUT
Low Power enabling operation from the USB
USB provides for power, control and firmware upgrades
This unit also includes a Power Supply and USB Cable (HDMI cable not included
