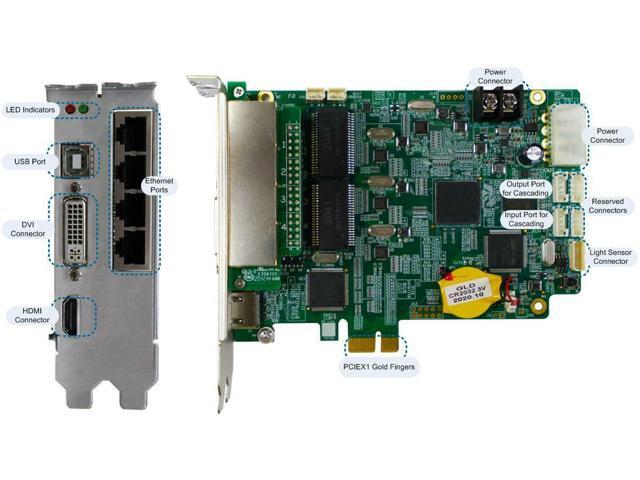

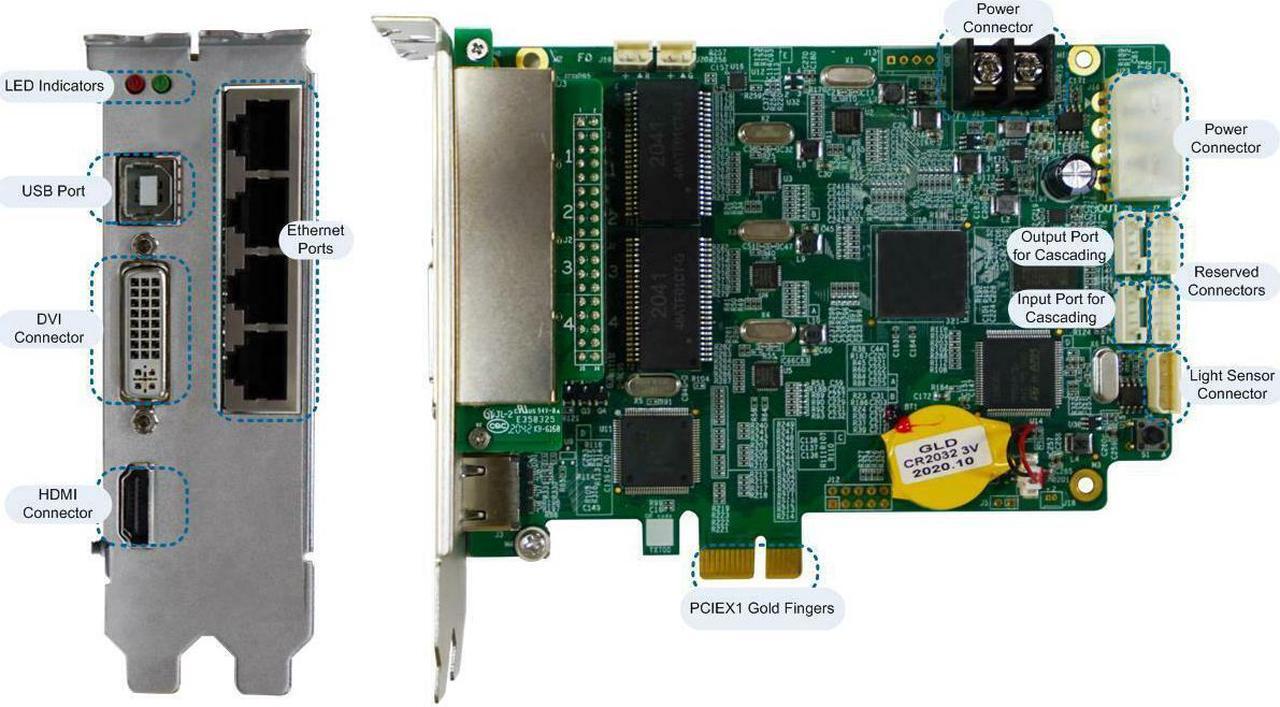

Main image of NovaStar MSD600-1 Sending Card LED Display Control Card for Video Wall Screen

Shop All NShi Products | Visit B-IN Electronics Store

NovaStar MSD600-1 Sending Card LED Display Control Card for Video Wall Screen

2 types of input connectors
1x SL-DVI
1x HDMI 1.3
4x Gigabit Ethernet outputs
1x light sensor connector
1x type-B USB control port
2x UART control ports used for device cascading. Up to 20 devices can be cascaded.
Pixel level brightness and chroma calibration
Working with NovaLCT and NovaCLB, the sending card supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
Note: This is the updated version of the MSD600. It meets higher EMC requirements but no longer includes an audio input.

Overview

Specs

Reviews

The MSD600-1 is a sending card developed by NovaStar. It supports 1x DVI input, 1x HDMI input, and 4x Ethernet outputs. A single MSD600-1 supports input resolutions up to 1920×1200@60Hz. The MSD600-1 communicates with PC via type-B USB port. Multiple MSD600-1 units can be cascaded via UART port.

As a highly cost-effective sending card, the MSD600-1 can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.
