24pcs 3M9448A 25x25x0.15mm Double Coated Tissue Tape Thermally Conductive Adhesive thermal pad for heat sink heatsink radiator

Features

Made by 3M9448A,Adhesive is a medium-firm acrylic adhesive system featuring both high initial adhesion and good high temperature holding power.

Dimension:25mm x 25mm x 0.15mm, 24pcs/lot

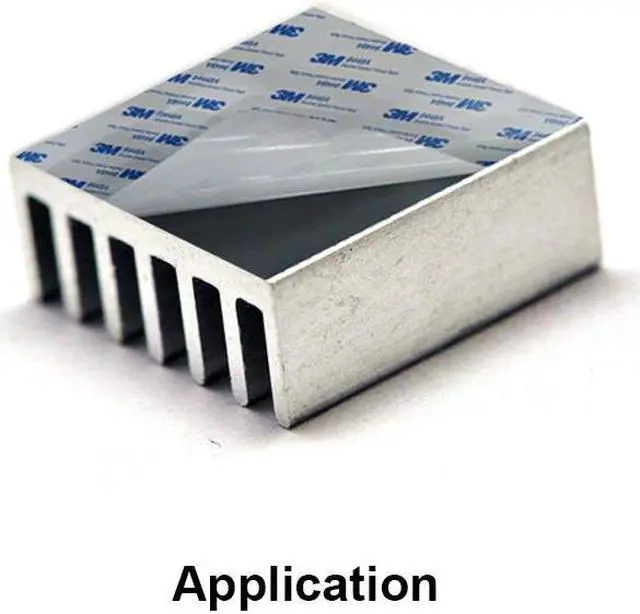

Used for applications requiring high thermal conductivity with good electrical insulation

High performance non-silicone thermal pad construction

Soft and conformable for use on non-flat surfaces

Good dielectric performance

Excellent durability for long term thermal conductivity and electric insulation stability

Specification:

Construction: 9448AB

Faceside 1 Adhesive Type/Thickness: Acrylate /0.003 " (0.076mm)

Backside 2 Adhesive Type/Thickness: Acrylate/0.003 " (0.076mm)

Liner Color, Type, Print White, 120gsm PCK ,

Liner Caliper: 0.0056 " (0.14mm)

Carrier Type: Tissue

Tape color: Black

Note 1: Faceside adhesive is on the interior of the roll, exposed when unwound.

Note 2: Backside adhesive is on the exterior of the roll, exposed when liner is removed.
