LTS Pro-X LXPTZIP424W-25XIR IP 4MP 25x Zoom Invisible IR Auto Tracking indoor NDAA PTZ Camera Replacement for LXPTZIP414W-X25IR

Overview

The LTS Pro-X LXPTZIP424W-25XIR is a 4MP network PTZ camera with 25x optical zoom, built to cover wide areas and then pull in tight on detail. Its 1/2.8" Sony STARVIS CMOS sensor delivers clean 4MP video at up to 30fps, while the 25x optical zoom lets a single camera monitor a parking lot, yard, or campus and still resolve faces and license plates at distance. Invisible IR illumination reaches up to 100 m (328 ft) without any visible glow the camera sees in total darkness while remaining discreet, unlike white-light or standard red-glow IR cameras. Onboard intelligence includes Auto Tracking Lite, which follows moving subjects automatically, plus MD2.0 human and vehicle detection, VCA analytics, and face detection to cut false alarms and speed up incident review. Housed in an IP66-rated 4-inch enclosure. NDAA compliant as part of the LTS Pro-X line.

Key Features

1. 25x Optical Zoom One camera covers a wide area and zooms in for identification-grade detail at long range.
2. 4MP Sony STARVIS Sensor 1/2.8" CMOS optimized for low-light sensitivity, at up to 25/30fps.
3. Invisible IR to 100 m (328 ft) Covert infrared illumination sees in complete darkness with no visible red glow, keeping the camera discreet.
4. Auto Tracking Lite Automatically follows moving people and vehicles through the scene without operator input.
5. AI Human & Vehicle Detection (MD2.0) Filters out animals, weather, and shadows to reduce false alerts.
6. VCA Analytics + Face Detection Intelligent video analysis for perimeter monitoring and faster forensic search.
7. Pan-Tilt-Zoom Control Full remote positioning for live monitoring and guard-tour coverage.
8. IP66 Rated Housing Sealed against dust and heavy water jets.
9. NDAA Compliant Part of the LTS Pro-X line, meeting federal sourcing requirements for government, education, and public-sector projects.

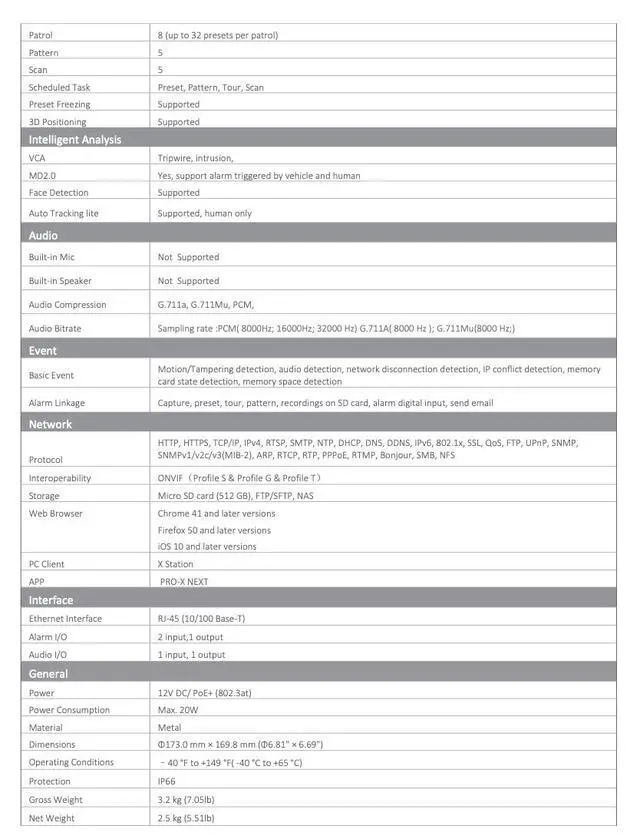

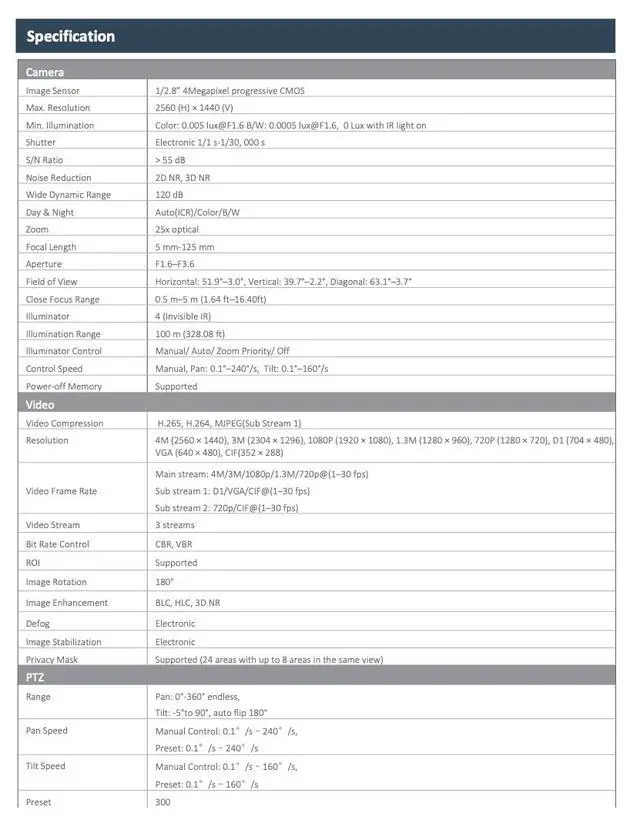

Specifications

1. Model: LXPTZIP424W-25XIR | Product Line: LTS Pro-X
2. Camera Type: PTZ, IP / Network | 4-inch form factor
3. Resolution: 4MP | Max Frame Rate: 25/30 fps @ 4MP
4. Image Sensor: 1/2.8" Sony STARVIS CMOS
5. Optical Zoom: 25x
6. IR Illumination: Invisible IR, up to 100 m (328 ft)
7. Analytics: Auto Tracking Lite, MD2.0 human & vehicle detection, VCA, face detection
8. Ingress Rating: IP66
9. Compliance: NDAA Compliant (LTS Pro-X)
