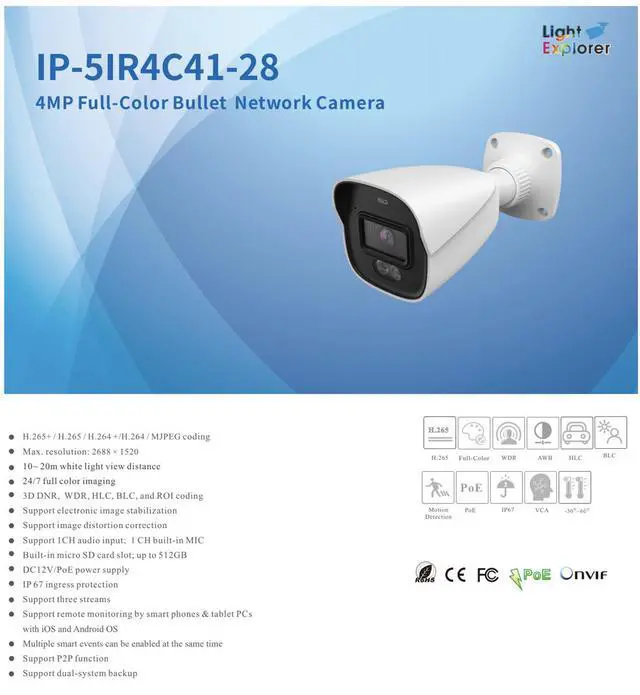

ENS Titanium IP-5IR4C41-28 4MP Full-Color Bullet IP Camera, 1/2.9 inch CMOS F1.0, 2.8mm, 120dB WDR, White Light, Human Vehicle Detection, Face Capture, Built-in Mic, IP67, PoE

Overview

The ENS Titanium IP-5IR4C41-28 is a 4MP full-color bullet network camera built for 24/7 color surveillance in low-light conditions. Its F1.0 aperture and 0.0005 lux sensitivity capture usable color detail in near darkness, and built-in white light illumination covers 1020 m (3366 ft) for full-color imaging after dark no switching to black-and-white infrared. A 120 dB true WDR handles harsh backlighting like doorways and parking entrances, while BLC, HLC, 3D DNR, and electronic image stabilization keep the picture clean. Onboard intelligent analytics go well beyond basic motion: line crossing, region intrusion, entrance and exit detection with human/vehicle classification, abandoned and missing object detection, face detection and capture, and line-based people/vehicle counting with multiple smart events running simultaneously. Video streams in H.265+ for efficient storage across three simultaneous streams, and a micro SD slot supports up to 512GB for edge recording. Built-in microphone plus a separate audio input, IP67 weatherproofing, a wide 30°C to 60°C operating range, and PoE or 12V DC power make it a straightforward install almost anywhere.

Key Features

1. 4MP Full-Color Night Imaging 2688 × 1520 at up to 30fps with F1.0 aperture and 0.0005 lux sensitivity for true color around the clock.
2. Built-In White Light, 1020 m Delivers full-color detail after dark, capturing clothing color, vehicle color, and facial detail that IR cannot.
3. 120 dB True WDR Balances bright and dark areas in the same frame; ideal for entrances, loading docks, and windows.
4. AI Analytics with Human/Vehicle Classification Line crossing, region intrusion, entrance/exit detection, and abandoned/missing object detection, all filtering out irrelevant motion.
5. Face Detection & Capture Automatically detects and captures faces for faster forensic review.
6. People & Vehicle Counting Target counting by line with human/vehicle classification for occupancy and traffic data.
7. Three Simultaneous Streams H.265+ main stream plus two sub streams for local recording, remote viewing, and mobile.
8. 512GB Edge Storage Micro SD slot with ANR for recording continuity if the network drops.
9. Two-Way Audio Ready Built-in microphone plus a separate 1-channel audio input.
10. Rugged Build IP67 rated, operating from 30°C to 60°C (22°F to 140°F).
11. Enterprise Security HTTPS, video and firmware encryption, 802.1X authentication, IP filtering, and illegal login lock.
12. Easy Power & Setup PoE (802.3af) or 12V DC, under 7W draw, ONVIF compatible, with P2P remote viewing via iOS/Android apps.

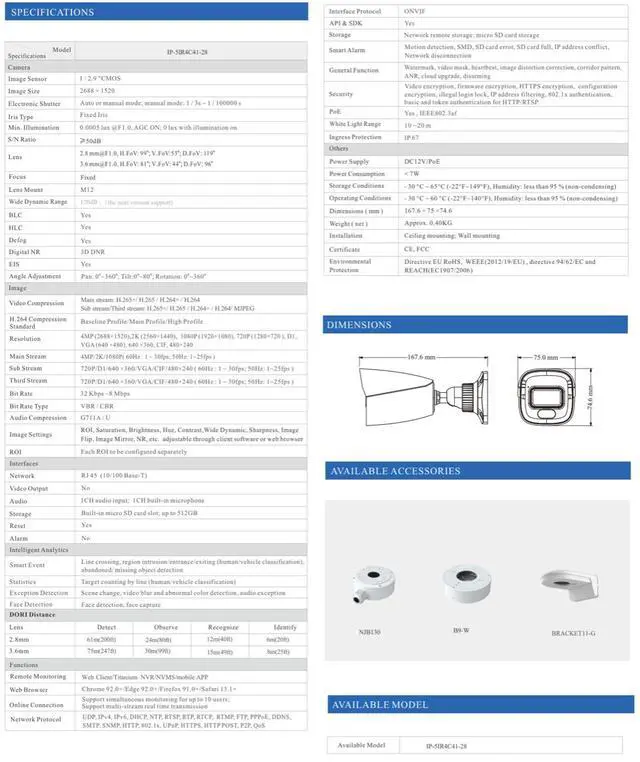

Specifications

1. Model: IP-5IR4C41-28 | Type: Fixed Bullet, IP/Network
2. Resolution: 4MP (2688 × 1520) | Frame Rate: up to 30fps (60Hz) / 25fps (50Hz)
3. Image Sensor: 1/2.9" CMOS | S/N Ratio: 50 dB
4. Lens: 2.8 mm @ F1.0 fixed | FoV: 99° horizontal, 53° vertical, 119° diagonal
5. Min. Illumination: 0.0005 lux @ F1.0 (AGC on); 0 lux with white light on
6. White Light Range: 1020 m (3366 ft) | Full-color 24/7
7. WDR: 120 dB | BLC, HLC, 3D DNR, ROI, EIS, image distortion correction
8. Electronic Shutter: Auto or manual (1/3 s to 1/100,000 s) | Fixed iris
9. Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub streams) | 32 Kbps8 Mbps
10. Streams: 3 (main + sub + third)
11. Analytics: Line crossing, region intrusion/entrance/exit (human/vehicle), abandoned & missing object, face detection & capture, line counting, scene change, video blur, abnormal color, audio exception
12. DORI (2.8mm): Detect 61 m (200 ft) | Observe 24 m (80 ft) | Recognize 12 m (40 ft) | Identify 6 m (20 ft)
13. Audio: 1CH audio input + 1CH built-in microphone | G.711A/U
14. Storage: Micro SD slot up to 512GB, plus network remote storage, ANR
15. Network: RJ45 10/100BASE-T | ONVIF | up to 10 simultaneous users
16. Security: Video/firmware/config encryption, HTTPS, 802.1X, IP filtering, login lock
17. Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <7W
18. Ingress Protection: IP67
19. Operating Conditions: 30°C to 60°C (22°F to 140°F), <95% RH non-condensing
20. Dimensions: 167.6 × 75 × 74.6 mm | Weight: approx. 0.40 kg (0.88 lbs)
21. Installation: Ceiling or wall mount
22. Certifications: CE, FCC | EU RoHS, WEEE, REACH
23. Adjustment: Pan 0360°, Tilt 080°, Rotation 0360°
