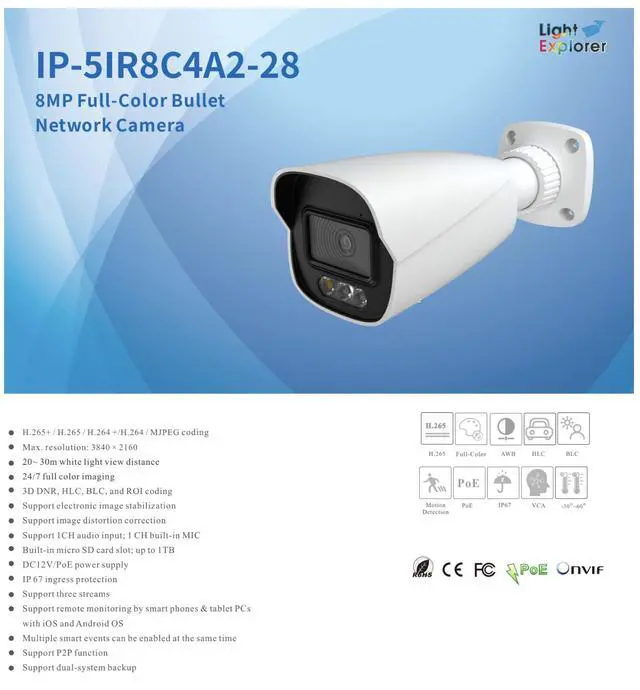

ENS Titanium IP-5IR8C4A2-28 8MP 4K Full-Color Bullet IP Camera, 1/1.8 inch CMOS F1.0, 2.8mm 110 Degree, White Light, Face Capture, Human Vehicle Detection, SD, IP67, PoE

Overview

The ENS Titanium IP-5IR8C4A2-28 is an 8MP (4K) full-color bullet network camera built for 24/7 color surveillance with maximum detail. Its large 1/1.8" CMOS sensor paired with an ultra-fast F1.0 aperture reaches 0.0005 lux sensitivity, capturing usable color in near darkness, and built-in white light extends full-color imaging to 2030 m (6698 ft) after dark. At 3840 × 2160 with a wide 110° field of view, a single camera covers a large area while retaining enough resolution to identify faces and read plates within range. Onboard intelligent analytics include line crossing, region intrusion, entrance and exit detection with human/vehicle classification, abandoned and missing object detection, face detection and capture, and line-based target counting with multiple events running at once. H.265+ compression across three streams keeps 4K bandwidth manageable, and the micro SD slot accepts cards up to 1TB for substantial standalone recording. Electronic image stabilization, distortion correction, a built-in microphone, IP67 weatherproofing, a 30°C to 60°C range, and PoE or 12V DC power complete the package.

Key Features

1. 8MP 4K Resolution 3840 × 2160 detail, with the option to run 4MP or 1080P at 30fps when higher frame rate matters more than resolution.
2. Large 1/1.8" Sensor with F1.0 Aperture 0.0005 lux sensitivity for genuine full-color imaging in very low light.
3. 24/7 Full Color White light illumination to 2030 m (6698 ft) captures clothing color, vehicle color, and facial detail that infrared cannot.
4. Wide 110° Field of View 2.8 mm lens covers large areas from a single mounting point.
5. Face Detection & Capture Automatically detects and snapshots faces for faster forensic review.
6. AI Analytics with Human/Vehicle Classification Line crossing, region intrusion, entrance/exit, and abandoned/missing object detection, filtering out irrelevant motion.
7. Target Counting by Line Built-in counting for traffic and occupancy data.
8. 1TB Edge Storage Micro SD slot supports cards up to 1TB with ANR, the largest in this camera class.
9. Image Stabilization & Distortion Correction Steady, geometrically accurate video on poles and long mounts.
10. Rugged Build IP67 rated, operating from 30°C to 60°C (22°F to 140°F).
11. Enterprise Security HTTPS, video/firmware/config encryption, 802.1X, IP filtering, and illegal login lock.

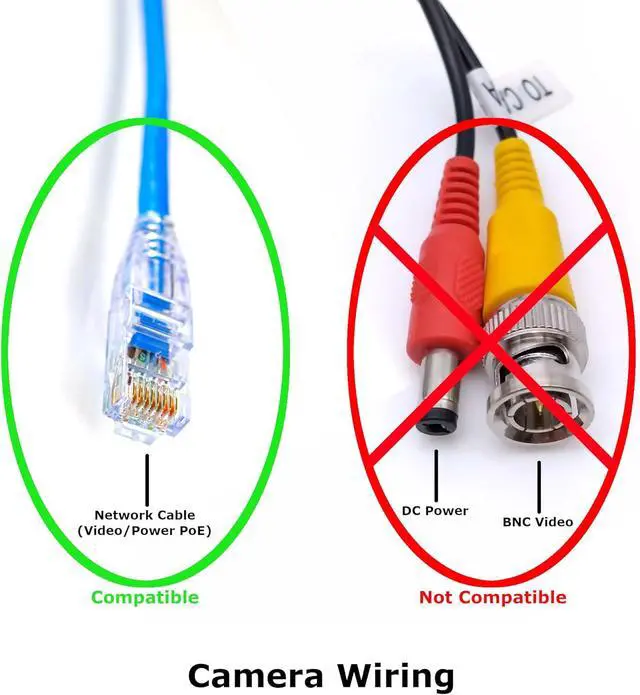

12. Efficient Install PoE (802.3af) or 12V DC, under 7.5W, ONVIF compatible, P2P remote viewing on iOS and Android.

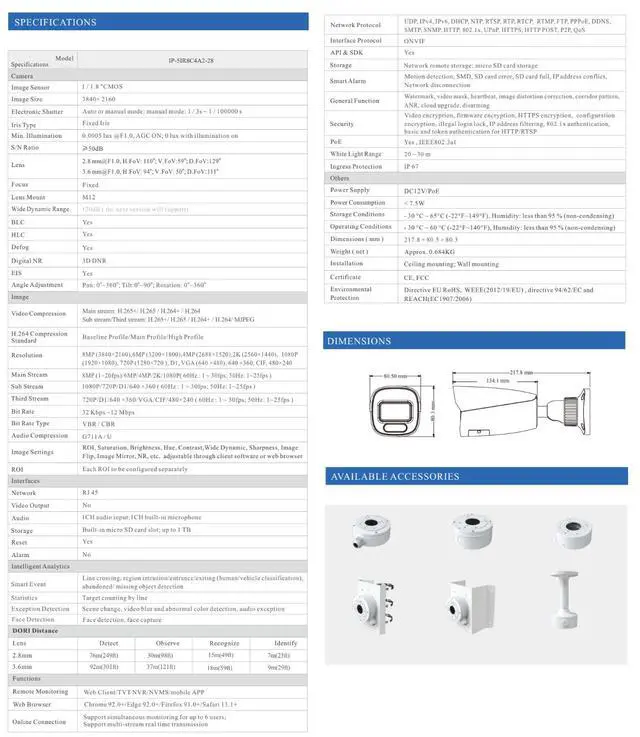

Specifications

1. Model: IP-5IR8C4A2-28 | Type: Fixed Bullet, IP/Network
2. Resolution: 8MP (3840 × 2160) | Frame Rate: 120fps at 8MP; up to 30fps at 4MP/2K/1080P
3. Image Sensor: 1/1.8" CMOS | S/N Ratio: 50 dB
4. Lens: 2.8 mm @ F1.0 fixed, M12 mount | FoV: 110° horizontal, 59° vertical, 129° diagonal
5. Min. Illumination: 0.0005 lux @ F1.0 (AGC on); 0 lux with white light on
6. White Light Range: 2030 m (6698 ft) | Full-color 24/7
7. Image: BLC, HLC, 3D DNR, ROI, EIS, image distortion correction
8. Electronic Shutter: Auto or manual (1/3 s to 1/100,000 s) | Fixed iris
9. Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 32 Kbps12 Mbps
10. Streams: 3 (main + sub + third)
11. Analytics: Line crossing, region intrusion/entrance/exit (human/vehicle classification), abandoned & missing object, face detection & capture, target counting by line, scene change, video blur, abnormal color, audio exception
12. DORI (2.8mm): Detect 76 m (249 ft) | Observe 30 m (98 ft) | Recognize 15 m (49 ft) | Identify 7 m (23 ft)
13. Audio: 1CH audio input + 1CH built-in microphone | G.711A/U
14. Storage: Micro SD up to 1TB, network remote storage, ANR
15. Network: RJ45 | ONVIF | API & SDK | up to 6 simultaneous users
16. Security: Video/firmware/config encryption, HTTPS, 802.1X, IP filtering, login lock
17. Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <7.5W
18. Ingress Protection: IP67
19. Operating Conditions: 30°C to 60°C (22°F to 140°F), <95% RH non-condensing
20. Dimensions: 217.8 × 80.5 × 80.3 mm | Weight: approx. 0.684 kg (1.51 lbs)
21. Installation: Ceiling or wall mount | Pan 0360°, Tilt 090°, Rotation 0360°
22. Certifications: CE, FCC | EU RoHS, WEEE, REACH
