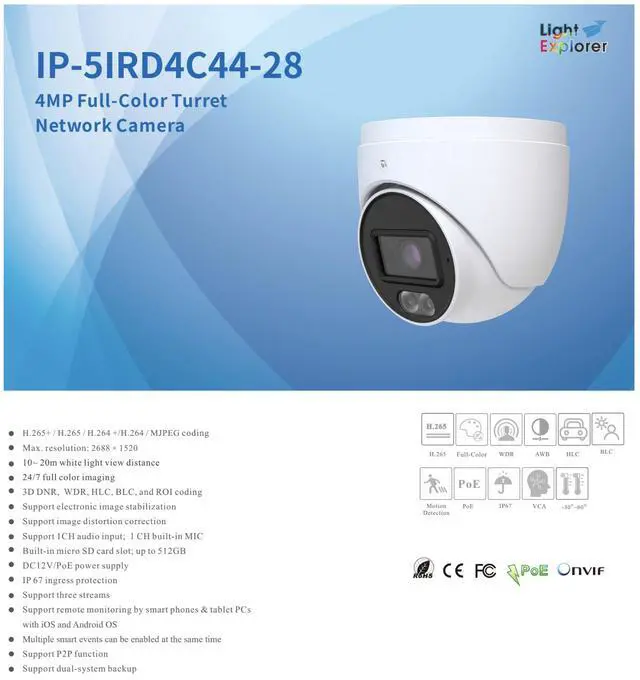

ENS Titanium IP-5IRD4C44-28 4MP Full-Color Turret IP Camera, 1/2.9 inch CMOS F1.0, 2.8mm, 120dB WDR, White Light, Face Capture, Human Vehicle Detection, SD Card Slot, IP67, PoE

Overview

The ENS Titanium IP-5IRD4C44-28 is a 4MP full-color turret network camera built for 24/7 color surveillance in a compact, low-profile housing. Its F1.0 aperture and 0.0005 lux sensitivity capture usable color detail in near darkness, and built-in white light illumination covers 1020 m (3366 ft) for full-color imaging after dark rather than switching to black-and-white infrared. A 120 dB true WDR handles harsh backlighting at entrances and windows, while BLC, HLC, 3D DNR, and electronic image stabilization keep the image clean. Onboard intelligent analytics include line crossing, region intrusion, entrance and exit detection with human/vehicle classification, abandoned and missing object detection, face detection and capture, and line-based people and vehicle counting with multiple smart events active simultaneously. H.265+ compression across three streams keeps bandwidth and storage efficient, and the micro SD slot accepts cards up to 512GB with ANR for recording continuity. The discreet turret form factor is easier to aim than a fixed dome and less conspicuous than a bullet, making it a strong fit for entryways, retail interiors, offices, soffits, and ceilings. IP67 rated with a 30°C to 60°C operating range and powered over PoE or 12V DC.

Key Features

1. 4MP Full-Color Night Imaging 2688 × 1520 at up to 30fps with F1.0 aperture and 0.0005 lux sensitivity for true color around the clock.
2. Built-In White Light, 1020 m Captures clothing color, vehicle color, and facial detail that infrared cannot.
3. 120 dB True WDR Balances bright and dark areas in the same frame; ideal for doorways, lobbies, and windows.
4. Discreet Turret Design Low-profile housing at just Ø94.6 mm, easy to aim on install and less visually intrusive than a bullet.
5. AI Analytics with Human/Vehicle Classification Line crossing, region intrusion, entrance/exit, and abandoned/missing object detection, filtering out irrelevant motion.
6. Face Detection & Capture Automatically detects and snapshots faces for faster forensic review.
7. People & Vehicle Counting Line-based target counting with human/vehicle classification for occupancy and traffic data.
8. Three Simultaneous Streams H.265+ main stream plus two sub streams for recording, remote viewing, and mobile.
9. 512GB Edge Storage with ANR Micro SD recording continues if the network drops, then backfills automatically.
10. Built-In Microphone Plus a separate 1-channel audio input for external mic.
11. Rugged Build IP67 rated, operating from 30°C to 60°C (22°F to 140°F).
12. Enterprise Security HTTPS, video/firmware/config encryption, 802.1X, IP filtering, and illegal login lock.
13. Easy Install PoE (802.3af) or 12V DC, under 7W draw, ONVIF compatible, P2P remote viewing on iOS and Android.

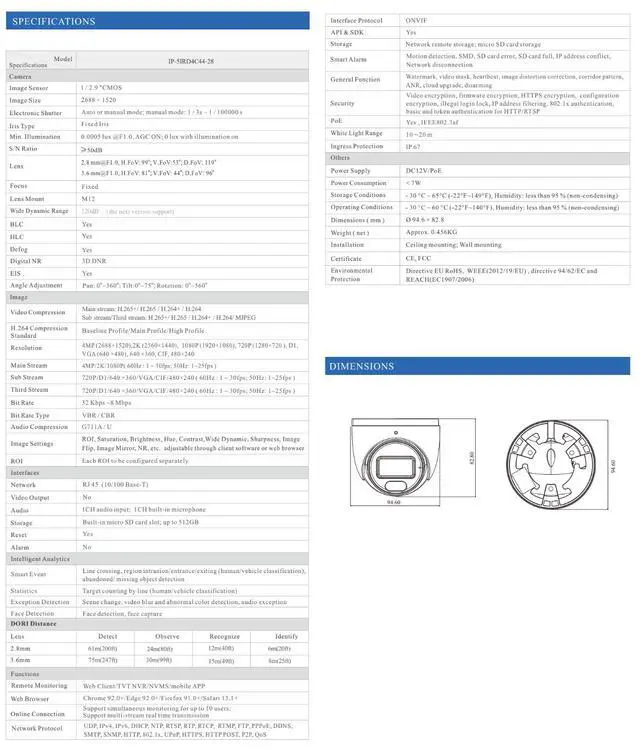

Specifications

1. Model: IP-5IRD4C44-28 | Type: Fixed Turret, IP/Network
2. Resolution: 4MP (2688 × 1520) | Frame Rate: up to 30fps (60Hz) / 25fps (50Hz)
3. Image Sensor: 1/2.9" CMOS | S/N Ratio: 50 dB
4. Lens: 2.8 mm @ F1.0 fixed, M12 mount | FoV: 99° horizontal, 53° vertical, 119° diagonal
5. Min. Illumination: 0.0005 lux @ F1.0 (AGC on); 0 lux with white light on
6. White Light Range: 1020 m (3366 ft) | Full-color 24/7
7. WDR: 120 dB | BLC, HLC, 3D DNR, ROI, EIS, image distortion correction
8. Electronic Shutter: Auto or manual (1/3 s to 1/100,000 s) | Fixed iris
9. Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 32 Kbps8 Mbps
10. Streams: 3 (main + sub + third)
11. Analytics: Line crossing, region intrusion/entrance/exit (human/vehicle classification), abandoned & missing object, face detection & capture, target counting by line, scene change, video blur, abnormal color, audio exception
12. DORI (2.8mm): Detect 61 m (200 ft) | Observe 24 m (80 ft) | Recognize 12 m (40 ft) | Identify 6 m (20 ft)
13. Audio: 1CH audio input + 1CH built-in microphone | G.711A/U
14. Storage: Micro SD up to 512GB, network remote storage, ANR
15. Network: RJ45 10/100BASE-T | ONVIF | API & SDK | up to 10 simultaneous users
16. Security: Video/firmware/config encryption, HTTPS, 802.1X, IP filtering, login lock

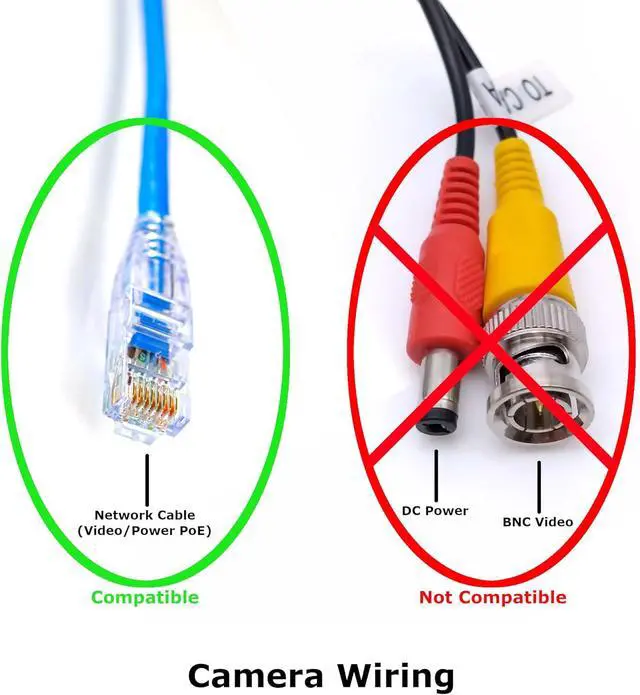

17. Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <7W
18. Ingress Protection: IP67
19. Operating Conditions: 30°C to 60°C (22°F to 140°F), <95% RH non-condensing
20. Dimensions: Ø94.6 × 82.8 mm | Weight: approx. 0.456 kg (1.01 lbs)
21. Installation: Ceiling or wall mount | Pan 0360°, Tilt 075°, Rotation 0360°
