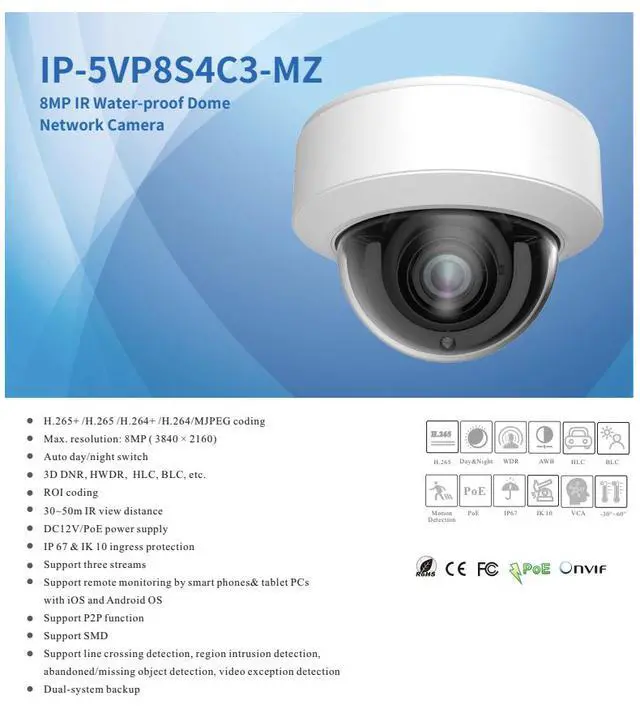

ENS Titanium IP-5VP8S4C3-MZ 8MP 4K Vandal Dome IP Camera, 2.8-12mm Motorized Varifocal Zoom, IR 164ft, 120dB WDR, Human Vehicle Detection, IP67 IK10 Vandal Proof, PoE

Overview

The ENS Titanium IP-5VP8S4C3-MZ is an 8MP (4K) vandal-resistant dome camera with a 2.812 mm motorized varifocal lens meaning the field of view and focus can be adjusted remotely from a browser or app after installation, with no ladder and no reopening the housing. That flexibility matters: at 2.8 mm the camera covers a wide 97° scene, and at 12 mm it reaches far enough to detect activity at 277 m (908 ft) and identify a person at 28 m (91 ft). Infrared illumination reaches 3050 m with a true ICR day/night filter for accurate color by day and clean monochrome at night. A 120 dB HWDR handles harsh backlighting, supported by HLC, BLC, and 3D DNR. Smart analytics classify targets as human, motor vehicle, or non-motor vehicle to cut false alarms, alongside abandoned and missing object detection. The dome housing carries both an IP67 weather rating and an IK10 impact rating the highest in the standard making it suited to schools, transit stops, parking structures, correctional facilities, and any location where tampering or vandalism is a real concern. H.265+ across three streams, micro SD to 256GB with ANR, a 30°C to 60°C range, and PoE or 12V DC power complete it.

Key Features

1. 2.812 mm Motorized Varifocal Adjust zoom and focus remotely from your browser or app; no ladder, no reopening the dome after install.
2. 8MP 4K Resolution 3840 × 2160 detail, with the option to run 4MP or 1080P at 30fps when frame rate matters more.
3. IK10 Vandal Resistant The highest impact rating in the standard, built for schools, transit, parking garages, and exposed public areas.
4. IP67 Weatherproof Fully sealed against dust and water for outdoor installation.
5. Long-Range Zoom Reach Detects activity at up to 277 m (908 ft) and identifies at 28 m (91 ft) at full telephoto.
6. IR to 3050 m (98164 ft) True ICR day/night switching for accurate color by day, clean monochrome at night.
7. 120 dB HWDR Balances harsh backlighting at entrances, garages, and windows.
8. Smart Classification Line crossing and region intrusion detection distinguishing human, motor vehicle, and non-motor vehicle to reduce false alerts.
9. Abandoned & Missing Object Detection Alerts on packages left behind or equipment removed.
10. DC Auto Iris Adapts to changing light levels for consistent exposure.
11. 256GB Edge Storage with ANR Recording continues through network outages, then backfills automatically.
12. Built-In Microphone Plus a separate 1-channel audio input.

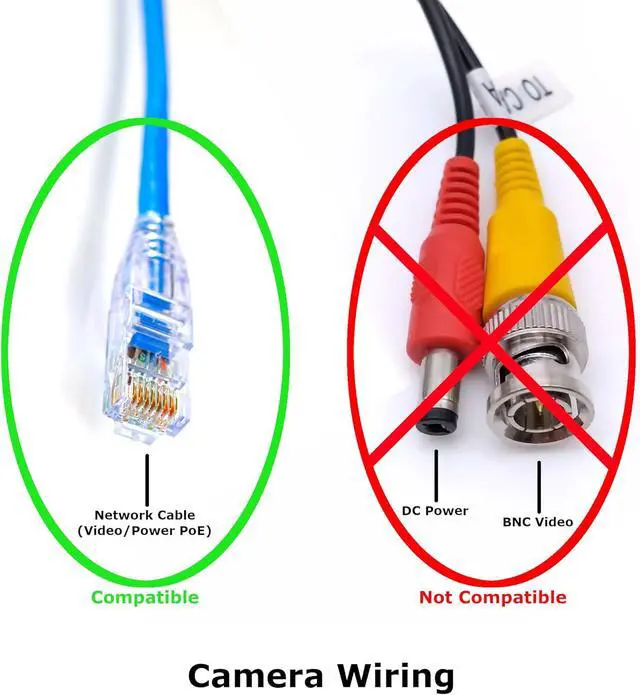

13. Simple Install PoE (802.3af) or 12V DC, under 10.5W, ONVIF compatible, P2P remote viewing on iOS and Android.

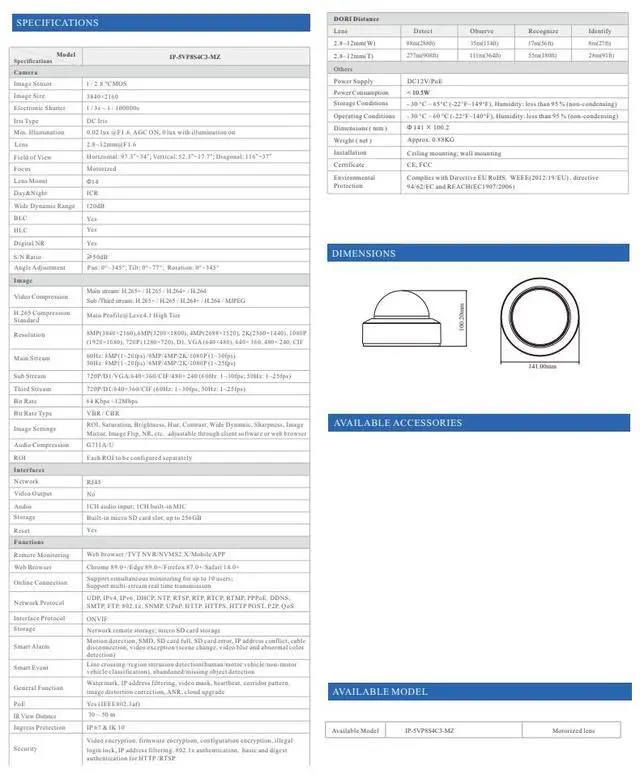

Specifications

1. Model: IP-5VP8S4C3-MZ | Type: Vandal Dome, IP/Network
2. Resolution: 8MP (3840 × 2160) | Frame Rate: 120fps at 8MP; up to 30fps at 6MP/4MP/2K/1080P
3. Image Sensor: 1/2.8" CMOS | S/N Ratio: 50 dB
4. Lens: 2.812 mm @ F1.6 motorized varifocal, Ø14 mount | DC iris
5. Field of View: 97.3°34° horizontal, 52.3°17.7° vertical, 116°37° diagonal
6. Min. Illumination: 0.02 lux @ F1.6 (AGC on); 0 lux with IR on
7. IR Range: 3050 m (98164 ft) | Day/Night: ICR auto switch
8. WDR: 120 dB | BLC, HLC, 3D DNR, ROI, image distortion correction
9. Electronic Shutter: 1/3 s to 1/100,000 s
10. Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps12 Mbps
11. Streams: 3 (main + sub + third)
12. Analytics: Line crossing, region intrusion (human / motor vehicle / non-motor vehicle classification), abandoned & missing object detection, SMD, video exception (scene change, blur, abnormal color)
13. DORI (wide, 2.8mm): Detect 88 m (288 ft) | Observe 35 m (114 ft) | Recognize 17 m (56 ft) | Identify 8 m (27 ft)
14. DORI (tele, 12mm): Detect 277 m (908 ft) | Observe 111 m (364 ft) | Recognize 55 m (180 ft) | Identify 28 m (91 ft)
15. Audio: 1CH input + 1CH built-in microphone | G.711A/U
16. Storage: Micro SD up to 256GB, network remote storage, ANR
17. Network: RJ45 | ONVIF | up to 10 simultaneous users
18. Security: HTTPS, video/firmware/config encryption, 802.1X, IP filtering, login lock
19. Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <10.5W
20. Ingress Protection: IP67 + IK10
21. Operating Conditions: 30°C to 60°C (22°F to 140°F), <95% RH non-condensing
22. Dimensions: Ø141 × 100.2 mm | Weight: approx. 0.88 kg (1.94 lbs)
23. Installation: Ceiling or wall mount | Pan 0345°, Tilt 077°, Rotation 0345°
