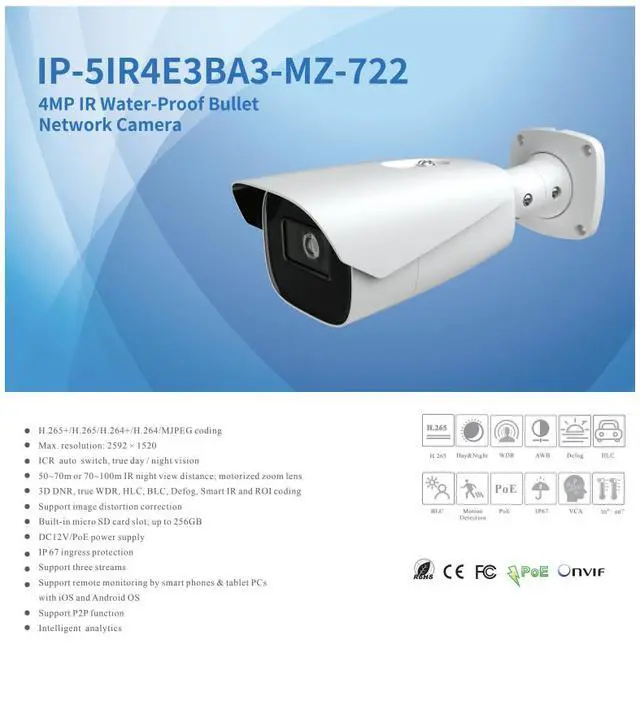

ENS Titanium IP-5IR4E3BA3-MZ-722 4MP Bullet IP Camera, 7-22mm Motorized Zoom, Long Range IR 328ft, 120dB True WDR, Defog, Face Capture, Video Metadata, Heat Map, IP67, PoE

Overview

The ENS Titanium IP-5IR4E3BA3-MZ-722 is a 4MP long-range bullet network camera with a 722 mm motorized zoom lens, built for perimeters, parking lots, yards, and long approaches where a wide-angle camera simply can't resolve enough detail. Zoom and focus are adjusted remotely from a browser or app no ladder, no reopening the housing and the lens narrows from a 43° field of view at wide to 18° at full telephoto. Infrared illumination reaches 70100 m (230328 ft) with Smart IR to prevent close-range overexposure, backed by true ICR day/night switching. Image processing is the strongest in the ENS lineup: 120 dB true WDR, HLC, BLC, 3D DNR, defog, and image distortion correction. Onboard intelligence goes well beyond motion detection, adding loitering detection, illegal parking detection, heat mapping, line and area target counting, face detection and capture, and a video metadata engine that simultaneously classifies human bodies, motor vehicles, and non-motor vehicles while extracting 13 human, 5 vehicle, and 1 non-motor vehicle attributes turning footage into searchable data. A CVBS BNC output aids on-site aiming during installation, and 1-channel alarm input and output allow integration with sirens, strobes, and access control. IP67 rated, 30°C to 60°C, PoE or 12V DC.

Key Features

1. 722 mm Motorized Zoom Adjust field of view and focus remotely after installation; 43° wide to 18° telephoto.
2. Long-Range IR, 70100 m (230328 ft) Smart IR modulates intensity to prevent washed-out subjects at close range.
3. 120 dB True WDR Genuine wide dynamic range for harsh backlighting at gates, entrances, and open lots.
4. Defog Improves visibility in fog, haze, and rain; not available on most cameras in this class.
5. Video Metadata Search Simultaneously classifies people, motor vehicles, and non-motor vehicles, extracting 13 human, 5 vehicle, and 1 non-motor vehicle attributes for rapid forensic search.
6. Face Detection & Capture Automatically snapshots faces for faster review.
7. Advanced Analytics Loitering detection and illegal parking detection alongside line crossing, region intrusion/entrance/exit, and abandoned/missing object detection.
8. Heat Map & Target Counting Line and area counting plus heat mapping for traffic and occupancy analysis.
9. Alarm Input & Output 1CH each for sirens, strobes, gates, or access control integration.
10. CVBS Test Output BNC video output simplifies aiming and focusing during installation.
11. 256GB Edge Storage with ANR Recording continues through network outages, then backfills automatically.
12. Full Audio 1CH input, 1CH output, and built-in microphone.
13. Enterprise Security HTTPS, video/firmware/config encryption, 802.1X, IP filtering, and illegal login lock.
14. Rugged Build IP67 rated, operating from 30°C to 60°C (22°F to 140°F), PoE (802.3af) or 12V DC under 12.5W.

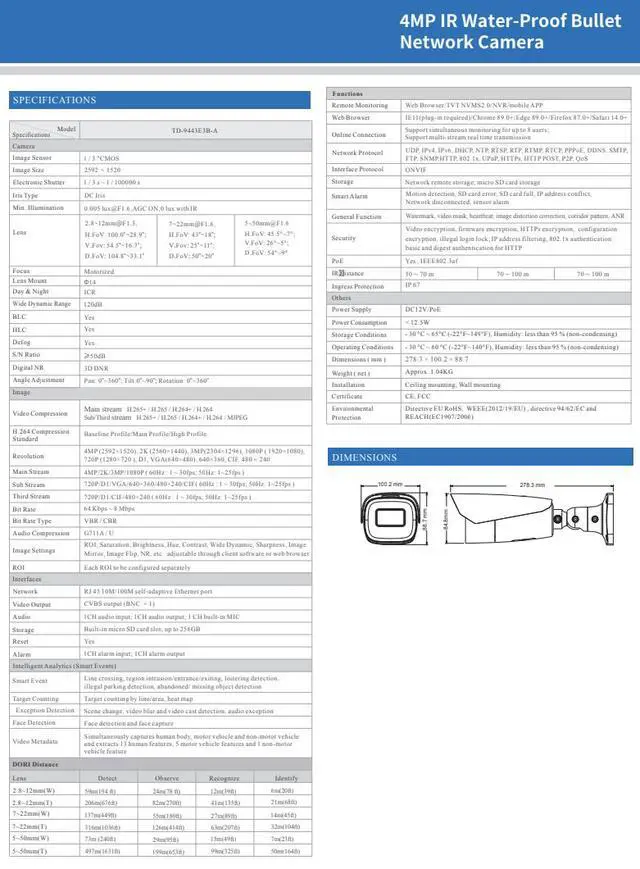

Specifications

1. Model: IP-5IR4E3BA3-MZ-722 | Type: Motorized Zoom Bullet, IP/Network
2. Resolution: 4MP (2592 × 1520) | Frame Rate: up to 30fps (60Hz) / 25fps (50Hz)
3. Image Sensor: 1/3" CMOS | S/N Ratio: 50 dB
4. Lens: 722 mm @ F1.6 motorized zoom, Ø14 mount | DC iris
5. Field of View: 43°18° horizontal, 25°11° vertical, 50°20° diagonal
6. Min. Illumination: 0.005 lux @ F1.6 (AGC on); 0 lux with IR
7. IR Range: 70100 m (230328 ft) | Smart IR | Day/Night: ICR auto switch
8. WDR: 120 dB true WDR | BLC, HLC, 3D DNR, Defog, ROI, image distortion correction, corridor mode
9. Electronic Shutter: 1/3 s to 1/100,000 s
10. Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps8 Mbps | VBR/CBR
11. Streams: 3 (main + sub + third)
12. Analytics: Line crossing, region intrusion/entrance/exit, loitering detection, illegal parking detection, abandoned & missing object detection
13. Face: Face detection and face capture
14. Metadata: Human body, motor vehicle, non-motor vehicle 13 human / 5 motor vehicle / 1 non-motor vehicle attributes
15. Statistics: Target counting by line and area, heat map
16. Audio: 1CH input + 1CH output + 1CH built-in microphone | G.711A/U
17. Alarm: 1CH input + 1CH output
18. Video Output: CVBS (BNC × 1) for installation
19. Storage: Micro SD up to 256GB, network remote storage, ANR
20. Network: RJ45 10/100 self-adaptive | ONVIF | up to 8 simultaneous users
21. Security: HTTPS, video/firmware/config encryption, 802.1X, IP filtering, login lock, watermark, video mask
22. Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <12.5W
23. Ingress Protection: IP67
24. Operating Conditions: 30°C to 60°C (22°F to 140°F), <95% RH non-condensing
25. Dimensions: 278.3 × 100.2 × 88.7 mm | Weight: approx. 1.04 kg (2.29 lbs)
26. Installation: Ceiling or wall mount | Pan 0360°, Tilt 090°, Rotation 0360°
