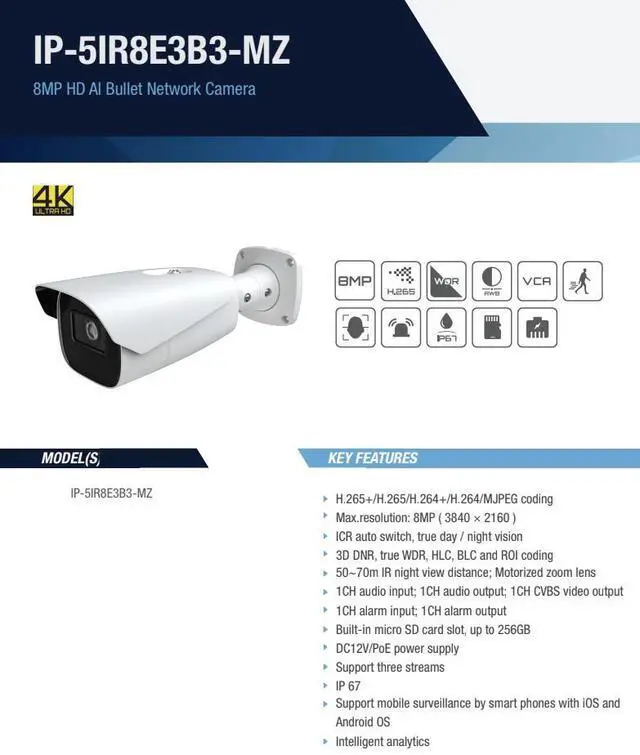

ENS Titanium IP-5IR8E3B3-MZ 8MP 4K Bullet IP Camera, 2.8-12mm Motorized Zoom, 30fps at 4K, IR 230ft, 120dB True WDR, Human Vehicle Classification, Face Capture, Alarm I/O, IP67, PoE

Overview

The ENS Titanium IP-5IR8E3B3-MZ is an 8MP (4K) bullet network camera with a 2.812 mm motorized zoom lens and unlike most 8MP cameras, it delivers full 4K at 30fps rather than dropping to 20fps. Zoom and focus adjust remotely from a browser or app, with no ladder and no reopening the housing, letting the field of view scale from a wide 96° down to a 32° telephoto view after installation. A 1/2.8" progressive-scan CMOS sensor with true 120 dB WDR, HLC, BLC, and 3D DNR handles harsh backlighting, and ICR day/night switching pairs with infrared illumination out to 5070 m (164230 ft). Onboard perimeter protection classifies targets as human, motor vehicle, or non-motor vehicle to suppress false alarms, alongside face detection and capture, line-crossing counting, and video exception detection. A high frame rate mode pushes 1080P and 720P to 60fps for fast-motion scenes. Practical install features round it out: a CVBS BNC output for on-site aiming, 1-channel alarm input and output for sirens and access control, audio in and out, and micro SD storage to 256GB. IP67 rated, 30°C to 60°C, powered over PoE or 12V DC at a maximum 12W.

Key Features

1. 8MP 4K at Full 30fps 3840 × 2160 without the frame-rate penalty most 8MP cameras carry, for smooth motion at maximum resolution.
2. 2.812 mm Motorized Zoom Adjust field of view and focus remotely after installation; 96° wide down to 32° telephoto.
3. High Frame Rate Mode 1080P and 720P at up to 60fps for fast-moving subjects.
4. 120 dB True WDR Genuine wide dynamic range for entrances, gates, and scenes with strong backlighting.
5. IR to 5070 m (164230 ft) True ICR day/night switching for accurate daytime color and clean monochrome at night.
6. Human & Vehicle Classification Line crossing and intrusion detection distinguishing human, motor vehicle, and non-motor vehicle to cut false alerts.
7. Face Detection & Capture Automatically snapshots faces for faster forensic review.
8. Line-Crossing Counting Separate human and vehicle counts for traffic and occupancy data.
9. Alarm Input & Output 1CH each for integrating sirens, strobes, gates, or access control.
10. CVBS Test Output BNC video output simplifies aiming and focusing during installation.
11. Two-Way Audio Ready 1CH audio input and 1CH audio output.
12. 256GB Edge Storage Micro SD slot plus network remote storage.
13. Rugged Build IP67 rated metal and plastic housing, operating from 30°C to 60°C, PoE (802.3af) or 12V DC at max 12W.

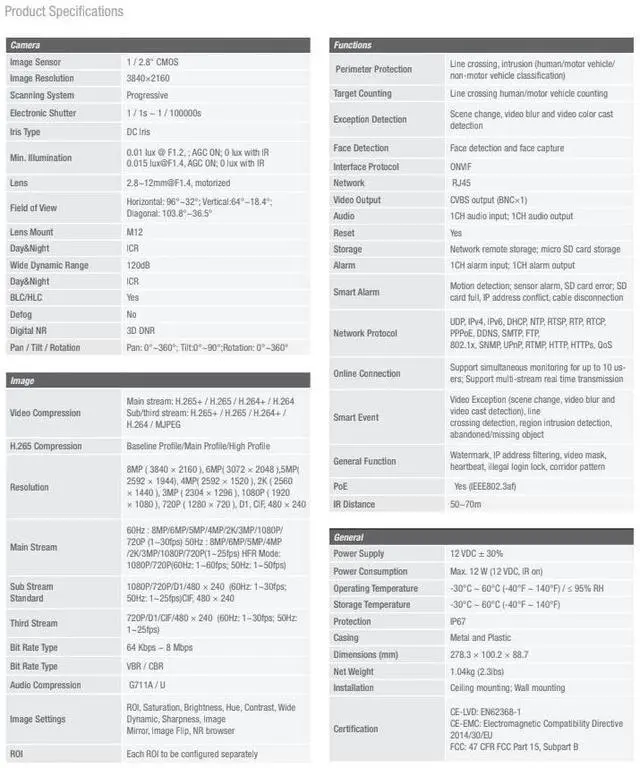

Specifications

1. Model: IP-5IR8E3B3-MZ | Type: Motorized Zoom Bullet, IP/Network
2. Resolution: 8MP (3840 × 2160) | Scanning: Progressive
3. Frame Rate: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P at 130fps (60Hz) / 125fps (50Hz); HFR mode 1080P/720P at up to 60fps
4. Image Sensor: 1/2.8" CMOS
5. Lens: 2.812 mm @ F1.4 motorized zoom, M12 mount | DC iris
6. Field of View: 96°32° horizontal, 64°18.4° vertical, 103.8°36.5° diagonal
7. Min. Illumination: 0.015 lux @ F1.4 (AGC on); 0 lux with IR see note
8. IR Range: 5070 m (164230 ft) | Day/Night: ICR auto switch
9. WDR: 120 dB true WDR | BLC, HLC, 3D DNR, ROI, corridor mode | Defog: No
10. Electronic Shutter: 1/1 s to 1/100,000 s
11. Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps8 Mbps | VBR/CBR
12. Streams: 3 (main + sub + third)
13. Analytics: Line crossing and region intrusion (human / motor vehicle / non-motor vehicle classification), abandoned & missing object detection, video exception (scene change, blur, color cast)
14. Face: Face detection and face capture
15. Counting: Line-crossing human and motor vehicle counting
16. Audio: 1CH input + 1CH output | G.711A/U
17. Alarm: 1CH input + 1CH output | Smart alarms: motion, sensor, SD error, SD full, IP conflict, cable disconnect
18. Video Output: CVBS (BNC × 1) for installation
19. Storage: Micro SD up to 256GB, network remote storage
20. Network: RJ45 | ONVIF | up to 10 simultaneous users
21. Security: HTTPS, 802.1X, IP filtering, watermark, video mask, illegal login lock
22. Power: PoE (IEEE 802.3af) or 12V DC | Consumption: max 12W (12V DC, IR on)
23. Ingress Protection: IP67 | Casing: Metal and plastic
24. Operating Temperature: 30°C to 60°C (22°F to 140°F), 95% RH
25. Dimensions: 278.3 × 100.2 × 88.7 mm | Weight: 1.04 kg (2.3 lbs)
26. Installation: Ceiling or wall mount | Pan 0360°, Tilt 090°, Rotation 0360°
