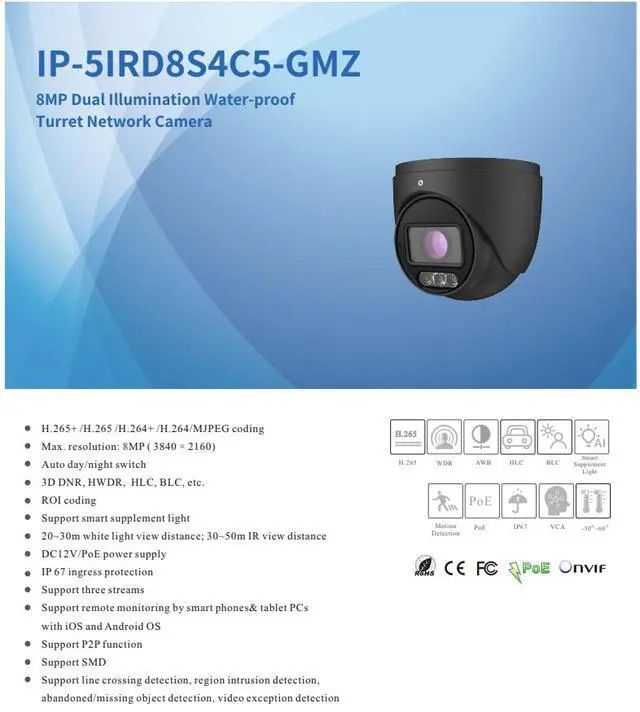

ENS Titanium IP-5IRD8S4C5-GMZ 8MP 4K Dual Illumination IP Turret Camera, 2.8-12mm Motorized Zoom, 164ft IR & 98ft White Light, Human/Vehicle Detection, Built-in Mic, IP67, PoE

Overview

The ENS Titanium IP-5IRD8S4C5-GMZ is an 8MP (4K) turret network camera combining a 2.812 mm motorized zoom lens with dual illumination, giving you both range and a choice of how to see in the dark. Infrared reaches 3050 m for discreet monochrome monitoring, while white light reaches 2030 m for full-color detail, and smart supplement light selects between them automatically based on conditions. The motorized lens adjusts remotely from a browser or app, scaling the field of view from a wide 97.3° down to 34° telephoto without a ladder or reopening the housing enough reach to detect activity at 277 m (908 ft) and identify a person at 28 m (91 ft) at full zoom, all in a low-profile turret body that draws less attention than a bullet. Image quality is backed by 120 dB HWDR, HLC, BLC, 3D DNR, and image distortion correction. Smart analytics classify targets as human, motor vehicle, or non-motor vehicle to suppress false alarms from animals and weather, with abandoned and missing object detection and SMD. Micro SD storage to 256GB, IP67 weatherproofing, a -30°C to 60°C range, and PoE or 12V DC power under 12W.

Key Features

8MP 4K Resolution 3840 × 2160 detail, with the option to run 6MP, 4MP, 2K, or 1080P at a full 30fps when frame rate matters more.

2.812 mm Motorized Zoom Adjust field of view and focus remotely after installation; 97.3° wide down to 34° telephoto.

Dual Illumination Infrared to 3050 m (98164 ft) for covert night monitoring, or white light to 2030 m (6598 ft) for full-color detail.

Smart Supplement Light Automatically selects IR or white light based on scene conditions.

Long Zoom Reach Detects activity at up to 277 m (908 ft) and identifies at 28 m (91 ft) at full telephoto.

Low-Profile Turret Housing 3-axis adjustment with 080° tilt for ceiling or wall mounting, in a form factor that resists tampering better than a bullet.

120 dB HWDR Balances harsh backlighting at gates, entrances, and open areas.

Smart Classification Line crossing and region intrusion detection distinguishing human, motor vehicle, and non-motor vehicle to cut false alerts.

Abandoned & Missing Object Detection Alerts on packages left behind or equipment removed from a scene.

256GB Edge Storage Micro SD recording plus network remote storage.

Built-In Microphone Plus a separate 1-channel audio input.

Rugged Build IP67 rated, operating from -30°C to 60°C (-22°F to 140°F), PoE (802.3af) or 12V DC under 12W.

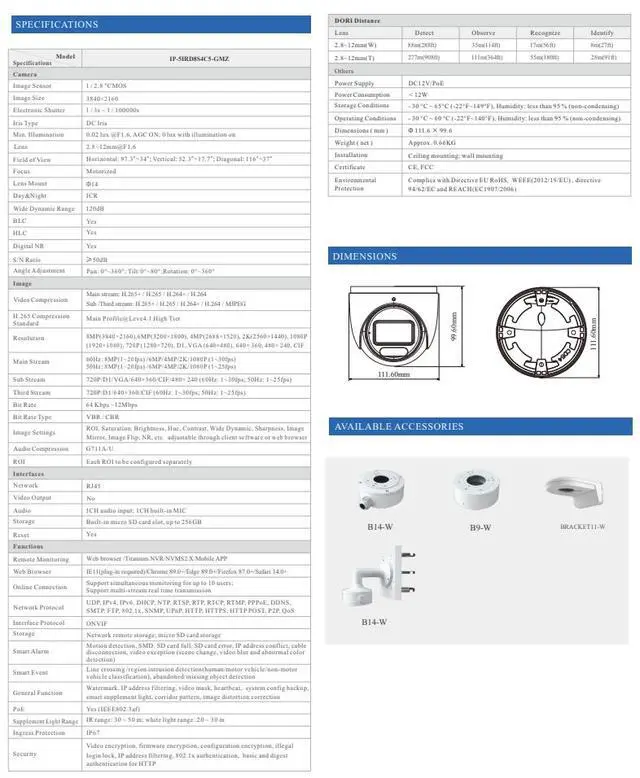

Specifications

Model: IP-5IRD8S4C5-GMZ | Type: Motorized Zoom Turret, IP/Network, Dual Illumination

Resolution: 8MP (3840 × 2160) | Frame Rate: 120fps at 8MP; up to 30fps at 6MP/4MP/2K/1080P

Image Sensor: 1/2.8" CMOS | S/N Ratio: 50 dB

Lens: 2.812 mm @ F1.6 motorized zoom, Ø14 mount | DC iris | Motorized focus

Field of View: 97.3°34° horizontal, 52.3°17.7° vertical, 116°37° diagonal

Min. Illumination: 0.02 lux @ F1.6 (AGC on); 0 lux with illumination on

Illumination: IR 3050 m (98164 ft) + white light 2030 m (6598 ft), smart supplement light

Day/Night: ICR auto switch

WDR: 120 dB HWDR | BLC, HLC, 3D DNR, ROI, image distortion correction, corridor mode

Electronic Shutter: 1/3 s to 1/100,000 s

Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps12 Mbps | VBR/CBR

Streams: 3 (main + sub + third)

Analytics: Line crossing, region intrusion (human / motor vehicle / non-motor vehicle classification), abandoned & missing object detection, SMD, video exception (scene change, blur, abnormal color)

DORI (wide, 2.8mm): Detect 88 m (288 ft) | Observe 35 m (114 ft) | Recognize 17 m (56 ft) | Identify 8 m (27 ft)

DORI (tele, 12mm): Detect 277 m (908 ft) | Observe 111 m (364 ft) | Recognize 55 m (180 ft) | Identify 28 m (91 ft)

Audio: 1CH input + 1CH built-in microphone | G.711A/U

Storage: Micro SD up to 256GB, network remote storage

Network: RJ45 | ONVIF | up to 10 simultaneous users

Security: Video/firmware/config encryption, 802.1X, IP filtering, login lock, HTTP authentication, watermark, video mask

Other: System config backup, heartbeat

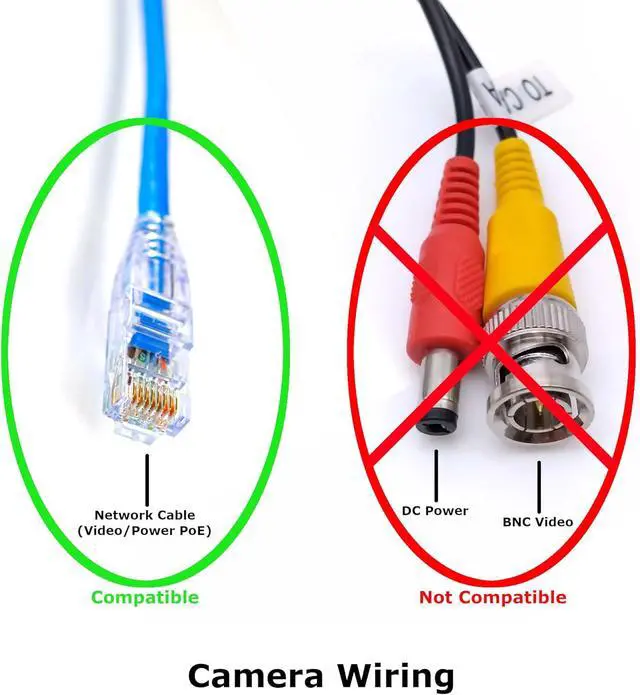

Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <12W

Ingress Protection: IP67

Operating Conditions: -30°C to 60°C (-22°F to 140°F), <95% RH non-condensing

Dimensions: Ø111.6 × 99.6 mm | Weight: approx. 0.66 kg (1.46 lbs)

Installation: Ceiling or wall mount | Pan 0360°, Tilt 080°, Rotation 0360°
