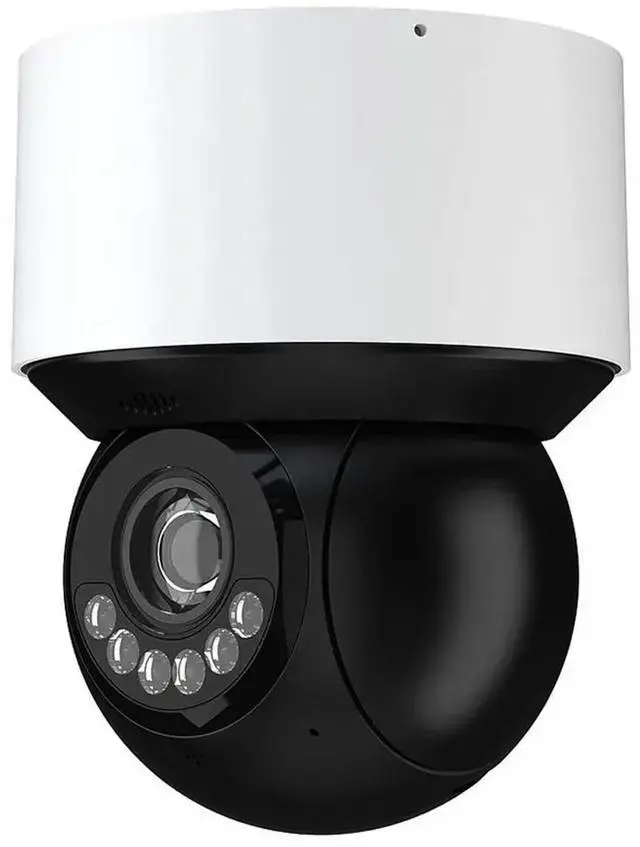

ENS Titanium IP-5PT4IE3N8-4X 4MP Active Deterrence Mini PTZ Camera, 4x Optical Zoom, AI Auto Tracking, Human/Vehicle Detection, White Light & Voice Alerts, Built-in Mic & Speaker, IP66 IK10, PoE+

Overview

The ENS Titanium IP-5PT4IE3N8-4X is a 4MP mini PTZ built around active deterrence rather than passive recording. When its AI engine detects a person or vehicle crossing a perimeter, the camera tracks the target, zooms to center it in frame, triggers a strong white light, and plays a warning message from the built-in speaker audible out to 30 m then returns to patrol once the intruder leaves or the timer expires. Because deterrence mode floods the scene with white light, the footage stays in full color instead of black-and-white, which holds up far better as evidence. During normal patrol the PTZ stays silent and dark, so it doesn't disturb neighbors or staff.

A 1/2.7" BSI + NIR progressive scan sensor delivers 2560 × 1440 at a full 30fps, and the 4x optical autofocus lens scales from 97° wide to 31° telephoto in about 1.6 seconds enough reach to detect at 206.7 m (678 ft) and identify a person at 20.7 m (68 ft) at full zoom. Pan runs 0355° at up to 80°/s with 360 presets, 8 cruises, 4 traces, and 3D positioning. Smart H.265+ cuts bandwidth roughly in half against H.264 with no visible loss.

The aluminum-alloy body carries IP66 and IK10 ratings with 6000V lightning and surge protection, operating from -40°C to 55°C. Alarm input and output, a microSD slot to 256GB, and PoE+ or 12V DC power make it a straightforward drop-in. Suggested mounting height is 2.87 m, which suits schools, hospitals, residential communities, small parks, pools, factories, and feedlots.

Key Features

Active Deterrence That Actually Intervenes White light strobe plus 10+ selectable pre-recorded voice warnings trigger automatically on intrusion, audible to 30 m.

AI Auto Tracking Locks onto and follows a detected human or vehicle, zooming to keep the target centered, then resumes patrol.

Human / Vehicle Classification Filters out animals, foliage, and weather so alerts mean something.

4MP at 30fps 2560 × 1440 full-rate video; smart H.265+ reduces bandwidth up to 50% versus H.264.

4x Optical Zoom Autofocus 2.812 mm, 97° wide to 31° telephoto, full sweep in about 1.6 seconds.

Full-Color Night Evidence White LEDs let the camera capture color images instead of monochrome under deterrence mode.

Long Reach Detects at up to 206.7 m (678 ft) and identifies at 20.7 m (68 ft) at full telephoto.

Comprehensive PTZ Control 0355° pan at up to 80°/s, -5° to 90° tilt, 360 presets, 8 cruises, 4 traces, 3D positioning, power-off memory.

Built-In Mic & Speaker One-way audio out to 30 m, voice recording to 8 m, with external audio in/out available.

Alarm I/O 1-channel dry contact input and 1-channel output with linkage to presets, recording, FTP, and email.

Starlight Low Light 0.01 lux color, 0.002 lux B/W, 0 lux with IR; smart IR with zoom-linked LED grouping.

Built to Survive IP66 water resistance, IK10 vandal resistance, aluminum alloy body, 6000V lightning protection, -40°C to 55°C.

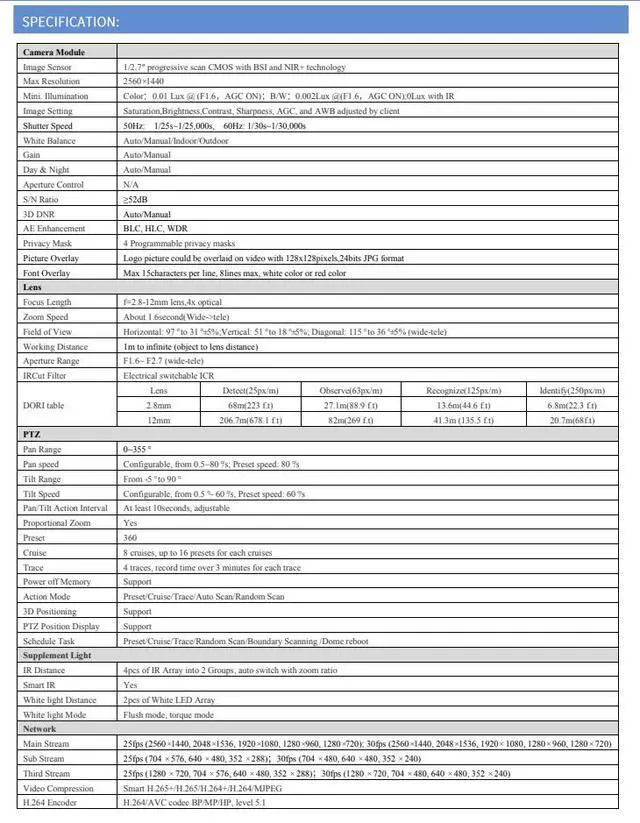

Specifications

Model: IP-5PT4IE3N8-4X | Type: 3" Mini PTZ, IP/Network, Active Deterrence

Resolution: 4MP (2560 × 1440) | Frame Rate: 30fps at 2560×1440 (60Hz); 25fps (50Hz)

Image Sensor: 1/2.7" progressive scan CMOS, BSI + NIR+ | S/N Ratio: 52 dB

Lens: 2.812 mm, 4x optical zoom, autofocus | Aperture F1.6F2.7 | Electrical ICR

Field of View: 97°31° horizontal, 51°18° vertical, 115°36° diagonal (±5%)

Min. Illumination: Color 0.01 lux @ F1.6 (AGC on) | B/W 0.002 lux @ F1.6 | 0 lux with IR

Supplement Light: 4 IR LEDs in 2 zoom-linked groups with Smart IR; 2 white LEDs (flush and torque modes)

Shutter Speed: 1/30 s to 1/30,000 s (60Hz); 1/25 s to 1/25,000 s (50Hz)

Image: BLC, HLC, WDR, 3D DNR, auto/manual white balance and gain, 4 privacy masks, logo and text overlay

Compression: Smart H.265+ / H.265 / H.264+ / H.264 / MJPEG | 64 Kbps16 Mbps

Streams: 3 (main + sub + third)

PTZ: Pan 0355° at 0.580°/s | Tilt -5° to 90° at 0.560°/s | 360 presets | 8 cruises (16 presets each) | 4 traces | 3D positioning | power-off memory

Analytics: Tripwire, bi-directional tripwire, illegal intrusion, region entrance/exiting, motion detection, video tampering, smart human/vehicle tracking, vehicle detection

Active Deterrence: White light strobe + 10 or more predefined voice clips on detection

DORI (wide, 2.8mm): Detect 68 m (223 ft) | Observe 27.1 m (89 ft) | Recognize 13.6 m (45 ft) | Identify 6.8 m (22 ft)

DORI (tele, 12mm): Detect 206.7 m (678 ft) | Observe 82 m (269 ft) | Recognize 41.3 m (136 ft) | Identify 20.7 m (68 ft)

Audio: 1CH mic input + 1CH line output | Built-in 4 2.5W speaker (30 m audible) | Built-in mic (8 m recording) | G.711 A/U | One-way talk

Alarm: 1CH dry contact input, 1CH output

Storage: Standalone microSD/TF chamber up to 256GB

Network: 1× RJ45 10M/100M with PoE+ | ONVIF, SDK, API | Up to 16 users, 3 permission levels

Security: HTTPS, 802.1X, IP filtering, user and MAC host authentication

Client: Titanium N9000 1.4.5, Titanium NVMS 2.0, third-party VMS, free iOS/Android apps

Power: PoE+ (IEEE 802.3at, Class 3) or DC 12V ±20% 2000mA | 3.3W average, 14.9W max day, 18.9W max night

Protection: IP66, IK10, 6000V lightning/surge/transient protection

Operating Conditions: -40°C to 55°C (-40°F to 131°F) IR off; -40°C to 40°C IR on | 90% RH

Housing: Aluminum alloy (ADC12) main body, polymer trim

Dimensions: 130 mm × 162 mm (H) | Weight: approx. 1.2 kg (2.65 lbs)
