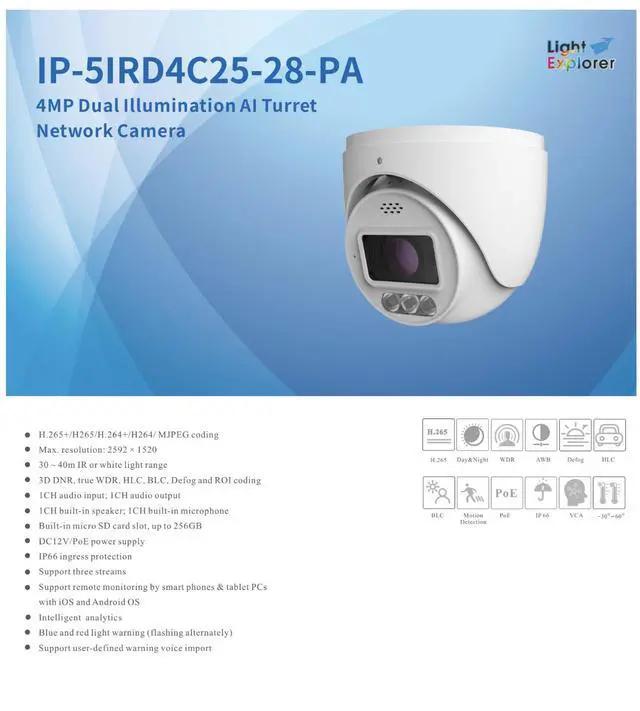

ENS Titanium IP-5IRD4C25-28-PA 4MP Active Deterrence AI Turret Camera, 2.8-12mm Motorized Zoom, 131ft IR & White Light, Red/Blue Strobe & Voice Alerts, Built-in Mic & Speaker, IP66, PoE

Overview

The ENS Titanium IP-5IRD4C25-28-PA is a 4MP AI turret that pairs a 2.812 mm motorized zoom lens with dual illumination and an active deterrence package built around alternating red and blue warning lights the same visual language as an emergency vehicle, and considerably harder for an intruder to ignore than a white strobe. A built-in speaker plays warning audio on trigger, and you can import your own custom voice messages rather than being stuck with generic factory clips.

Infrared and white light both reach 3040 m, letting you choose covert monochrome monitoring or full-color capture. The motorized lens adjusts remotely from a browser or app, scaling from 96° wide to 32° telephoto without a ladder enough reach to detect activity at 175.72 m (576 ft) and identify a person at 17.57 m (58 ft) at full zoom. Image quality is backed by 120 dB true WDR, HLC, BLC, 2D/3D DNR, defog, and image distortion correction, with 0.02 lux sensitivity at F1.4.

The analytics set runs deeper than most cameras in this class. Line crossing and region intrusion, entrance, and exiting detection all classify targets as human or vehicle to cut false alarms, with face detection and capture, abandoned and missing object detection, heat map, target counting, and crowd density detection on top. An HFR mode pushes 1080P and 720P to 60fps when you need to resolve fast movement. Alarm input and output, a microSD slot to 256GB, IP66 weatherproofing, a -30°C to 60°C range, and PoE or 12V DC power under 12W round it out.

Key Features

Red & Blue Alternating Strobe Emergency-style flashing warning lights make deterrence unmistakable, well beyond what a plain white strobe achieves.

Custom Voice Warnings Import your own recorded messages instead of relying on generic presets; plays through the built-in speaker.

4MP AI Detection 2592 × 1520 resolution with human/vehicle classification on line crossing and region intrusion, entrance, and exiting.

2.812 mm Motorized Zoom Adjust field of view and focus remotely after installation; 96° wide down to 32.33° telephoto.

Dual Illumination Infrared and white light both to 3040 m (98131 ft), for covert monitoring or full-color detail.

Long Zoom Reach Detects activity at up to 175.72 m (576 ft) and identifies at 17.57 m (58 ft) at full telephoto.

Advanced Analytics Suite Face detection and capture, abandoned & missing object detection, heat map, target counting, and crowd density detection.

60fps High Frame Rate Mode 1080P and 720P at up to 60fps for fast-motion scenes like gates and checkout lanes.

120 dB True WDR Plus defog and HLC for backlit entrances, headlights, haze, and rain.

Two-Way Audio Hardware Built-in microphone and speaker, plus 1CH audio input and 1CH audio output for external devices.

Alarm I/O 1-channel alarm input and 1-channel output for sensor integration.

Rugged Build IP66 rated, operating from -30°C to 60°C (-22°F to 140°F), PoE (802.3af) or 12V DC under 12W.

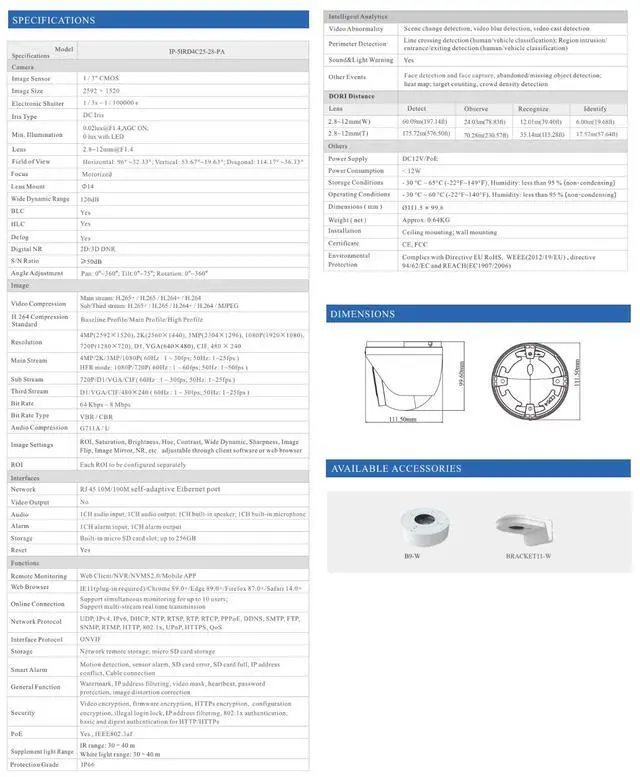

Specifications

Model: IP-5IRD4C25-28-PA | Type: Motorized Zoom Turret, IP/Network, Dual Illumination, Active Deterrence

Resolution: 4MP (2592 × 1520) | Frame Rate: 130fps at 4MP/2K/3MP/1080P; HFR mode 160fps at 1080P/720P

Image Sensor: 1/3" CMOS | S/N Ratio: 50 dB

Lens: 2.812 mm @ F1.4 motorized zoom, Ø14 mount | DC iris | Motorized focus

Field of View: 96°32.33° horizontal, 53.67°19.63° vertical, 114.17°36.33° diagonal

Min. Illumination: 0.02 lux @ F1.4 (AGC on); 0 lux with LED

Illumination: IR 3040 m (98131 ft) + white light 3040 m (98131 ft)

Deterrence: Alternating red and blue flashing warning lights; sound and light warning; user-defined warning voice import

Day/Night: Auto switch

WDR: 120 dB true WDR | BLC, HLC, 2D/3D DNR, Defog, ROI, image distortion correction

Electronic Shutter: 1/3 s to 1/100,000 s

Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps8 Mbps | VBR/CBR

Streams: 3 (main + sub + third)

Analytics: Line crossing, region intrusion/entrance/exiting (human/vehicle classification), face detection & capture, abandoned & missing object detection, heat map, target counting, crowd density, video abnormality (scene change, blur, cast)

DORI (wide, 2.8mm): Detect 60.09 m (197 ft) | Observe 24.03 m (79 ft) | Recognize 12.01 m (39 ft) | Identify 6.00 m (20 ft)

DORI (tele, 12mm): Detect 175.72 m (576 ft) | Observe 70.28 m (231 ft) | Recognize 35.14 m (115 ft) | Identify 17.57 m (58 ft)

Audio: 1CH input + 1CH output + built-in microphone + built-in speaker | G.711A/U

Alarm: 1CH alarm input, 1CH alarm output

Storage: Micro SD up to 256GB, network remote storage

Network: RJ45 10M/100M self-adaptive | ONVIF | up to 10 simultaneous users

Security: Video/firmware/HTTPS/config encryption, 802.1X, IP filtering, login lock, HTTP/HTTPS authentication, watermark, video mask, password protection

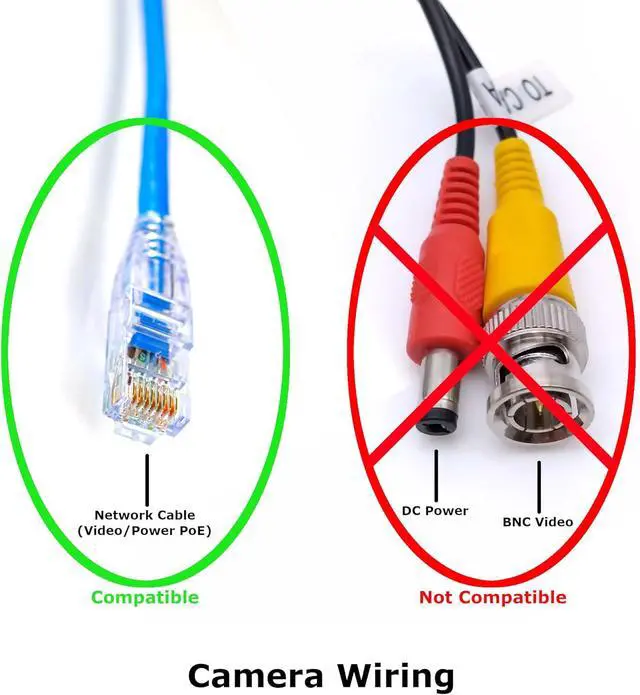

Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <12W

Ingress Protection: IP66

Operating Conditions: -30°C to 60°C (-22°F to 140°F), <95% RH non-condensing

Dimensions: Ø111.5 × 99.6 mm | Weight: approx. 0.64 kg (1.41 lbs)

Installation: Ceiling or wall mount | Pan 0360°, Tilt 075°, Rotation 0360°
