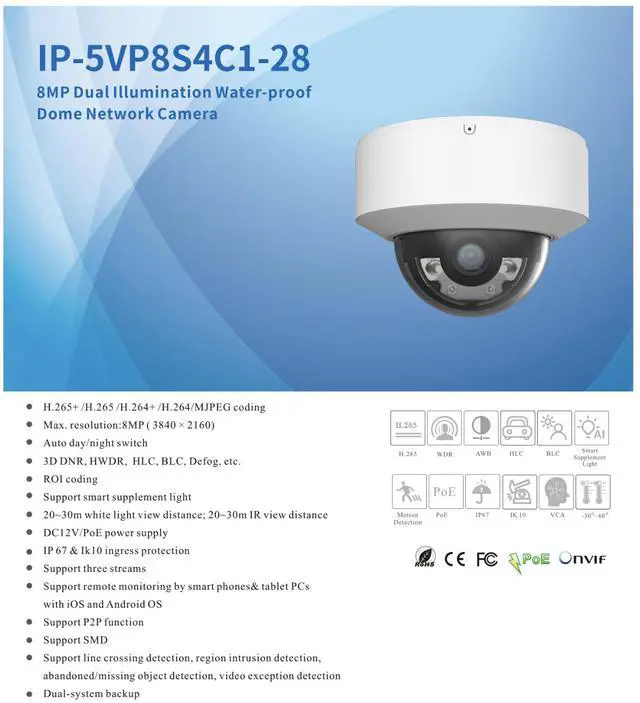

ENS Titanium IP-5VP8S4C1-28 8MP 4K Dual Illumination IP Vandal Dome Camera, 2.8mm Lens, 98ft IR & White Light, Smart Supplement Light, Human/Vehicle Detection, Built-in Mic, IP67 IK10, PoE

Overview

The ENS Titanium IP-5VP8S4C1-28 is an 8MP (4K) vandal-resistant dome combining a wide 2.8 mm fixed lens with dual illumination, giving you a choice of how to see after dark. Infrared reaches 2030 m for discreet monochrome monitoring, while white light reaches 2030 m for full-color detail, and smart supplement light selects between them automatically based on scene conditions. The 101° horizontal field of view covers wide entrances, lobbies, corridors, and parking areas from a single mounting point, detecting activity at 86 m (284 ft) and identifying a person at 8 m (27 ft).

The IK10-rated dome housing is the reason to choose this model over a turret: it withstands deliberate impact, making it the right pick for schools, transit areas, apartment corridors, retail entrances, and anywhere the camera itself is a target. IP67 sealing handles weather on top of that.

Image quality is backed by 120 dB HWDR, HLC, BLC, 3D DNR, defog, and image distortion correction, with 0.02 lux sensitivity at F1.6. Smart analytics classify targets as human, motor vehicle, or non-motor vehicle to suppress false alarms from animals and weather, with abandoned and missing object detection and SMD. Dual-system backup provides firmware redundancy so a failed update won't brick the camera in the field. Micro SD storage to 256GB with ANR, a -30°C to 60°C range, and PoE or 12V DC power under 7.5W.

Key Features

8MP 4K Resolution 3840 × 2160 detail, with the option to run 6MP, 4MP, 2K, or 1080P at a full 30fps when frame rate matters more.

IK10 Vandal Resistance Impact-rated dome housing for exposed, reachable, or high-traffic installs.

Dual Illumination Infrared to 2030 m (6598 ft) for covert night monitoring, or white light to 2030 m (6598 ft) for full-color detail.

Smart Supplement Light Automatically selects IR or white light based on scene conditions.

Wide 101° Coverage 2.8 mm F1.6 lens detects activity at up to 86 m (284 ft) and observes at 34 m (114 ft).

120 dB HWDR Balances harsh backlighting at entrances, glass frontages, and open areas.

Defog Improves visibility in fog, haze, and rain not available on most cameras in this class.

Smart Classification Line crossing and region intrusion detection distinguishing human, motor vehicle, and non-motor vehicle to cut false alerts.

Abandoned & Missing Object Detection Alerts on packages left behind or equipment removed from a scene.

Dual-System Backup Firmware redundancy protects against failed updates on remote installs.

256GB Edge Storage with ANR Recording continues through network outages, then backfills automatically.

Built-In Microphone Plus a separate 1-channel audio input.

Low Power Draw Under 7.5W on PoE (802.3af) or 12V DC, leaving headroom on loaded switches.

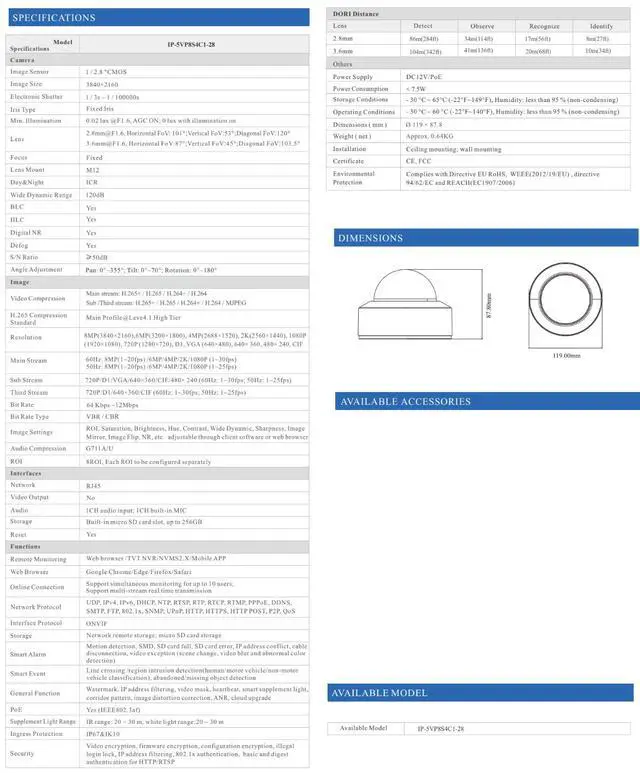

Specifications

Model: IP-5VP8S4C1-28 | Type: Vandal Dome, IP/Network, Dual Illumination

Resolution: 8MP (3840 × 2160) | Frame Rate: 120fps at 8MP; up to 30fps at 6MP/4MP/2K/1080P

Image Sensor: 1/2.8" CMOS | S/N Ratio: 50 dB

Lens: 2.8 mm @ F1.6 fixed, M12 mount | Fixed iris | Fixed focus

Field of View: 101° horizontal, 53° vertical, 120° diagonal

Min. Illumination: 0.02 lux @ F1.6 (AGC on); 0 lux with illumination on

Illumination: IR 2030 m (6598 ft) + white light 2030 m (6598 ft), smart supplement light

Day/Night: ICR auto switch

WDR: 120 dB HWDR | BLC, HLC, 3D DNR, Defog, ROI (8 zones), image distortion correction, corridor mode

Electronic Shutter: 1/3 s to 1/100,000 s

Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps12 Mbps | VBR/CBR

Streams: 3 (main + sub + third)

Analytics: Line crossing, region intrusion (human / motor vehicle / non-motor vehicle classification), abandoned & missing object detection, SMD, video exception (scene change, blur, abnormal color)

DORI (2.8mm): Detect 86 m (284 ft) | Observe 34 m (114 ft) | Recognize 17 m (56 ft) | Identify 8 m (27 ft)

Audio: 1CH input + 1CH built-in microphone | G.711A/U

Storage: Micro SD up to 256GB, network remote storage, ANR

Network: RJ45 | ONVIF | up to 10 simultaneous users

Security: Video/firmware/config encryption, 802.1X, IP filtering, login lock, HTTP/RTSP authentication, watermark, video mask

Other: Dual-system backup, cloud upgrade, heartbeat

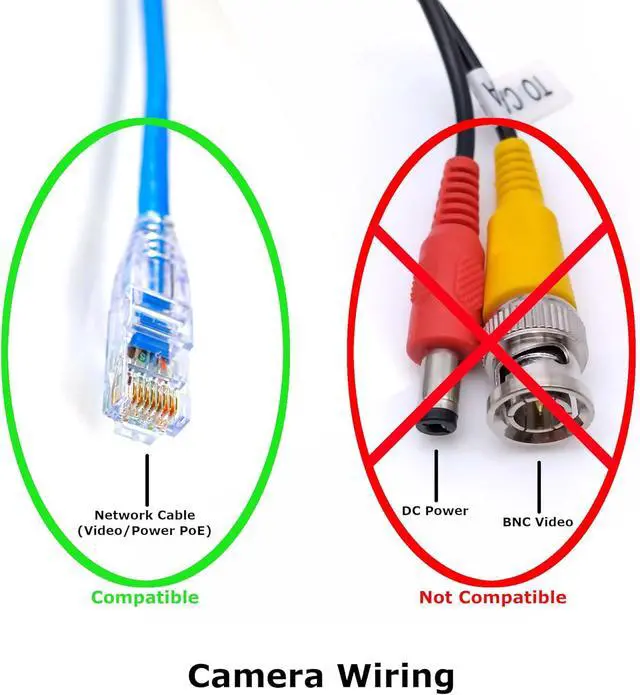

Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <7.5W

Ingress Protection: IP67 & IK10

Operating Conditions: -30°C to 60°C (-22°F to 140°F), <95% RH non-condensing

Dimensions: Ø119 × 87.8 mm | Weight: approx. 0.64 kg (1.41 lbs)

Installation: Ceiling or wall mount | Pan 0355°, Tilt 070°, Rotation 0180°
