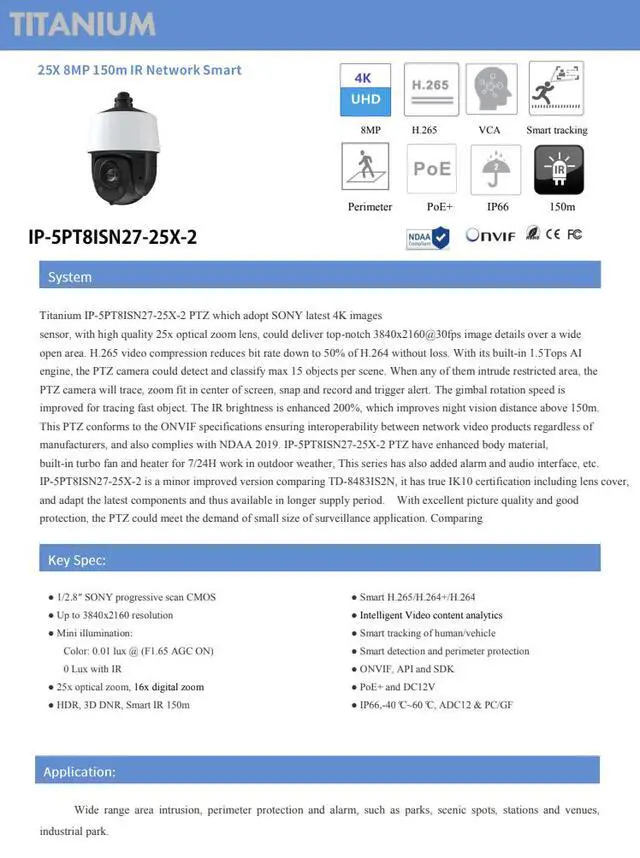

ENS Titanium IP-5PT8ISN27-25X-2 8MP 4K PTZ Camera, 25x Optical Zoom, Sony Sensor, 492ft Smart IR, AI Auto Tracking, Human/Vehicle Detection, Heater & Fan, IP66 IK10, PoE+

Overview

The ENS Titanium IP-5PT8ISN27-25X-2 is an 8MP outdoor PTZ built for wide-area perimeter protection, pairing a Sony 4K sensor with a 25x optical zoom lens to deliver 3840 × 2160 at a full 30fps across large open sites. A built-in 1.5 TOPS AI engine detects and classifies up to 15 objects in a single scene. When one enters a restricted area, the camera traces it, zooms to center it in frame, captures a snapshot, records, and triggers an alert with gimbal speeds tuned to keep pace with fast-moving targets.

Night performance is where this model separates itself. IR brightness is boosted 200% over the previous generation, pushing usable night vision past 150 m (492 ft) through a dual-stack LED array with Smart IR to prevent close-range washout. The 4.8120 mm lens scales from 57.6° wide to 2.4° telephoto in about 3.6 seconds, with 3D positioning, 360 presets, 8 cruises, and 4 traces for structured patrol coverage.

The chassis is built for continuous outdoor duty: aluminum alloy body with an integrated turbo fan and heater for operation from -40°C to 60°C, 6000V lightning and surge protection, IP66 sealing, and a water-removal function that spins off droplets from the window. This revision carries true IK10 certification inclusive of the glass window not the more common rating that exempts it and uses current-generation components for a longer supply window. Alarm input and output, audio in and out, a microSD slot to 256GB, and PoE+ or 12V DC power complete the package.

Well suited to parks, scenic areas, transit stations, venues, and industrial parks where a single camera needs to cover ground that would otherwise take a dozen fixed units.

Key Features

8MP 4K at 30fps Sony 1/2.8" progressive scan CMOS delivering 3840 × 2160 full-rate video; smart H.265+ cuts bandwidth up to 50% versus H.264.

25x Optical Zoom 4.8120 mm, 57.6° wide to 2.4° telephoto, plus 16x digital zoom; full sweep in about 3.6 seconds.

1.5 TOPS AI Engine Detects and classifies up to 15 objects per scene, with face detection supporting 1517 faces simultaneously.

Smart Auto Tracking Locks onto and follows a detected human or vehicle, zooming to keep the target centered, then resumes patrol.

150 m Smart IR 492 ft of night reach from a dual-stack 6-LED array in 3 zoom-linked groups, with 200% brightness improvement over the prior generation.

Extreme Long Range Detects at up to 3,034 m and identifies at 303.4 m at full telephoto.

High-Speed Gimbal 360° endless pan at up to 200°/s (240°/s to preset), -10° to 90° tilt with auto flip.

Comprehensive PTZ Control 360 presets, 8 cruises, 4 traces, 3D positioning, boundary scanning, power-off memory.

True IK10 Including Glass Window Vandal certification that covers the lens cover, not just the housing.

Built-In Heater & Fan Rated -40°C to 60°C for genuine year-round outdoor operation, with cold start at -30°C.

Water Removal Spins off rain droplets from the window to keep the view clear.

Alarm & Audio I/O 1CH dry contact input, 1CH output, 1CH mic input, 1CH line output with full alarm linkage.

Hardened Electrics 6000V lightning, surge, and voltage transient protection; IP66 aluminum alloy body.

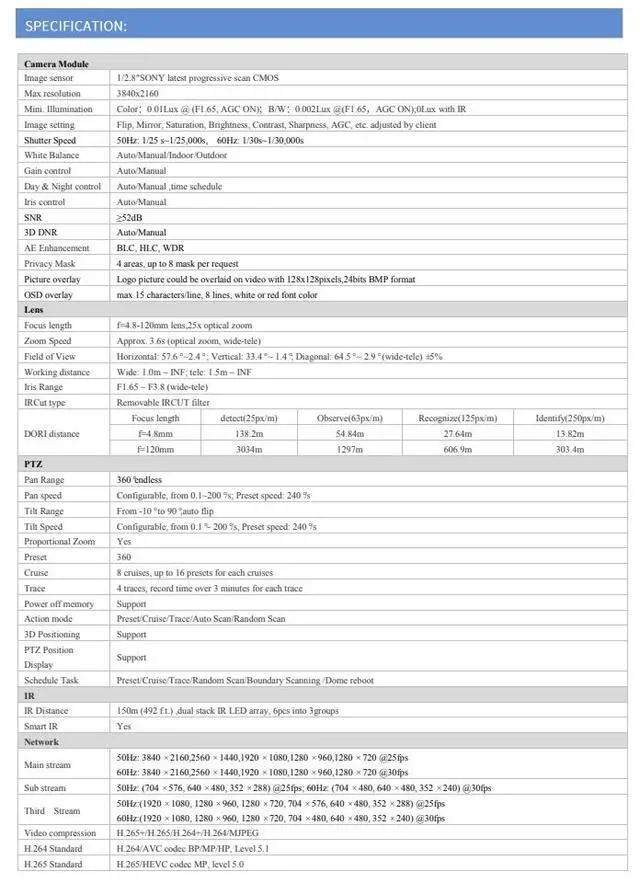

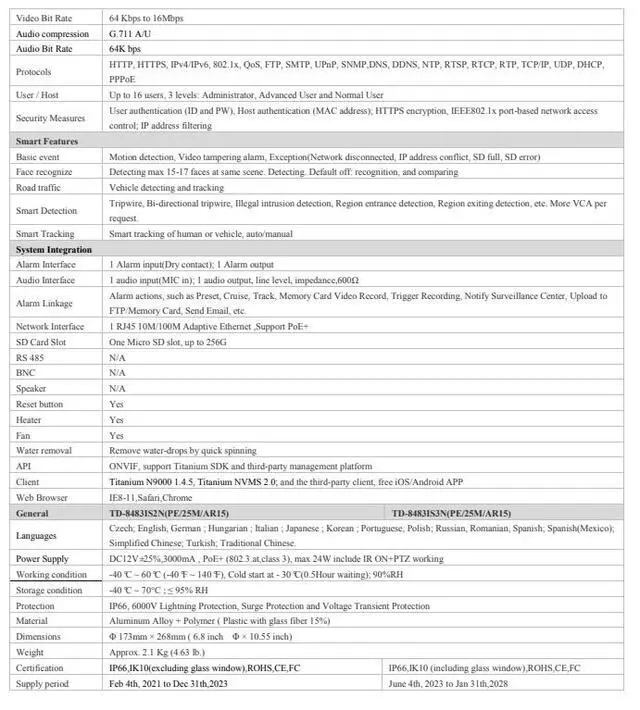

Specifications

Model: IP-5PT8ISN27-25X-2 | Type: Outdoor PTZ, IP/Network, AI Tracking

Resolution: 8MP (3840 × 2160) | Frame Rate: 30fps at 4K (60Hz); 25fps (50Hz)

Image Sensor: 1/2.8" Sony progressive scan CMOS | S/N Ratio: 52 dB

Lens: 4.8120 mm, 25x optical zoom + 16x digital | Iris F1.65F3.8 | Removable IR-cut filter

Field of View: 57.6°2.4° horizontal, 33.4°1.4° vertical, 64.5°2.9° diagonal (±5%)

Min. Illumination: Color 0.01 lux @ F1.65 (AGC on) | B/W 0.002 lux | 0 lux with IR

IR: 150 m (492 ft), dual-stack array, 6 LEDs in 3 zoom-linked groups, Smart IR

Image: HDR, WDR, BLC, HLC, 3D DNR, auto/manual white balance, gain, iris, 4 privacy mask areas, logo and text overlay

Shutter Speed: 1/30 s to 1/30,000 s (60Hz); 1/25 s to 1/25,000 s (50Hz)

Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG | 64 Kbps16 Mbps

Streams: 3 (main + sub + third)

PTZ: 360° endless pan at 0.1200°/s (preset 240°/s) | Tilt -10° to 90° with auto flip at 0.1200°/s | 360 presets | 8 cruises (16 presets each) | 4 traces | 3D positioning | power-off memory

Analytics: Tripwire, bi-directional tripwire, illegal intrusion, region entrance/exiting, motion detection, video tampering, vehicle detection and tracking, face detection, smart human/vehicle tracking

DORI (wide, 4.8mm): Detect 138.2 m | Observe 54.84 m | Recognize 27.64 m | Identify 13.82 m

DORI (tele, 120mm): Detect 3,034 m | Observe 1,297 m | Recognize 606.9 m | Identify 303.4 m

Audio: 1CH mic input, 1CH line output (600) | G.711 A/U

Alarm: 1CH dry contact input, 1CH output

Storage: Micro SD up to 256GB

Network: 1× RJ45 10M/100M with PoE+ | ONVIF, SDK, API | Up to 16 users, 3 permission levels

Security: HTTPS, 802.1X, IP filtering, user and MAC host authentication

Client: Titanium N9000 1.4.5, Titanium NVMS 2.0, third-party VMS, free iOS/Android apps

Power: PoE+ (IEEE 802.3at) or DC 12V ±25% 3000mA | Max 24W with IR on and PTZ active

Thermal Management: Built-in heater and turbo fan; water removal by spin

Protection: IP66, IK10 (including glass window), 6000V lightning/surge/transient protection

Operating Conditions: -40°C to 60°C (-40°F to 140°F), cold start at -30°C | 90% RH

Housing: Aluminum alloy + glass-fiber polymer

Dimensions: Ø173 mm × 268 mm (6.8" × 10.55") | Weight: approx. 2.1 kg (4.63 lbs)
