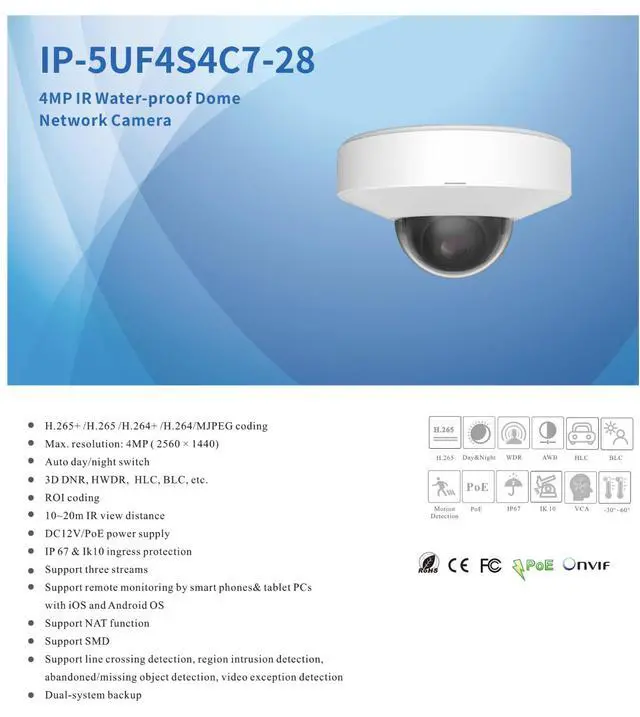

ENS Titanium IP-5UF4S4C7-28 4MP IP Mini Vandal Dome Camera, 2.8mm Lens, 66ft IR Night Vision, Human/Vehicle Detection, Built-in Mic, 120dB WDR, IP67 IK10, PoE

Overview

The ENS Titanium IP-5UF4S4C7-28 is a compact 4MP vandal dome that packs full analytics and IK10 impact resistance into a housing just 110.4 mm across and 62 mm tall, weighing 0.41 kg. The low profile matters where a full-size dome looks intrusive or won't fit apartment corridors, elevator lobbies, retail interiors, office ceilings, and soffit installs and the aluminum alloy body keeps it durable rather than merely small.

A 1/3" CMOS sensor delivers 2560 × 1440 at a full 30fps through a 2.8 mm F1.6 lens with a 94° horizontal field of view, detecting activity at 62 m (203 ft) and identifying a person at 6 m (20 ft). Sensitivity reaches 0.005 lux with AGC on, and infrared covers 1020 m for close and medium-range night work. Image processing includes 120 dB HWDR, HLC, BLC, and 3D DNR to handle backlit doorways and glass frontages.

Analytics run the same classification engine as larger Titanium models: line crossing and region intrusion with human and vehicle distinction, abandoned and missing object detection, and SMD, so alerts reflect real activity rather than shadows and weather. Dual-system backup guards against a failed firmware update bricking the unit, and ANR backfills recordings after a network outage from the microSD card, which supports up to 256GB.

Power draw is the standout number: under 2.3W on 12V DC or under 3.4W over PoE. On a heavily loaded switch, that leaves meaningful headroom. IP67 sealing and a -30°C to 60°C operating range make it viable outdoors as well as in.

Key Features

Compact IK10 Vandal Dome Ø110.4 × 62 mm (4.35" × 2.44") at 0.41 kg, with a full impact rating and aluminum alloy body.

4MP at 30fps 2560 × 1440 full-rate video with H.265+ compression to keep bandwidth and storage in check.

0.005 Lux Sensitivity Exceptional low-light performance before infrared even engages.

1020 m IR Night Vision Up to 66 ft of reach, matched to the coverage this lens actually resolves.

Wide 94° Coverage 2.8 mm F1.6 lens detects activity at up to 62 m (203 ft) and observes at 25 m (81 ft).

120 dB HWDR Balances harsh backlighting at entrances, glass frontages, and lobbies.

Smart Classification Line crossing and region intrusion detection distinguishing human from vehicle to cut false alerts.

Abandoned & Missing Object Detection Alerts on packages left behind or equipment removed from a scene.

Dual-System Backup Firmware redundancy protects against failed updates.

256GB Edge Storage with ANR Recording continues through network outages, then backfills automatically.

Built-In Microphone Plus a separate 1-channel audio input.

Very Low Power Draw Under 3.4W over PoE (802.3af), under 2.3W on 12V DC.

Weather and Impact Rated IP67 and IK10 in one housing, -30°C to 60°C.

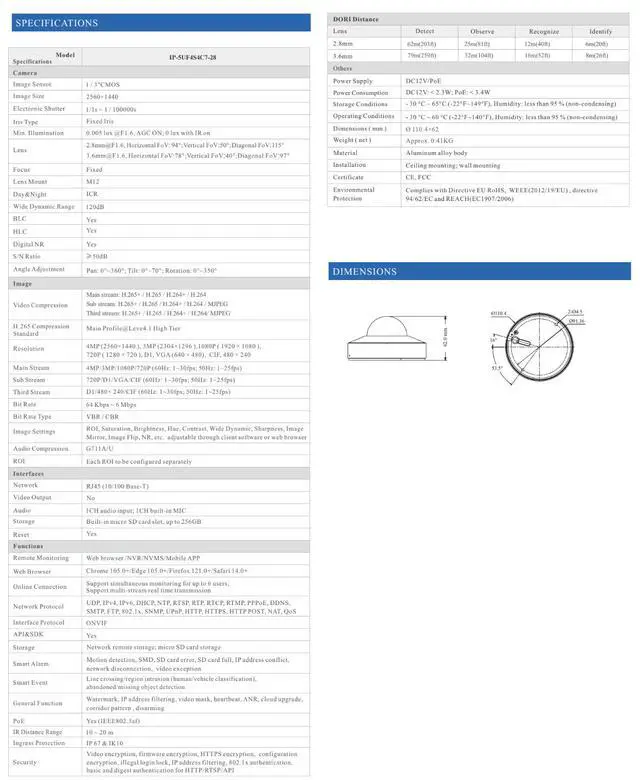

Specifications

Model: IP-5UF4S4C7-28 | Type: Compact Vandal Dome, IP/Network, IR

Resolution: 4MP (2560 × 1440) | Frame Rate: 130fps at 4MP/3MP/1080P/720P (60Hz); 125fps (50Hz)

Image Sensor: 1/3" CMOS | S/N Ratio: 50 dB

Lens: 2.8 mm @ F1.6 fixed, M12 mount | Fixed iris | Fixed focus

Field of View: 94° horizontal, 50° vertical, 115° diagonal

Min. Illumination: 0.005 lux @ F1.6 (AGC on); 0 lux with IR on

IR Distance: 1020 m (3366 ft)

Day/Night: ICR auto switch

WDR: 120 dB HWDR | BLC, HLC, 3D DNR, ROI, corridor mode

Electronic Shutter: 1/1 s to 1/100,000 s

Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps6 Mbps | VBR/CBR

Streams: 3 (main + sub + third)

Analytics: Line crossing, region intrusion (human/vehicle classification), abandoned & missing object detection, SMD, video exception

DORI (2.8mm): Detect 62 m (203 ft) | Observe 25 m (81 ft) | Recognize 12 m (40 ft) | Identify 6 m (20 ft)

Audio: 1CH input + 1CH built-in microphone | G.711A/U

Storage: Micro SD up to 256GB, network remote storage, ANR

Network: RJ45 (10/100 Base-T) | ONVIF, API & SDK | NAT | up to 6 simultaneous users

Security: Video/firmware/HTTPS/config encryption, 802.1X, IP filtering, login lock, HTTP/RTSP/API authentication, watermark, video mask

Other: Dual-system backup, cloud upgrade, heartbeat, disarming

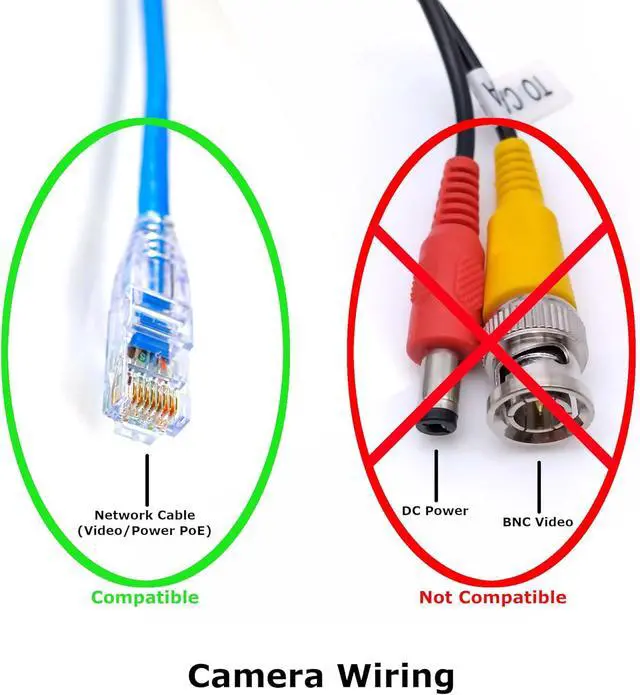

Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <3.4W PoE, <2.3W DC

Ingress Protection: IP67 & IK10

Operating Conditions: -30°C to 60°C (-22°F to 140°F), <95% RH non-condensing

Housing: Aluminum alloy

Dimensions: Ø110.4 × 62 mm | Weight: approx. 0.41 kg (0.90 lbs)

Installation: Ceiling or wall mount | Pan 0360°, Tilt 070°, Rotation 0350°
