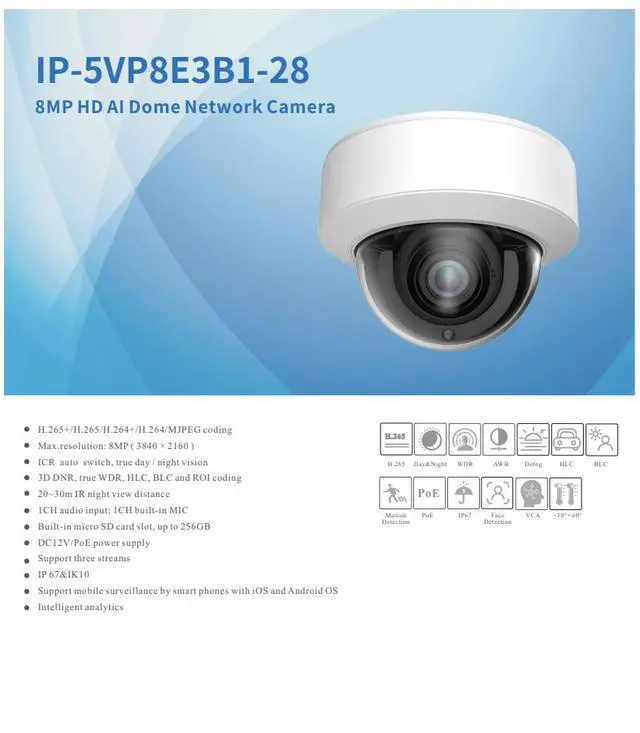

ENS Titanium IP-5VP8E3B1-28 8MP 4K AI IP Vandal Dome Camera, 2.8mm Lens, 98ft IR Night Vision, Face Detection & Capture, People Counting, Alarm I/O, IP67 IK10, PoE

Overview

The ENS Titanium IP-5VP8E3B1-28 is an 8MP AI vandal dome that does something most 4K cameras in its class don't: it runs the full 3840 × 2160 at 30fps rather than dropping to 20fps at maximum resolution. For scenes with real movement doorways, checkout lanes, turnstiles that difference shows up directly in how usable the footage is when you go back to review it.

The analytics package is oriented toward identification and counting rather than simple perimeter alerts. Face detection with automatic face capture pulls and stores cropped face images as people pass, while line crossing counting tallies humans, motor vehicles, and non-motor vehicles separately useful for foot traffic data, occupancy tracking, and entry auditing on top of security. Perimeter protection handles line crossing and intrusion with the same three-way classification to keep false alerts down.

A 1/2.8" CMOS sensor pairs with a wide 2.8 mm F1.6 lens covering 109.7° horizontally, wide enough to take in an entire entryway or lobby from one mounting point. True 120 dB WDR, HLC, BLC, defog, and 3D DNR handle backlit glass frontages and haze, with infrared reaching 2030 m at night. An HFR mode pushes 1080P and 720P to 60fps when frame rate matters more than resolution.

The IK10-rated dome housing resists deliberate impact and IP67 sealing handles weather, making it suitable for schools, transit areas, apartment corridors, and retail entrances where the camera itself is a target. Alarm input and output allow integration with door contacts, sensors, and external sirens. A microSD slot supports up to 256GB, and the camera draws under 9W on PoE or 12V DC.

Key Features

8MP at a Full 30fps 3840 × 2160 without the frame rate penalty most 4K cameras impose at maximum resolution.

Face Detection & Capture Automatically detects and captures cropped face images as subjects pass the camera.

People & Vehicle Counting Line crossing counting tallies humans, motor vehicles, and non-motor vehicles separately for traffic and occupancy data.

IK10 Vandal Resistance Impact-rated dome housing for exposed, reachable, or high-traffic installs.

Wide 109.7° Coverage 2.8 mm F1.6 lens takes in an entire entryway or lobby from a single mounting point.

Perimeter Protection Line crossing and intrusion detection with human, motor vehicle, and non-motor vehicle classification.

2030 m IR Night Vision Up to 98 ft of infrared reach with true day/night ICR switching.

120 dB True WDR Plus defog and HLC for backlit entrances, glass frontages, headlights, and haze.

60fps High Frame Rate Mode 1080P and 720P at up to 60fps for fast-motion scenes.

Alarm I/O 1-channel input and 1-channel output for door contacts, sensors, and external sirens.

Built-In Microphone Plus a separate 1-channel audio input.

256GB Edge Storage Micro SD recording plus network remote storage.

Weather and Impact Rated IP67 and IK10 in one housing, -30°C to 60°C, under 9W.

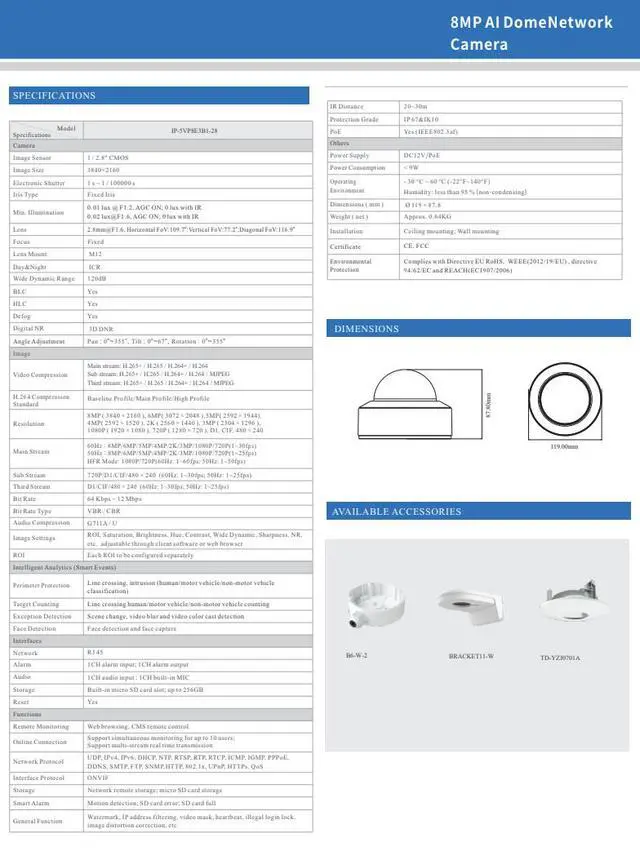

Specifications

Model: IP-5VP8E3B1-28 | Type: Vandal Dome, IP/Network, AI

Resolution: 8MP (3840 × 2160) | Frame Rate: 130fps at all resolutions through 8MP (60Hz); 125fps (50Hz) | HFR mode 160fps at 1080P/720P

Image Sensor: 1/2.8" CMOS

Lens: 2.8 mm @ F1.6 fixed, M12 mount | Fixed iris | Fixed focus

Field of View: 109.7° horizontal, 77.2° vertical, 116.9° diagonal

Min. Illumination: 0.02 lux @ F1.6 (AGC on); 0 lux with IR

IR Distance: 2030 m (6598 ft)

Day/Night: ICR auto switch, true day/night

WDR: 120 dB true WDR | BLC, HLC, 3D DNR, Defog, ROI, image distortion correction

Electronic Shutter: 1 s to 1/100,000 s

Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps12 Mbps | VBR/CBR

Streams: 3 (main + sub + third)

Analytics: Line crossing and intrusion (human / motor vehicle / non-motor vehicle classification), line crossing target counting by class, face detection and face capture, exception detection (scene change, video blur, color cast)

Audio: 1CH input + 1CH built-in microphone | G.711A/U

Alarm: 1CH alarm input, 1CH alarm output

Storage: Micro SD up to 256GB, network remote storage

Network: RJ45 | ONVIF | up to 10 simultaneous users

Security: IP filtering, 802.1X, HTTPS, illegal login lock, watermark, video mask

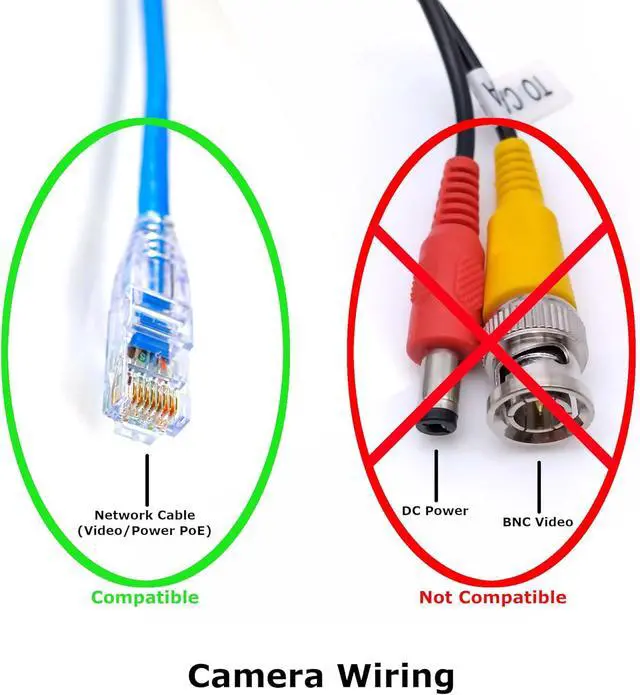

Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <9W

Ingress Protection: IP67 & IK10

Operating Conditions: -30°C to 60°C (-22°F to 140°F), <95% RH non-condensing

Dimensions: Ø119 × 87.8 mm | Weight: approx. 0.64 kg (1.41 lbs)

Installation: Ceiling or wall mount | Pan 0355°, Tilt 067°, Rotation 0355°
