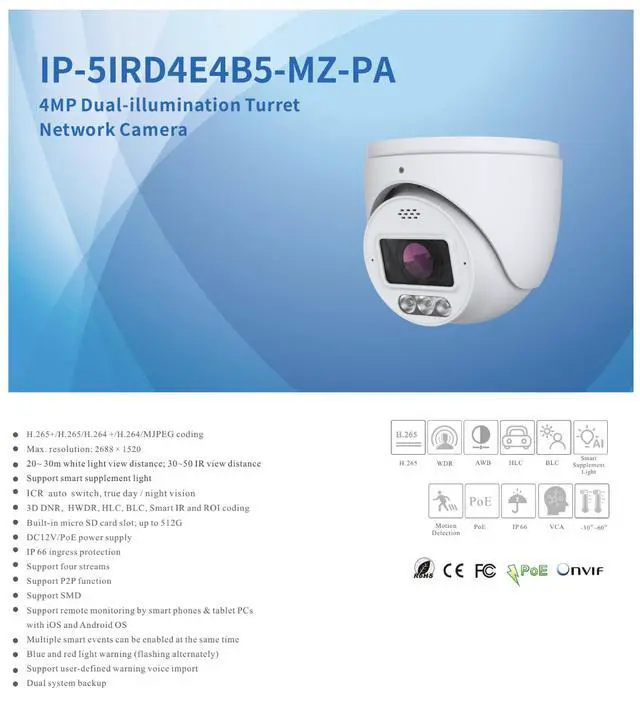

ENS Titanium IP-5IRD4E4B5-MZ-PA 4MP Active Deterrence AI Turret Camera, 2.7-13.5mm Motorized Zoom, 164ft IR & 98ft White Light, Red/Blue Strobe & Voice Alerts, Face Detection, IP66, PoE+

Overview

The ENS Titanium IP-5IRD4E4B5-MZ-PA is the most analytics-capable 4MP turret in the Titanium line, pairing a 2.713.5 mm motorized zoom lens with dual illumination and an active deterrence package built around alternating red and blue warning lights the same visual language as an emergency vehicle, and considerably harder for an intruder to ignore than a white strobe. A built-in speaker plays warning audio on trigger, and you can import your own custom voice messages instead of relying on generic factory clips.

What sets this model apart is the depth of its detection. Video metadata extraction simultaneously identifies human bodies, motor vehicles, and non-motor vehicles, pulling 13 distinct human attributes, 4 motor vehicle attributes, and 1 non-motor vehicle attribute the foundation for searchable, filterable review rather than scrubbing hours of footage. On top of that: loitering detection, illegal parking detection, people gathering detection, heat map, target counting by line or area, and face detection with capture. Multiple smart events can run at the same time, which many cameras in this class cannot do.

Low-light performance is exceptional at 0.0019 lux with the F1.3 lens. Infrared reaches 3050 m and white light 2030 m, with smart supplement light choosing between them automatically covert monochrome monitoring by default, full-color capture when detail matters. The motorized lens adjusts remotely from 100° wide to 34° telephoto, detecting activity at 182 m (596 ft) and identifying a person at 18 m (60 ft) at full zoom.

Rounding it out: four simultaneous streams, microSD storage to 512GB with ANR, two built-in microphones plus a speaker, alarm input and output, ONVIF Profile S/G/M/T, TLS encryption, dual-system firmware backup, and PoE+ or 12V DC power. IP66 sealing and a -30°C to 60°C range.

Key Features

Red & Blue Alternating Strobe Emergency-style flashing warning lights make deterrence unmistakable, well beyond what a plain white strobe achieves.

Custom Voice Warnings Import your own recorded messages instead of relying on generic presets; plays through the built-in speaker.

Video Metadata Extraction Captures humans, motor vehicles, and non-motor vehicles simultaneously, extracting 13 human, 4 motor vehicle, and 1 non-motor vehicle attributes for searchable review.

Deep Analytics Suite Loitering, illegal parking, people gathering, abandoned & missing object detection, heat map, target counting by line or area, and face detection with capture.

Multiple Simultaneous Events Run several smart detections at once rather than choosing one.

2.713.5 mm Motorized Zoom Adjust field of view and focus remotely after installation; 100° wide down to 34° telephoto.

0.0019 Lux Sensitivity F1.3 lens delivers usable color images in near darkness before illumination engages.

Dual Illumination Infrared to 3050 m (98164 ft) or white light to 2030 m (6598 ft), selected automatically by smart supplement light.

Long Zoom Reach Detects activity at up to 182 m (596 ft) and identifies at 18 m (60 ft) at full telephoto.

120 dB HWDR Balances harsh backlighting at gates, entrances, and open areas.

Four Simultaneous Streams More flexibility than the typical three-stream camera for mixed recording, viewing, and analytics workloads.

512GB Edge Storage with ANR Double the usual card capacity; recording continues through network outages, then backfills automatically.

Two Built-In Microphones & Speaker Plus 1CH audio input and 1CH audio output, with audio exception detection.

Alarm I/O 1-channel input and 1-channel output for door contacts, sensors, and external devices.

Dual-System Backup Firmware redundancy protects against failed updates on remote installs.

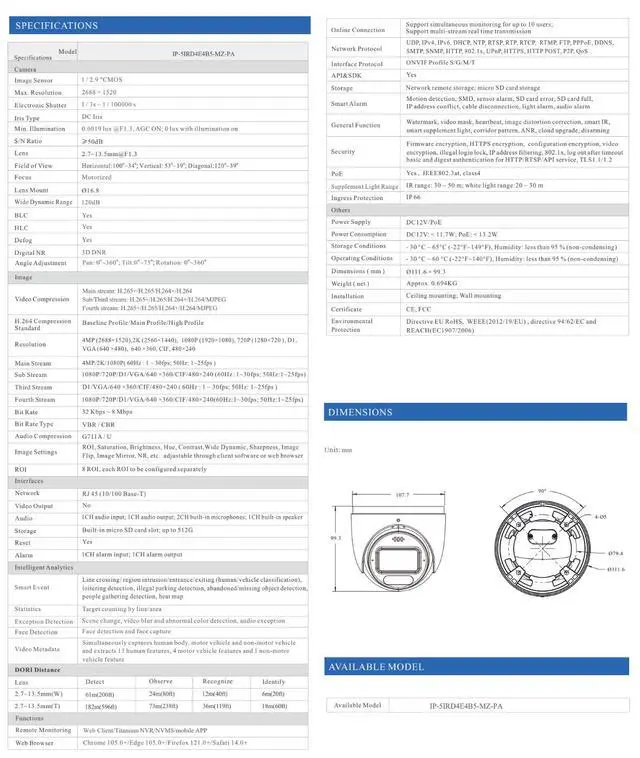

Specifications

Model: IP-5IRD4E4B5-MZ-PA | Type: Motorized Zoom Turret, IP/Network, Dual Illumination, Active Deterrence

Resolution: 4MP (2688 × 1520) | Frame Rate: 130fps at 4MP/2K/1080P (60Hz); 125fps (50Hz)

Image Sensor: 1/2.9" CMOS | S/N Ratio: 50 dB

Lens: 2.713.5 mm @ F1.3 motorized zoom, Ø16.8 mount | DC iris | Motorized focus

Field of View: 100°34° horizontal, 53°19° vertical, 120°39° diagonal

Min. Illumination: 0.0019 lux @ F1.3 (AGC on); 0 lux with illumination on

Illumination: IR 3050 m (98164 ft) + white light 2030 m (6598 ft), smart supplement light, Smart IR

Deterrence: Alternating red and blue flashing warning lights; user-defined warning voice import

Day/Night: ICR auto switch, true day/night

WDR: 120 dB HWDR | BLC, HLC, 3D DNR, ROI (8 zones), image distortion correction, corridor mode

Electronic Shutter: 1/3 s to 1/100,000 s

Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third/fourth streams) | 32 Kbps8 Mbps | VBR/CBR

Streams: 4 (main + sub + third + fourth)

Analytics: Line crossing, region intrusion/entrance/exiting (human/vehicle classification), loitering, illegal parking, abandoned & missing object detection, people gathering, heat map, SMD

Metadata: Simultaneous human / motor vehicle / non-motor vehicle capture with 13 + 4 + 1 attribute extraction

Statistics: Target counting by line or area

Face: Face detection and face capture

Exception Detection: Scene change, video blur, abnormal color, audio exception

Audio: 1CH input + 1CH output + 2CH built-in microphones + 1CH built-in speaker | G.711A/U

Alarm: 1CH alarm input, 1CH alarm output

Storage: Micro SD up to 512GB, network remote storage, ANR

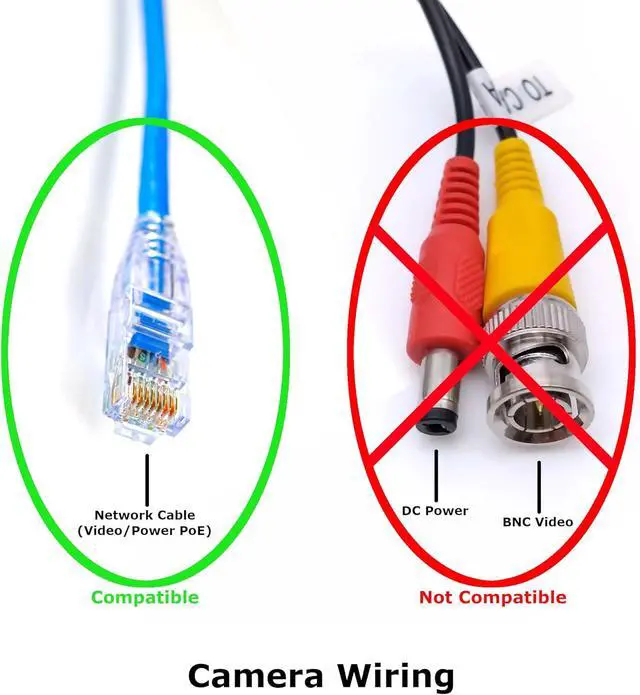

Network: RJ45 (10/100 Base-T) | ONVIF Profile S/G/M/T, API & SDK | P2P | up to 10 simultaneous users

Security: Firmware/HTTPS/config/video encryption, 802.1X, IP filtering, login lock, timeout logout, HTTP/RTSP/API authentication, TLS 1.1/1.2, watermark, video mask

Other: Dual-system backup, cloud upgrade, heartbeat, disarming

Power: PoE (IEEE 802.3at, Class 4) or DC 12V | Consumption: <13.2W PoE, <11.7W DC

Ingress Protection: IP66

Operating Conditions: -30°C to 60°C (-22°F to 140°F), <95% RH non-condensing

Dimensions: Ø111.6 × 99.3 mm | Weight: approx. 0.6 kg (1.32 lbs)

Installation: Ceiling or wall mount | Pan 0360°, Tilt 075°, Rotation 0360°
