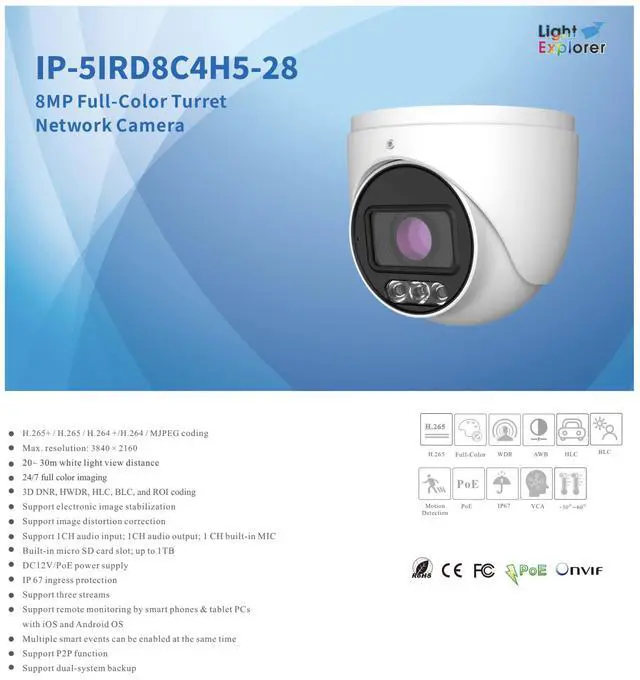

ENS Titanium IP-5IRD8C4H5-28 8MP 4K Full-Color Turret IP Camera, 2.8mm F1.0, 24/7 Color Night Vision, 98ft White Light, Face Detection, Video Metadata, IP67

Overview

The ENS Titanium IP-5IRD8C4H5-28 is an 8MP turret built for one thing above all: color at night. A large 1/1.8" CMOS sensor paired with an exceptionally fast F1.0 lens reaches 0.0005 lux sensitivity roughly twenty times more light-sensitive than the F1.6 optics standard across the rest of the line. The practical result is usable full-color video in conditions where a conventional camera has already switched to black and white, and color detail is what actually makes footage useful: the color of a jacket, a car, a bag.

When ambient light finally runs out, white light illumination extends to 2030 m and keeps the image in color rather than dropping to monochrome. Coverage is wide at 110° horizontal, taking in an entire forecourt, driveway, or storefront from a single mounting point, with detection to 76 m (249 ft).

The analytics package is the deep one. Video metadata extraction simultaneously captures human bodies, motor vehicles, and non-motor vehicles, pulling 13 human attributes, 4 motor vehicle attributes, and 1 non-motor vehicle attribute the foundation for searchable review rather than scrubbing timeline. Face detection, capture, and comparison run alongside loitering detection, illegal parking detection, abandoned and missing object detection, target counting by line or area, and heat map. Multiple smart events can be enabled at once, which many cameras in this class cannot do.

Two practical touches: electronic image stabilization steadies the image on poles and other mounts prone to vibration, and the microSD slot accepts cards up to 1TB four times the capacity of the rest of the Titanium line, enough that edge recording becomes a real archive rather than a buffer. Alarm input and output, ANR, dual-system firmware backup, IP67 sealing, a -30°C to 60°C range, and PoE or 12V DC power under 7.5W round it out.

Key Features

24/7 Full-Color Imaging Color video around the clock, not just in daylight; no switch to black and white at dusk.

0.0005 Lux Sensitivity A 1/1.8" sensor and F1.0 lens deliver color in near darkness, well beyond typical F1.6 optics.

8MP 4K Resolution 3840 × 2160 detail with H.265+ compression to keep bandwidth and storage manageable.

2030 m White Light Up to 98 ft of illumination that keeps the image in color rather than dropping to monochrome.

Wide 110° Coverage 2.8 mm lens detects activity at up to 76 m (249 ft) and observes at 30 m (98 ft).

Video Metadata Extraction Captures humans, motor vehicles, and non-motor vehicles simultaneously, extracting 13 human, 4 motor vehicle, and 1 non-motor vehicle attributes for searchable review.

Face Detection, Capture & Comparison Full face pipeline, not just detection.

Deep Analytics Suite Loitering, illegal parking, abandoned & missing object detection, region intrusion/entrance/exiting with human and vehicle classification, target counting by line or area, and heat map.

Multiple Simultaneous Events Run several smart detections at once rather than choosing one.

Electronic Image Stabilization Steadies footage on poles and vibration-prone mounts.

1TB Edge Storage with ANR Four times the card capacity of typical cameras; recording continues through network outages, then backfills.

Built-In Microphone Plus 1CH audio input and 1CH audio output.

Alarm I/O 1-channel input and 1-channel output for door contacts, sensors, and external devices.

Dual-System Backup Firmware redundancy protects against failed updates on remote installs.

Rugged and Efficient IP67 rated, -30°C to 60°C, under 7.5W on PoE (802.3af) or 12V DC.

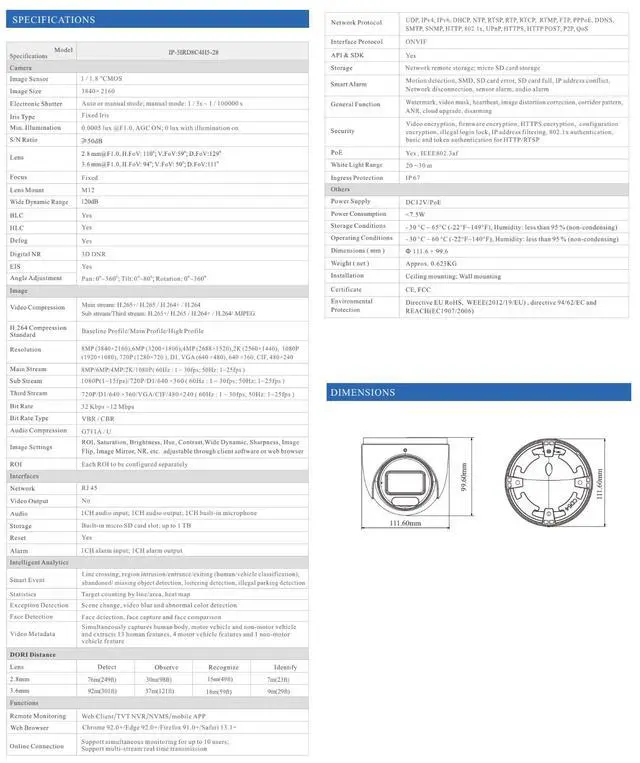

Specifications

Model: IP-5IRD8C4H5-28 | Type: Full-Color Turret, IP/Network, White Light

Resolution: 8MP (3840 × 2160) | Frame Rate: 130fps at 8MP/6MP/4MP/2K/1080P (60Hz); 125fps (50Hz)

Image Sensor: 1/1.8" CMOS | S/N Ratio: 50 dB

Lens: 2.8 mm @ F1.0, M12 mount | Fixed iris | Fixed focus

Field of View: 110° horizontal, 59° vertical, 129° diagonal

Min. Illumination: 0.0005 lux @ F1.0 (AGC on); 0 lux with illumination on

Illumination: White light 2030 m (6598 ft) | 24/7 full color imaging

WDR: 120 dB HWDR | BLC, HLC, 3D DNR, ROI, EIS, image distortion correction, corridor mode

Electronic Shutter: Auto or manual, 1/3 s to 1/100,000 s

Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 32 Kbps12 Mbps | VBR/CBR

Streams: 3 (main + sub + third)

Analytics: Line crossing, region intrusion/entrance/exiting (human/vehicle classification), loitering, illegal parking, abandoned & missing object detection

Metadata: Simultaneous human / motor vehicle / non-motor vehicle capture with 13 + 4 + 1 attribute extraction

Face: Face detection, face capture, face comparison

Statistics: Target counting by line or area, heat map

Exception Detection: Scene change, video blur, abnormal color

DORI (2.8mm): Detect 76 m (249 ft) | Observe 30 m (98 ft) | Recognize 15 m (49 ft) | Identify 7 m (23 ft)

Audio: 1CH input + 1CH output + 1CH built-in microphone | G.711A/U

Alarm: 1CH alarm input, 1CH alarm output

Storage: Micro SD up to 1TB, network remote storage, ANR

Network: RJ45 | ONVIF, API & SDK | P2P | up to 10 simultaneous users

Security: Video/firmware/HTTPS/config encryption, 802.1X, IP filtering, login lock, HTTP/RTSP basic and token authentication, watermark, video mask

Other: Dual-system backup, cloud upgrade, heartbeat, disarming

Power: PoE (IEEE 802.3af) or DC 12V | Consumption: <7.5W

Ingress Protection: IP67

Operating Conditions: -30°C to 60°C (-22°F to 140°F), <95% RH non-condensing

Dimensions: Ø111.6 × 99.6 mm | Weight: approx. 0.623 kg (1.37 lbs)

Installation: Ceiling or wall mount | Pan 0360°, Tilt 080°, Rotation 0360°
