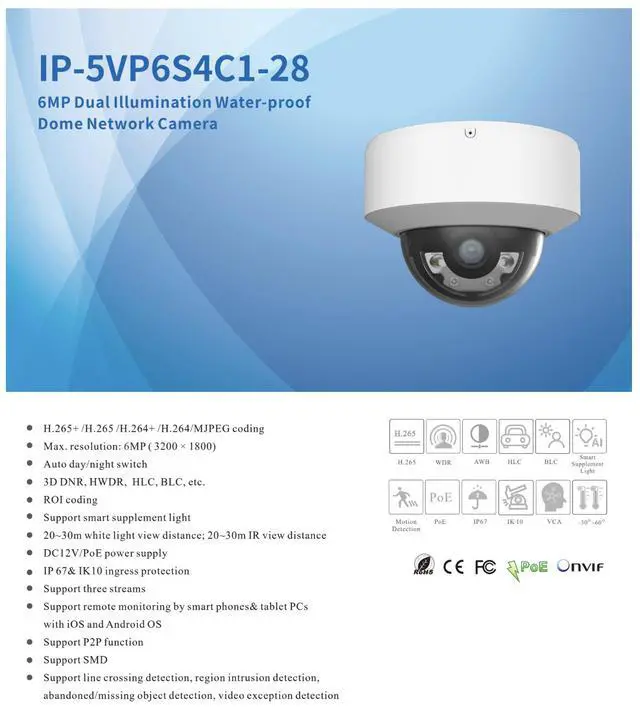

ENS Titanium IP-5VP6S4C1-28 6MP Dual Illumination IP Vandal Dome Camera, 2.8mm Lens, 98ft IR & White Light, Smart Supplement Light, Human/Vehicle Detection, Built-in Mic, IP67 IK10, PoE

Overview

The ENS Titanium IP-5VP6S4C1-28 is a 6MP vandal-resistant dome combining a wide 2.8 mm lens with dual illumination, giving you a choice of how to see after dark. Infrared reaches 2030 m for discreet monochrome monitoring, while white light reaches 2030 m for full-color detail, and smart supplement light selects between them automatically based on scene conditions. At 6MP it sits in a practical middle ground noticeably more detail than 4MP without the storage and bandwidth cost of 4K.

The 104° horizontal field of view covers wide entrances, lobbies, corridors, and parking areas from a single mounting point, detecting activity at 69 m (226 ft) and identifying a person at 7 m (23 ft). A 1/2.5" CMOS sensor with 0.008 lux sensitivity at F1.6 handles low light before illumination engages.

The IK10-rated dome housing is the reason to choose this model over a turret: it withstands deliberate impact, making it the right pick for schools, transit areas, apartment corridors, retail entrances, and anywhere the camera itself is a target. IP67 sealing handles weather on top of that.

Image processing includes 120 dB HWDR, HLC, BLC, and 3D DNR for backlit doorways and glass frontages. Smart analytics classify targets as human or vehicle to suppress false alarms from animals and weather, with abandoned and missing object detection and SMD. A microSD slot supports up to 256GB with ANR to backfill recordings after a network outage. Power draw is a modest 6.5W maximum on PoE or 12V DC, and the camera operates from -30°C to 60°C.

Key Features

6MP Resolution 3200 × 1800 detail, a meaningful step up from 4MP without 4K storage costs; 4MP and 1080P available at up to 30fps.

IK10 Vandal Resistance Impact-rated dome housing for exposed, reachable, or high-traffic installs.

Dual Illumination Infrared to 2030 m (6598 ft) for covert night monitoring, or white light to 2030 m (6598 ft) for full-color detail.

Smart Supplement Light Automatically selects IR or white light based on scene conditions.

Wide 104° Coverage 2.8 mm F1.6 lens detects activity at up to 69 m (226 ft) and observes at 28 m (92 ft).

120 dB HWDR Balances harsh backlighting at entrances, glass frontages, and open areas.

Smart Classification Line crossing and region intrusion detection distinguishing human from vehicle to cut false alerts.

Abandoned & Missing Object Detection Alerts on packages left behind or equipment removed from a scene.

256GB Edge Storage with ANR Recording continues through network outages, then backfills automatically.

Built-In Microphone Plus a separate 1-channel audio input.

Low Power Draw 6.5W maximum on PoE (802.3af) or 12V DC, leaving headroom on loaded switches and NVR PoE budgets.

Weather and Impact Rated IP67 and IK10 in one housing, -30°C to 60°C.

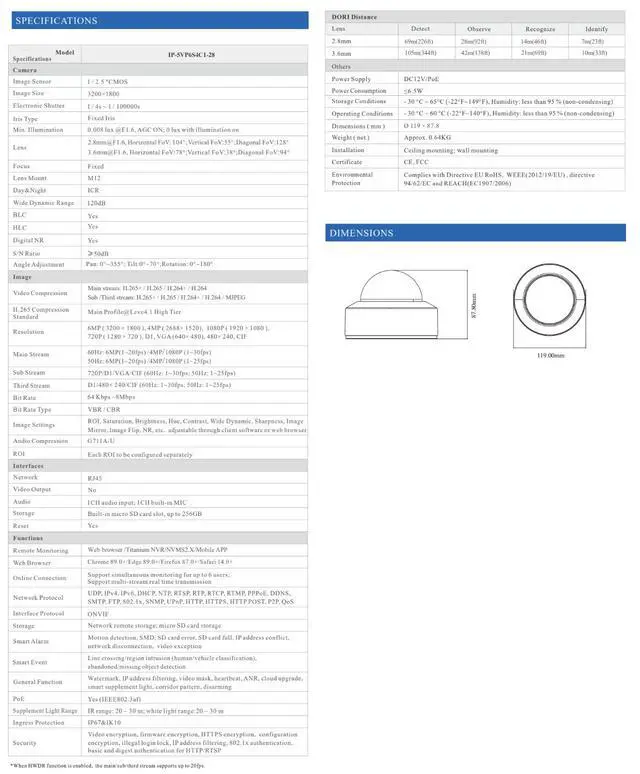

Specifications

Model: IP-5VP6S4C1-28 | Type: Vandal Dome, IP/Network, Dual Illumination

Resolution: 6MP (3200 × 1800) | Frame Rate: 120fps at 6MP; 130fps at 4MP/1080P (60Hz), 125fps (50Hz)

Note: With HWDR enabled, all streams cap at 20fps

Image Sensor: 1/2.5" CMOS | S/N Ratio: 50 dB

Lens: 2.8 mm @ F1.6, M12 mount | Fixed iris | Fixed focus

Field of View: 104° horizontal, 55° vertical, 128° diagonal

Min. Illumination: 0.008 lux @ F1.6 (AGC on); 0 lux with illumination on

Illumination: IR 2030 m (6598 ft) + white light 2030 m (6598 ft), smart supplement light

Day/Night: ICR auto switch

WDR: 120 dB HWDR | BLC, HLC, 3D DNR, ROI, corridor mode

Electronic Shutter: 1/4 s to 1/100,000 s

Compression: H.265+ / H.265 / H.264+ / H.264 (MJPEG on sub/third streams) | 64 Kbps8 Mbps | VBR/CBR

Streams: 3 (main + sub + third)

Analytics: Line crossing, region intrusion (human/vehicle classification), abandoned & missing object detection, SMD, video exception

DORI (2.8mm): Detect 69 m (226 ft) | Observe 28 m (92 ft) | Recognize 14 m (46 ft) | Identify 7 m (23 ft)

Audio: 1CH input + 1CH built-in microphone | G.711A/U

Storage: Micro SD up to 256GB, network remote storage, ANR

Network: RJ45 | ONVIF | P2P | up to 6 simultaneous users

Security: Video/firmware/HTTPS/config encryption, 802.1X, IP filtering, login lock, HTTP/RTSP basic and digest authentication, watermark, video mask

Other: Cloud upgrade, heartbeat, disarming

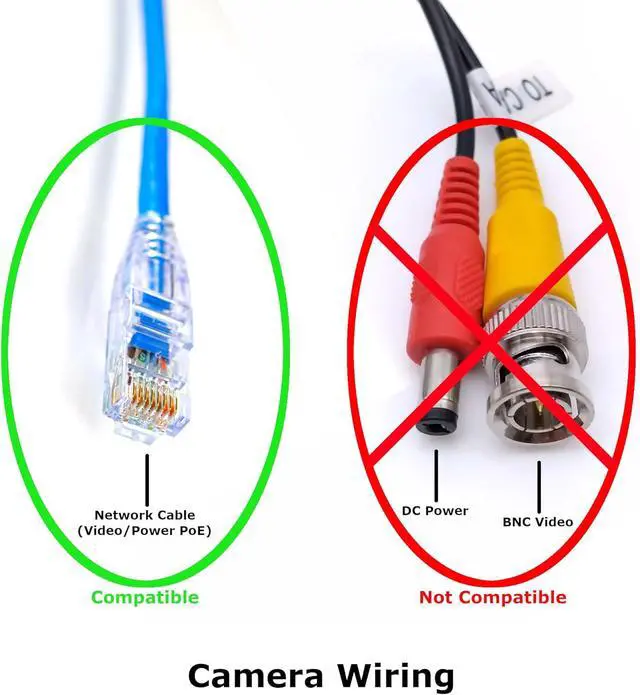

Power: PoE (IEEE 802.3af) or DC 12V | Consumption: 6.5W

Ingress Protection: IP67 & IK10

Operating Conditions: -30°C to 60°C (-22°F to 140°F), <95% RH non-condensing

Dimensions: Ø119 × 87.8 mm | Weight: approx. 0.64 kg (1.41 lbs)

Installation: Ceiling or wall mount | Pan 0355°, Tilt 070°, Rotation 0180°
