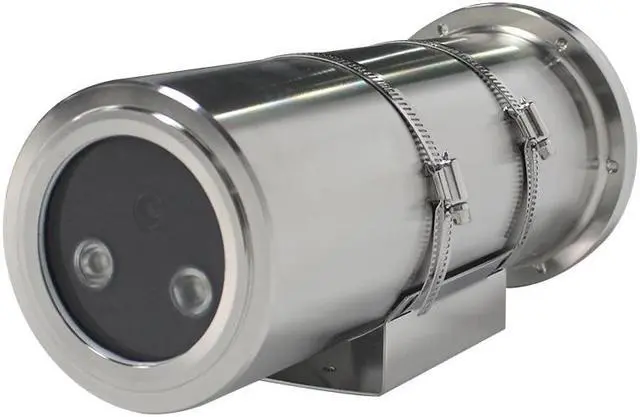

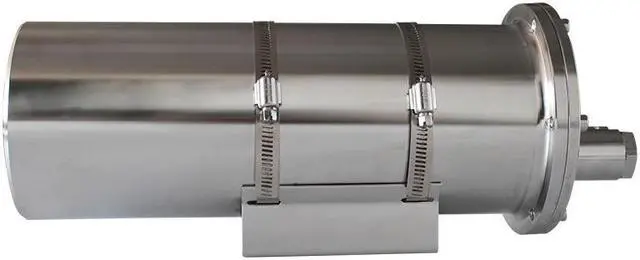

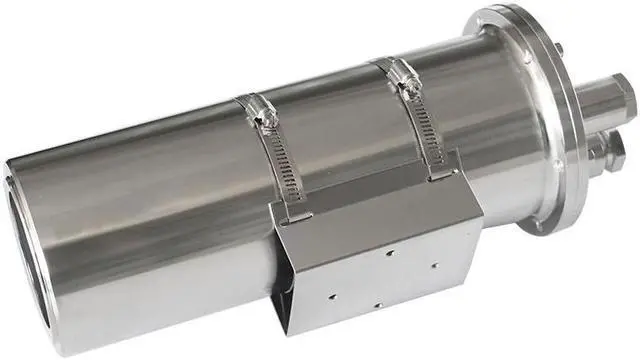

Stainless Steel 6MP Explosion-Proof IR Bullet Camera H.265 Waterproof IP68 2 Behavior Analyses

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Signal System: PAL/NTSC
Min.
Illumination:
Color: 0.01 Lux @ (F 1.2, AGC ON), 0.018 Lux @ (F 1.6, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100, 000 s
Slow shutter: Support
Lens: 4 mm
F 1.6: horizontal
FOV: 83°, vertical
FOV: 45°, diagonal FOV: 99°
6 mm F 1.6: horizontal
FOV: 51°, vertical
FOV: 29°, diagonal FOV: 58°
8 mm F 1.6: horizontal
FOV: 39°, vertical
FOV: 22°, diagonal FOV: 45°
Lens Mount: M12
Adjustment Range:
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H. 265+/H. 265/H. 264+/H. 264/MJPEG
Video bit rate: 256Kbps~16Mbps
Triple Streams: Yes
Max.
Image Resolution: 3042 × 2048
Frame Rate: 50Hz: 25fps (3072x2048, 1920 × 1080)
60Hz: 30fps ( 3072x2048, 1920 × 1080)
Sub Stream:
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping: No
ROI: 1 fixed region for main stream and sub-stream
Day/Night Switch: Day/Night/Auto/Schedule
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface

Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, intrusion detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Recognition: Face Detection
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE ( 802.3 af Class3)
Power Consumption: 12 VDC, 0.5A, max. 6W
PoE ( 802.3 af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Protection: Ingress
protection: IK08 (IEC 62262:2002 ), IP68 (IEC 60529-2013)
Explosion-proof:
ATEX: II 2 G D Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68 IEC
Ex: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68
IR Range: Up to 50m

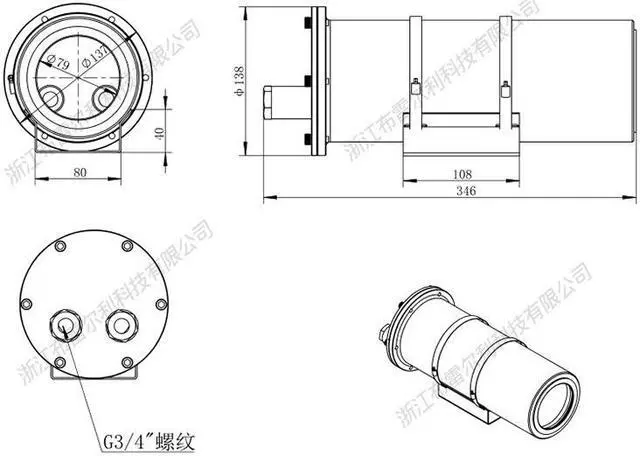

Dimensions: Camera: F 138× 346mm
Weight:
Camera: Approx. 7500g
With Package: Approx. 8000 g
