BZBGEAR Compact PTZ 1080P FHD 20X Camera with NDI/HDMI/SDI/USB 3.0/POE

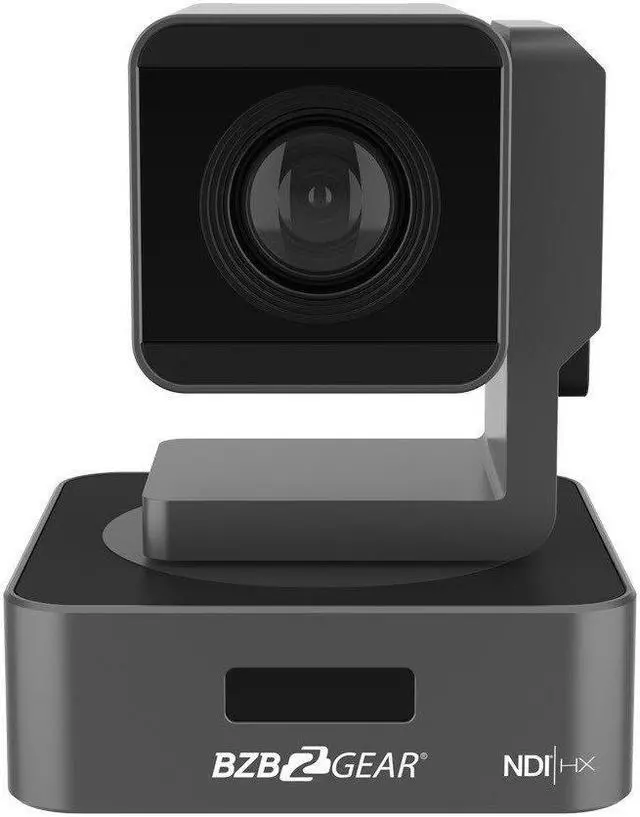

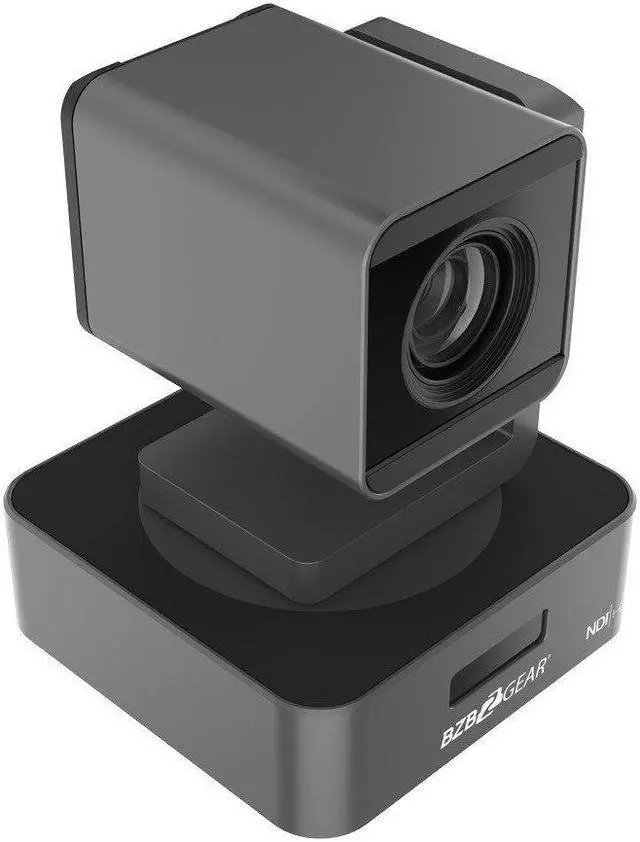

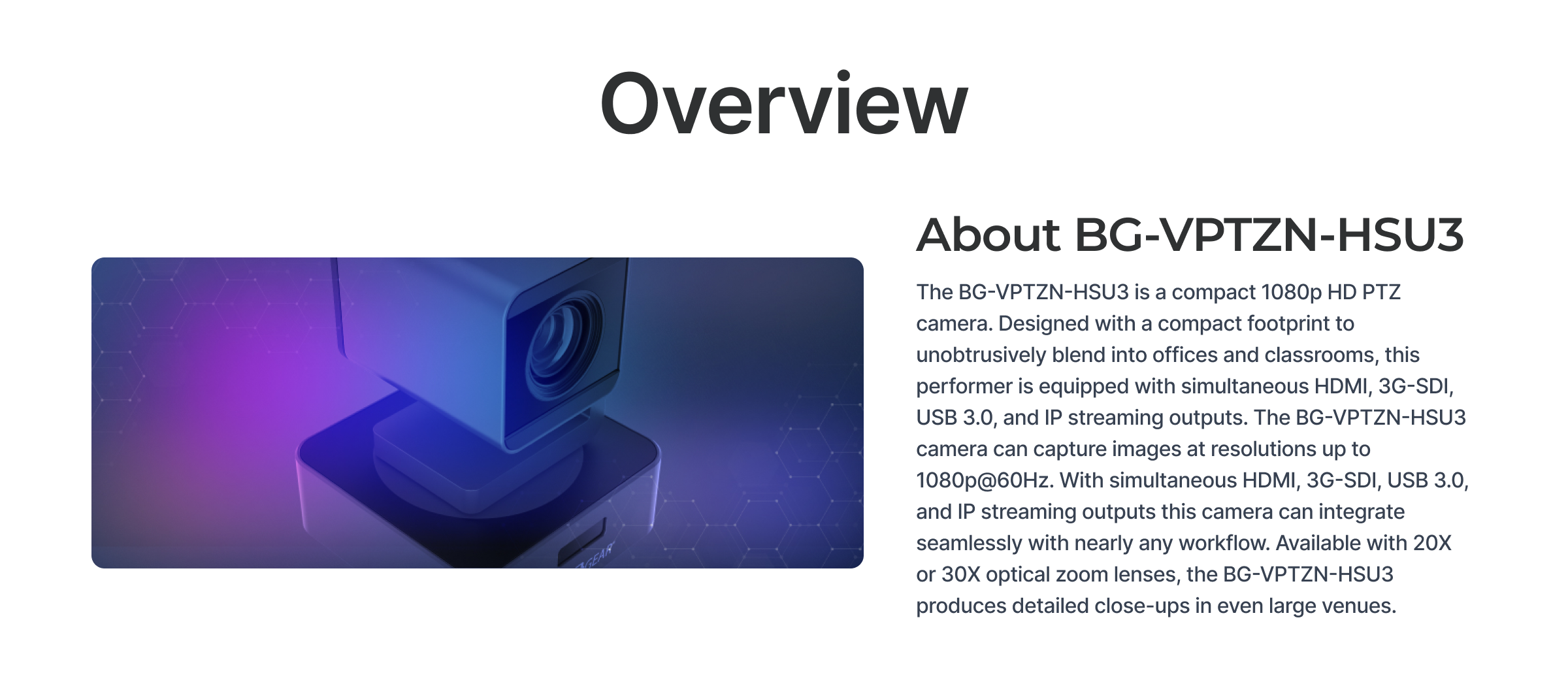

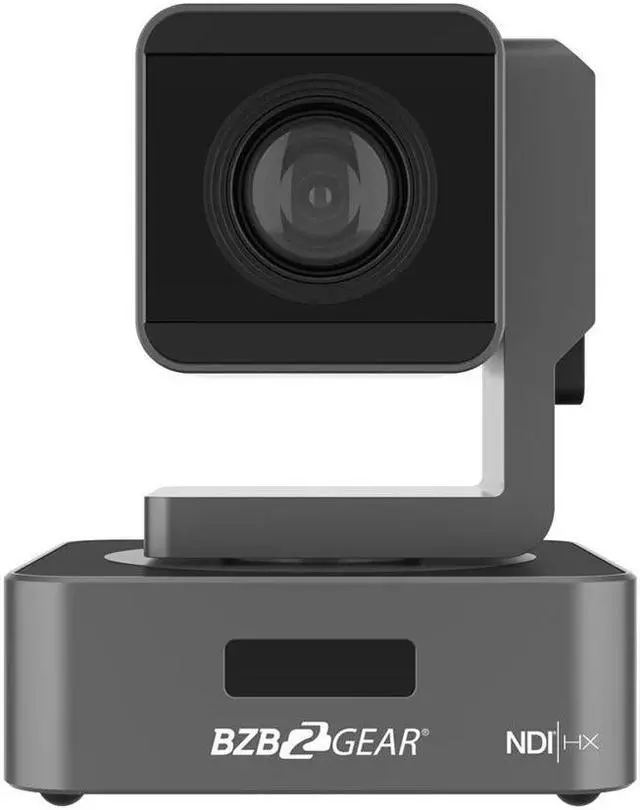

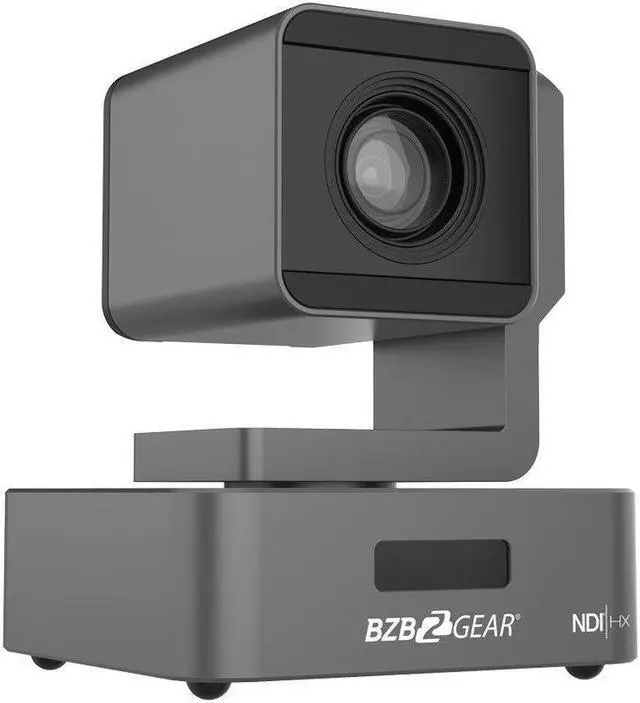

The BG-VPTZN-HSU3 is a compact 1080p HD PTZ camera. Designed with a compact footprint to unobtrusively blend into offices and classrooms, this performer is equipped with simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs.

Connectivity and Features

The BG-VPTZN-HSU3 camera can capture images at resolutions up to 1080p@60Hz. With simultaneous HDMI, 3G-SDI, USB 3.0, and IP streaming outputs this camera can integrate seamlessly with nearly any workflow. Available with 10X, 20X, or 30X optical zoom lenses, the BG-VPTZN-HSU3 produces detailed close-ups in even large venues.

The 3.5mm audio input jack allows the BG-VPTZN-HSU3 to embed audio directly into the video stream. The camera supports H.264 and H.265 video compression formats, and can broadcast in ONVIF, RTSP, and RTMP IP streaming protocols.

What is NDI?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices.

What is NDI|HX2?

NDI|HX2 is an updated version of NDI|HX1. NDI|HX2 also compresses the bandwidth, but is more efficient than NDI|HX1. With compressed bandwidth, users can have more devices on their LAN without running into latency issues. NDI|HX2 provides good quality output, low bandwidth and medium latency. The main difference compared to NDI|HX1 is that HX2 is truly a native NDI stream - all the way from the source device to the destination. This means it is a "cleaner" implementation than HX1 and can potentially be more reliable, provide lower latency and give a more flexible connection which shares all the usual features of NDI.

Control

This camera can be controlled using RS-232, RS-485, LAN, or IR remote control. There are various protocols supported including IP VISCA, ONVIF, and PELCO-P/D. There are 255 available preset positions that can be stored internally, with nine of those presets being available via IR remote control.

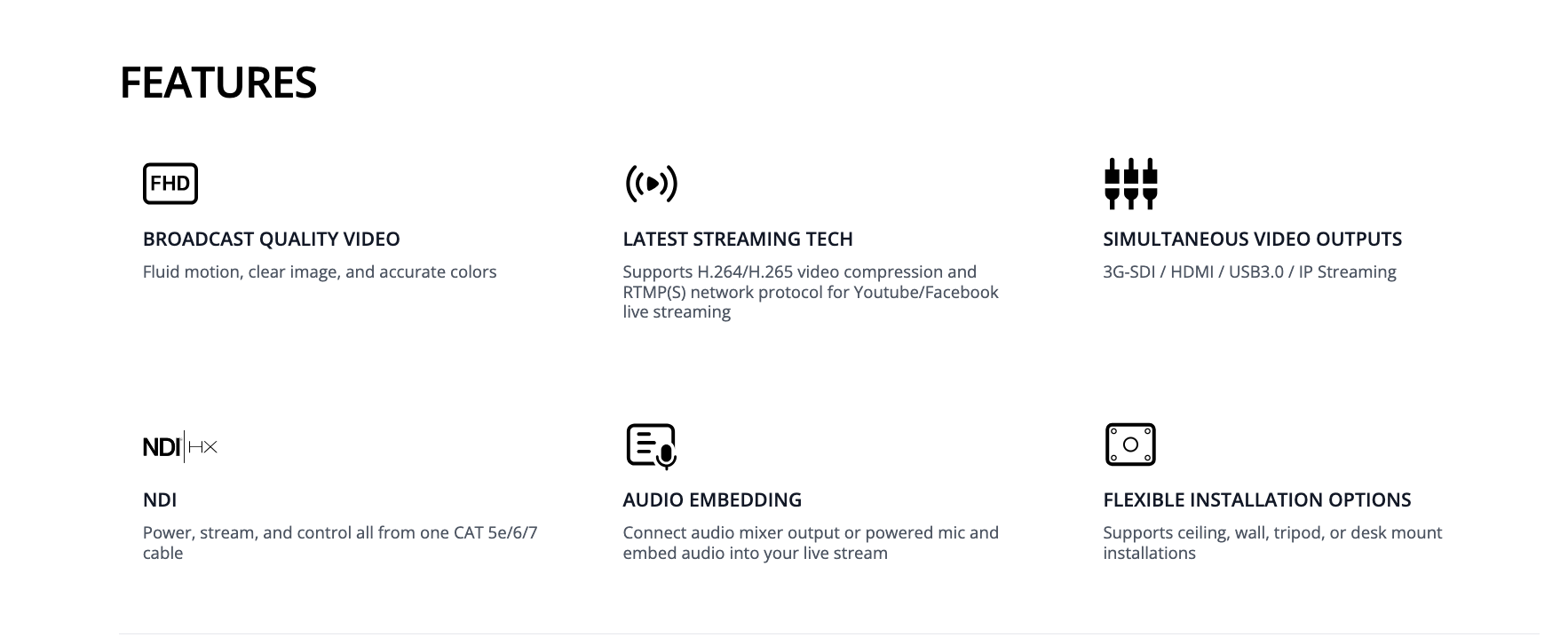

Features:

• Broadcast Quality Video - Fluid motion, clear image, and accurate colors
• Latest Streaming Tech - Supports H.264/H.265 video compression and RTMP(S) network protocol for Youtube/Facebook live streaming

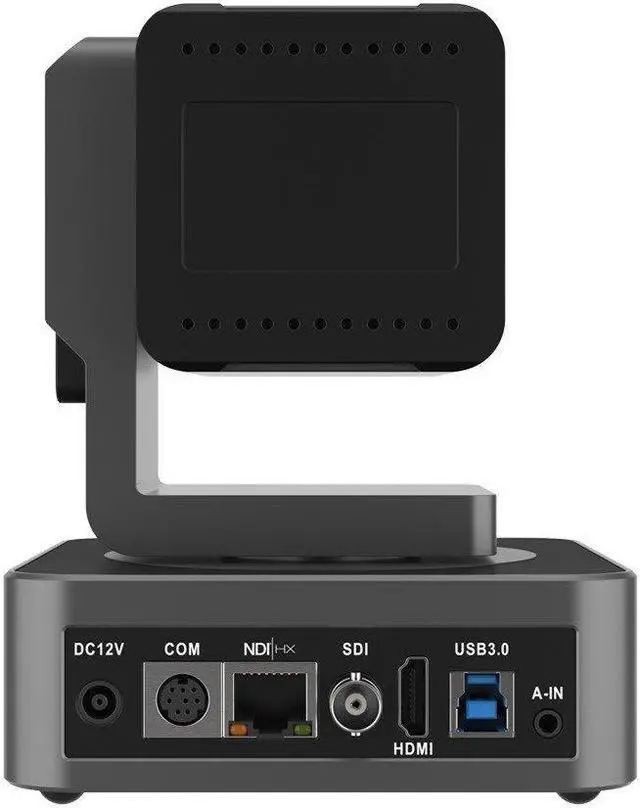

• Simultaneous Video Outputs - 3G-SDI / HDMI / USB3.0 / IP Streaming

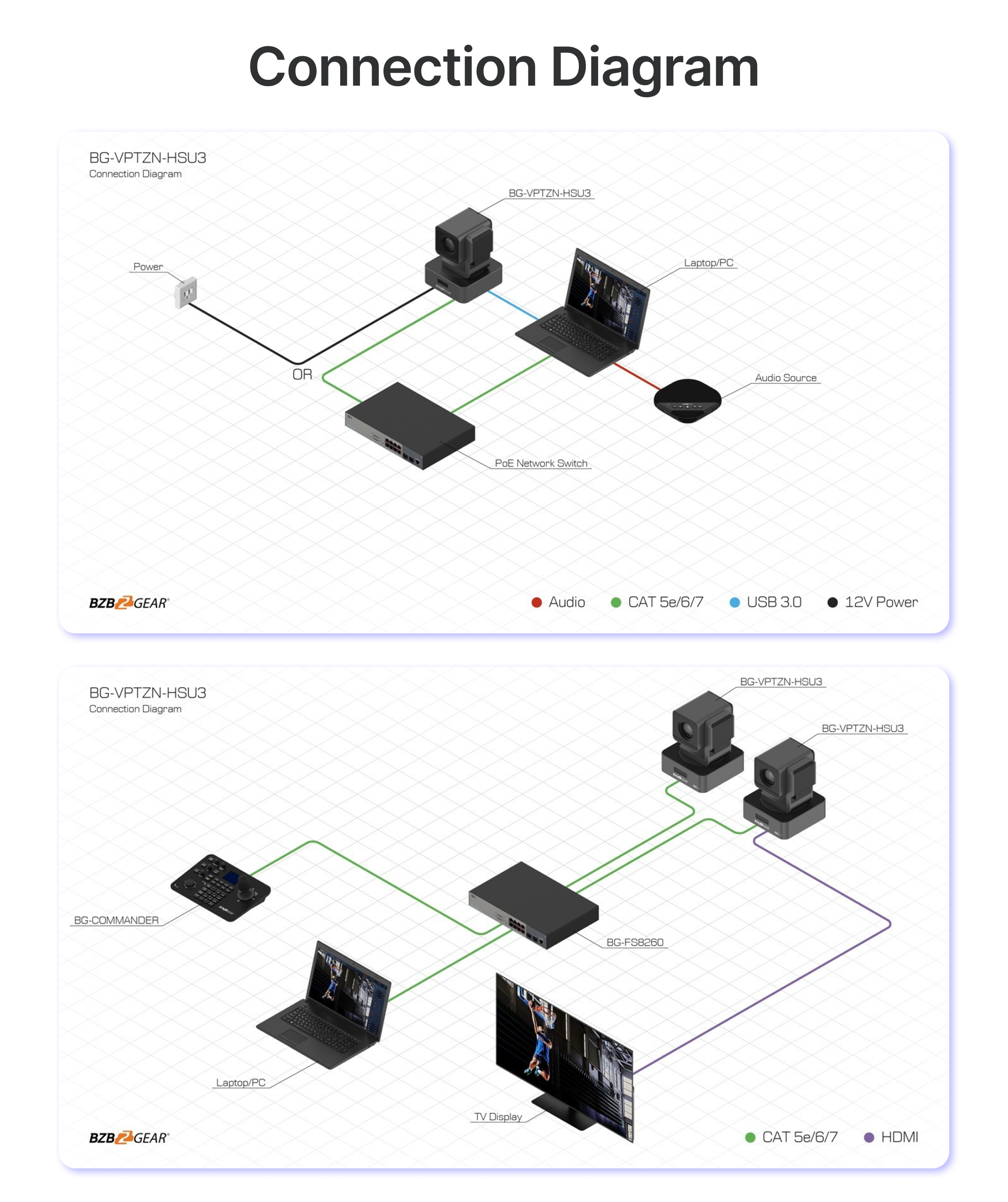

• NDI - Power, stream, and control all from one CAT 5e/6/7 cable
• Audio Embedding - Connect audio mixer output or powered mic and embed audio into your live stream

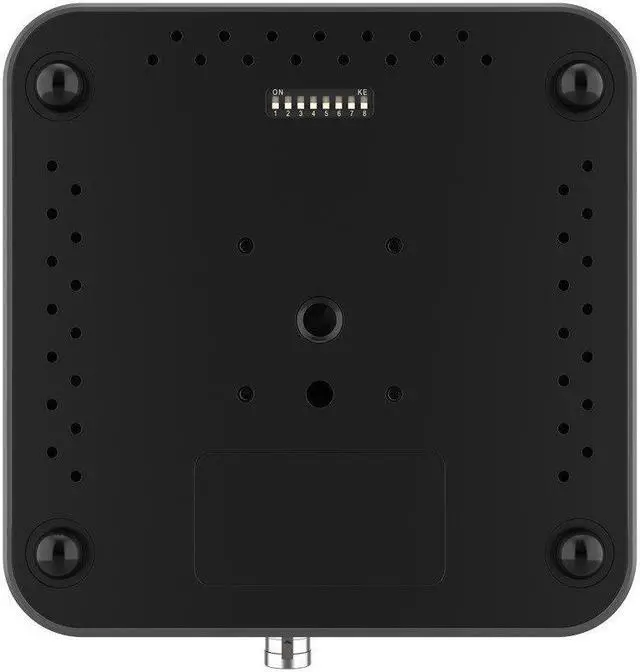

• Flexible installation Options - Supports ceiling, wall, tripod, or desk mount installations
• Multiple control options
• All-aluminum high-stability chassis
• AAC audio encoding support
• Smart menu & WebGUI Interface
• Resolutions up to 1080p@60Hz
• Advanced video image processing
• Includes 2D/3D noise reduction functions
• Small form factor for tight installs
• Main and sub streams available
