BZBGEAR 1080P FHD 20X Zoom HDMI/SDI/IP/NDI|HX Streaming Box Camera with Audio Input

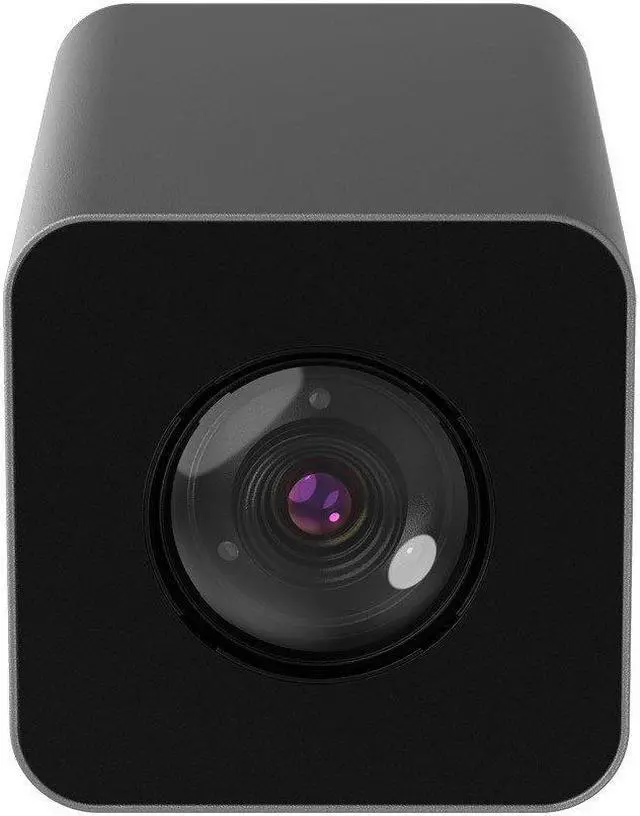

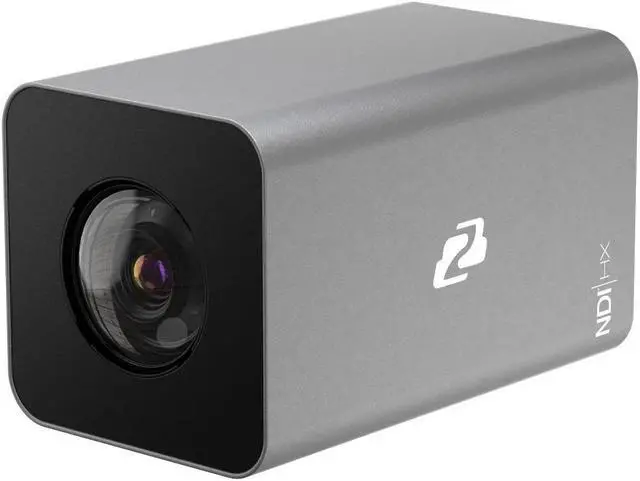

The BG-B20SHAN/BG-B30SHAN 20X/30X optical zoom IP-streaming camera utilizes a high-quality CMOS sensor to deliver crisp HD video signals. Its compact design provides versatile placement options and ease-of-use in a sleek low-profile housing. This camera is well-suited for a wide variety of broadcast and professional A/V applications including lecture streaming, education, room monitoring, studios, and more.

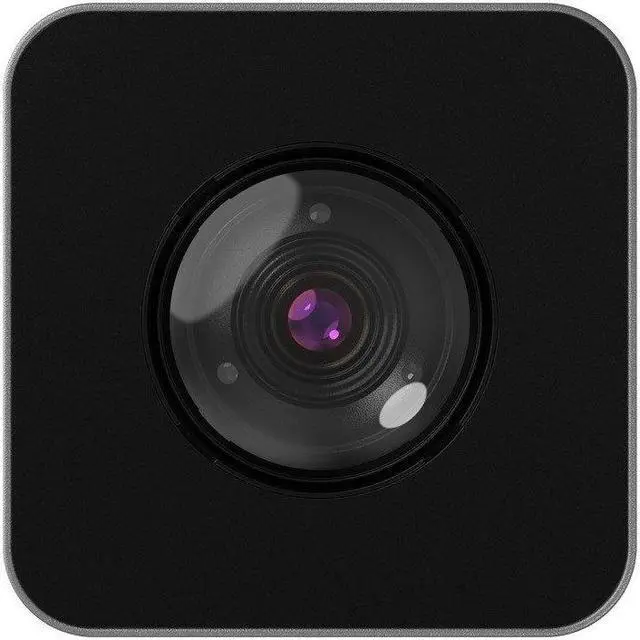

With a 1/2.8" Sony CMOS sensor, the BG-BSHAN series provides crystal clear imaging at resolutions up to 1080p@60Hz. The 20X/30X optical zoom lens allows the camera to capture tight close-ups, even at a distance.

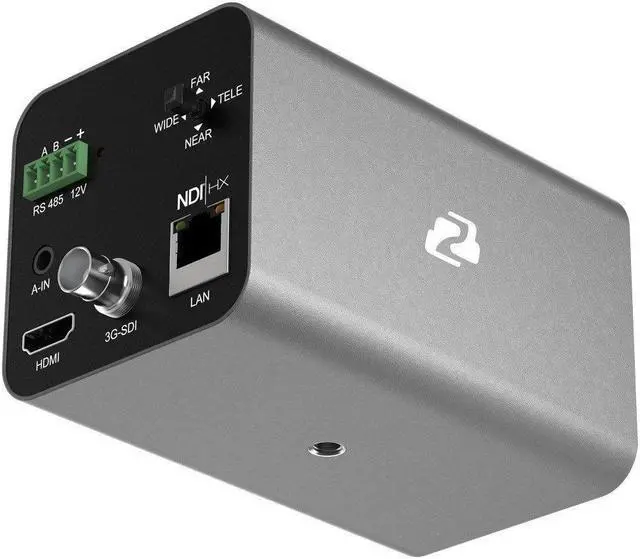

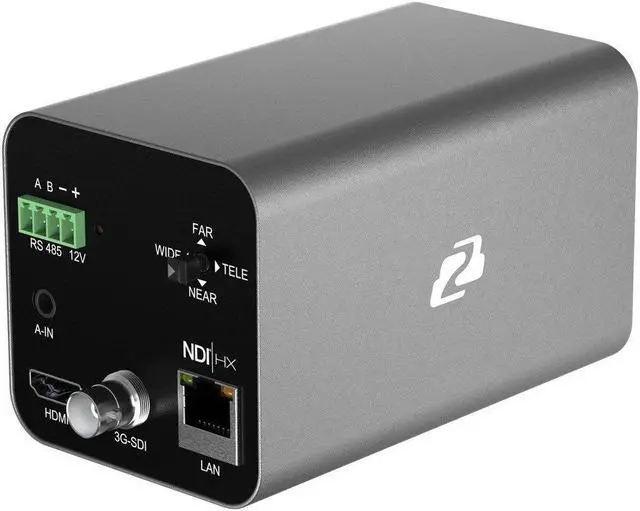

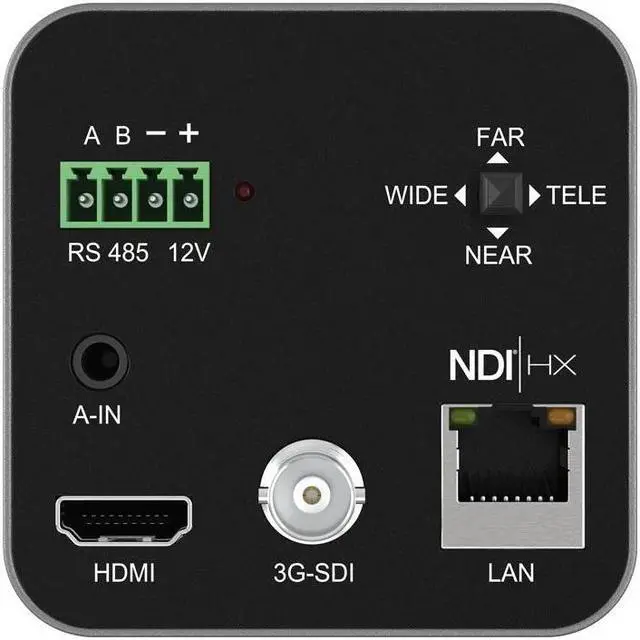

The BG-BSHAN series features simultaneous 3G-SDI, HDMI, and IP streaming outputs. By utilizing the 3.5mm audio input, audio can be embedded into your livestreams and recordings with ease.

WHAT IS NDI AND NDI|HX2?

Network Device Interface (NDI) is a high performance AV over IP standard that allows anyone to use real time, ultra low latency video on existing IP video networks. The NDI open protocol enables professionals to share video through a local area network (LAN) with video-compatible devices. With a single ethernet cable connection, professionals can merge all stages of production from start to finish. That way, all production tasks and processes will be united, so accomplishing a creative vision will be simple. With the NDI 5.5 tool-kit, users will also be able to connect any audio device as an NDI source with NDI’s Audio Direct tool. This adds audio over IP to NDI’s revolution.

NDI Toolkit

The NDI toolkit provides a collection of tools and plugins for NDI (Network Device Interface) video and audio streams. It includes tools for monitoring and displaying NDI video sources, sending test patterns for connectivity and calibration, analyzing network performance, routing NDI sources, integrating audio through plugins, facilitating secure remote connections, extending NDI streams beyond local networks, and offering a comprehensive suite for setup, testing, and management of NDI streams in diverse workflows.

Connectivity and Control

The BG-BSHAN series boasts support for a range of streaming protocols and compression formats, including ONVIF, RTSP, RTMP, and SRT. This empowers users with the capability to seamlessly stream content to platforms such as Facebook and YouTube. This array of outputs adds a remarkable level of versatility, making the BG-BSHAN series exceptionally adaptable for integration into diverse workflows.

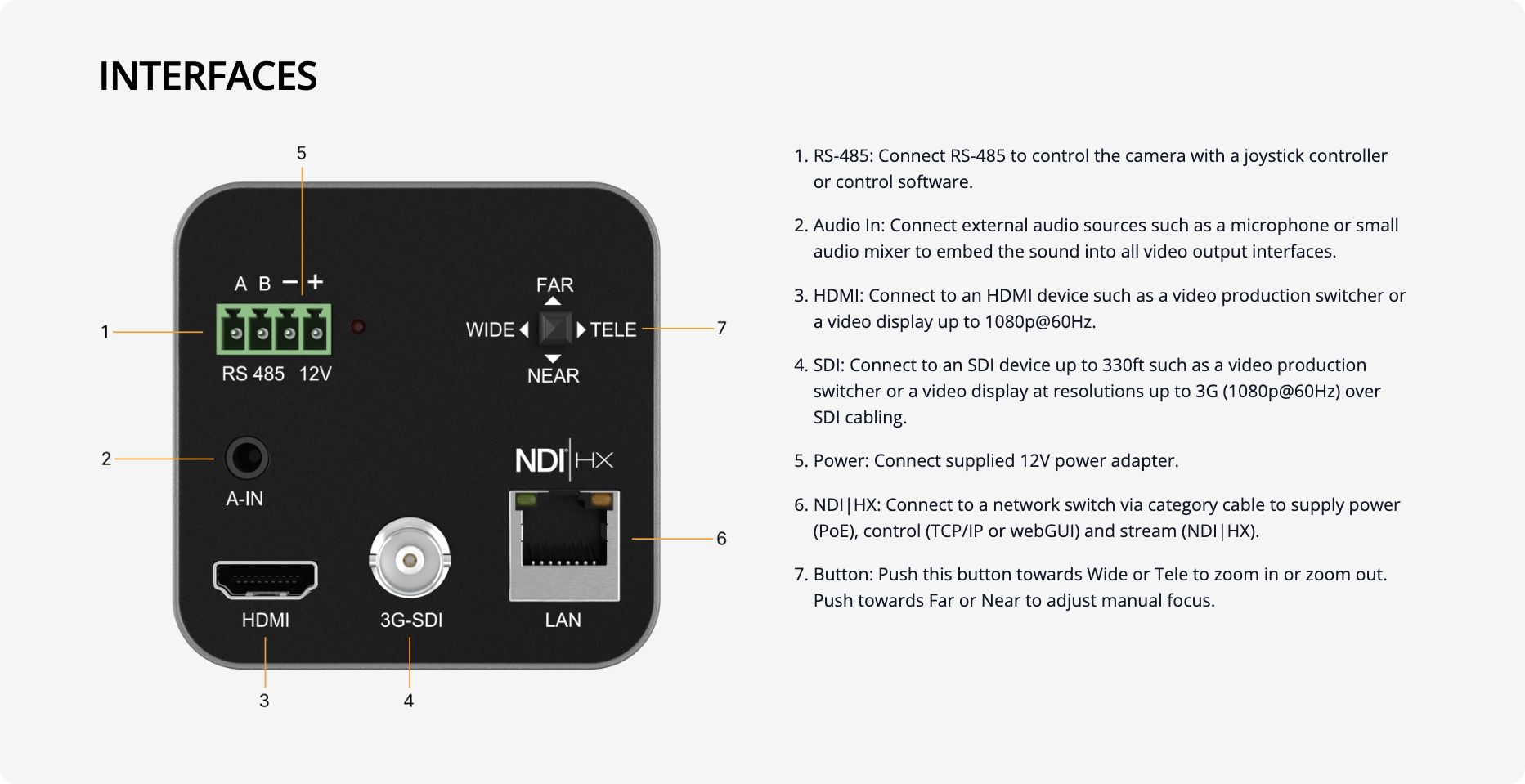

Tailored for deployment in remote settings, the BG-BSHAN series offers operational control through both serial (RS485) and Ethernet interfaces. Accompanied by a user-friendly web interface, a comprehensive suite of image adjustment functionalities is at your fingertips. Compatibility is further enhanced through support for PELCO-D, PELCO-P, VISCA, and IP-VISCA protocols, ensuring seamless integration with compatible joystick controllers.

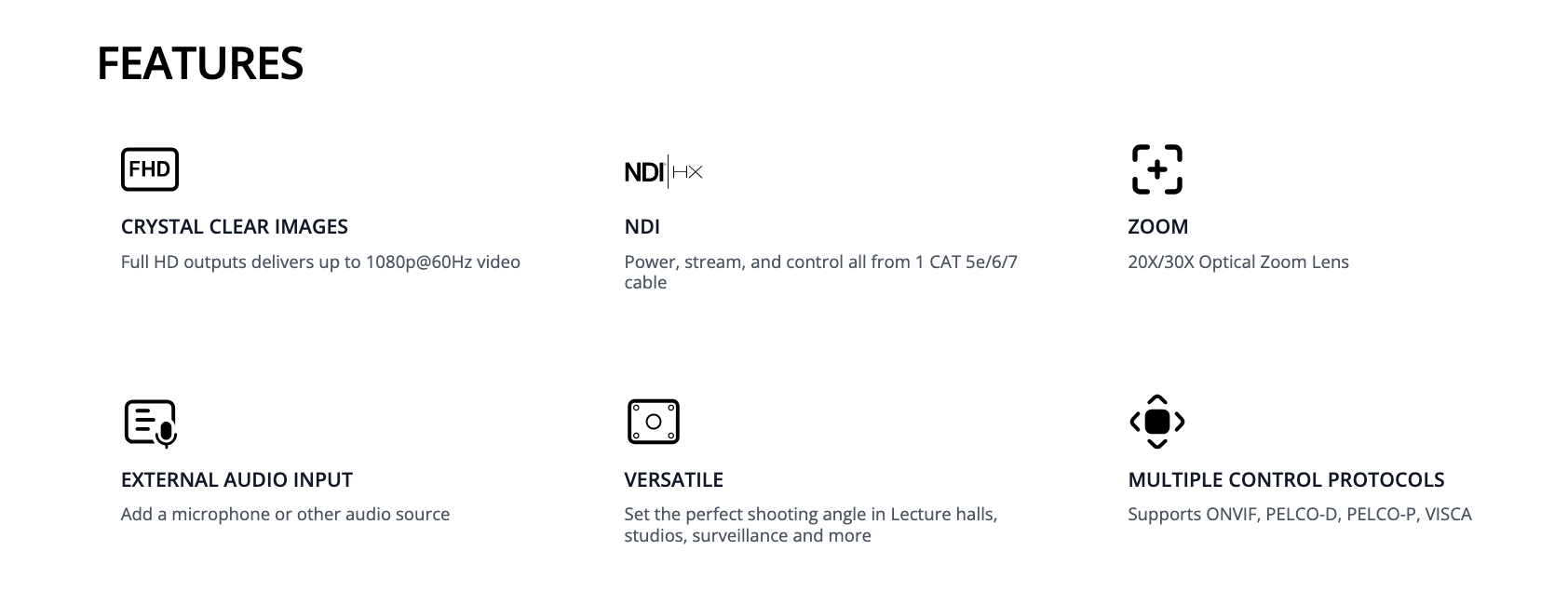

Features:

• Crystal Clear Images - Full HD outputs delivers up toKEY_TAB 1080p@60HzKEY_TAB video


• NDI - Power, stream, and control all from 1 CAT 5e/6/7 cable


• Zoom - 20X/30X Optical Zoom Lens


• External Audio Input - Add a microphone or other audio source


• Versatile - Set the perfect shooting angle in Lecture halls, studios, surveillance and more


• Multiple Control Protocols - Supports ONVIF, PELCO-D, PELCO-P, VISCA


• Multiple output resolutions available


• PoE capable for single cable installations


• Newly developed digital signal processor


• RS-485 & RS-232 serial control options


• 2D / 3D noise reduction


• Small form factor for tight installations


• On screen display menu


• H.265/H.264 encoding


• Auto white balance, iris, and focus options
