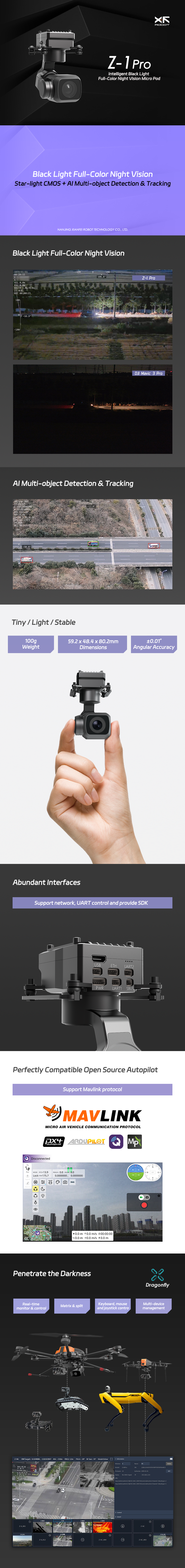

XF Robot-Z-1Pro Intelligent Black Light Night Vision Micro Pod AI-Powered Full-Color Low-Light Imaging & Multi-Object Tracking

Product Description

AllXF Z-1Pro Advanced AI-Enhanced 4K Night Vision Pod for Precision Tracking & Imaging

The AllXF Z-1Pro is a next-generation intelligent night vision pod designed for ultra-low-light full-color imaging, AI-based object tracking, and high-precision stabilization. Featuring a 1/1.8-inch star-light CMOS sensor, powered by an AI-ISP full-color night vision engine, the Z-1Pro delivers exceptional visibility and color accuracy in extreme low-light conditions.

With AI-driven multi-object detection, the Z-1Pro intelligently identifies and continuously tracks persons and vehicles, ensuring real-time monitoring with high-speed accuracy. Its 3-axis nonorthogonal mechanical stabilization system, combined with dual-IMU algorithms and temperature-controlled carrier AHRS fusion, provides a stabilization accuracy of ±0.01°, ensuring smooth and vibration-free performance.

Seamlessly integrates with network, UART, and S.BUS control protocols, supporting MAVLink and private protocol compatibility, along with image transmission via network and HDMI. The Z-1Pro is fully compatible with Dragonfly software for real-time monitoring & control and can be integrated with QGC for autopilot synchronization.

Key Features

AI-Powered Full-Color Night Vision AI-ISP imaging engine enhances full-color clarity in extremely low-light environments. Advanced AI Object Detection & Tracking Detects and intelligently tracks persons and vehicles, with a sub-40ms identification delay.

Precision 3-Axis Stabilization Dual-IMU stabilization, IMU temperature control, and carrier AHRS fusion ensure ±0.01° stabilization accuracy. High-Resolution Imaging 1/1.8-inch CMOS sensor, 2.9m pixel size, and full-color night vision deliver sharp, detailed images in darkness.

Seamless Real-Time Control Supports network, UART, and S.BUS control, with image transmission through network & HDMI. Customizable Integration Works with Dragonfly software for real-time image monitoring & QGC for autopilot integration.

Advanced OSD & EXIF Metadata Supports onscreen overlay of latitude, longitude, altitude, and EXIF metadata for shooting coordinates.

Lightweight & Versatile Mounting Compact 100g design, can be mounted in downward or upward orientations.

Reliable Storage & Video Encoding Supports U3/V30 microSD cards up to 256GB, H.264 & H.265 encoding, 2K MP4 recording, and 1080p streaming.

Wide Voltage Input Operates on 10V to 26.4V DC, ensuring compatibility across multiple platforms.

Technical Specifications

Product Name: AllXF Z-1Pro Intelligent Black Light Night Vision Micro Pod

Dimensions: 59.2 x 48.4 x 80.2 mm

Weight: 100g

Operating Voltage: 10V ~ 26.4V DC

Power Consumption: 6W (Average) / 20W (Stall)

Mounting Options: Downward / Upward

Gimbal Performance:

Stabilization Type: 3-Axis Nonorthogonal Mechanical Stabilization

Angular Accuracy: ±0.01°

Controllable Range:

Pitch: -135° ~ +100°

Roll: ±50°

Yaw: ±150°

Maximum Controllable Speed: ±200°/s

Camera Specifications:

Sensor: 1/1.8-inch CMOS, 4.09M Effective Pixels

Lens: 8.5mm Focal Length, f/1.0 Aperture

Field of View (FOV):

HFOV: 57.1°

VFOV: 30.4°

DFOV: 66.3°

Resolution: 2688(H) x 1520(V)

Pixel Size: 2.9m x 2.9m

Digital Zoom: 6x

AI Object Detection & Tracking:

Detection Delay: <40ms

Tracking Speed: ±32 px/field

Refresh Rate: 30Hz

Tracking Deviation Output Delay: 5ms

Image & Video Processing:

Image Format: JPEG

Maximum Image Resolution: 2688 x 1520

EXIF Metadata: Shooting coordinates

Video Format: MP4

Maximum Streaming Resolution: 1920 x 1080 @30fps

Maximum Recording Resolution: 2560 x 1440 @30fps

Encoding Formats: H.264, H.265

Network Protocol: RTSP

Storage: MicroSD Support: U3/V30 or higher, up to 256GB

Environmental Durability: Operating Temperature: -20°C ~ 50°C

Storage Temperature: -40°C ~ 60°C

Humidity Resistance: 85% RH (Non-condensing)

Why Choose the AllXF Z-1Pro?

Designed for high-performance night vision imaging, AI-based tracking, and real-time monitoring, the Z-1Pro delivers industry-leading full-color low-light clarity, intelligent object detection, and precision stabilization. Its compact yet powerful design, multi-platform compatibility, and seamless software integration make it the perfect solution for professional imaging and tracking applications.

Enhance your low-light imaging capabilities with the AllXF Z-1Pro Order Now!
