4'' 30X ZOOM 4in1 AHD/TVI/CVI/CVBS 1080P 2MP PTZ High Speed Dome IR Night Camera
- NoteThe default mode is AHD
- Features:
- Definition:1080P

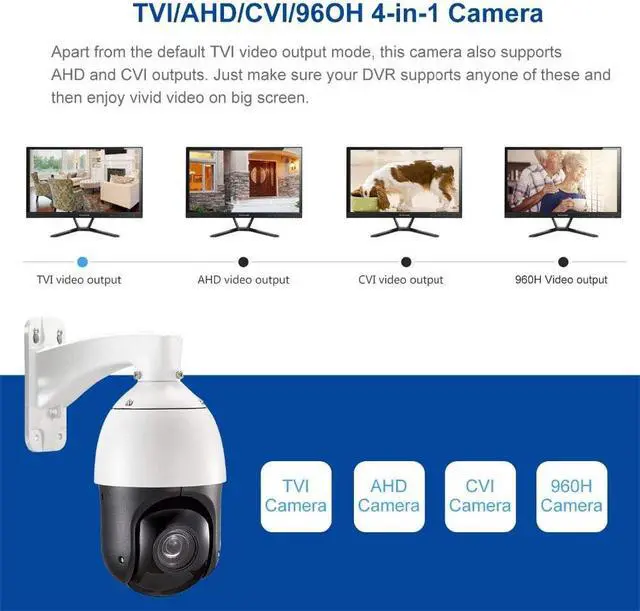

- Video output: 4-in-1 1080P(AHD/CVI/TVI), 960H(CVBS)
- Sensor:Sony IMX307
- Lens:30X Opticalzoom, 4.7-141mm
- High speed dome
- Coaxial control(AHD mode)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
- 4PCS ceramicpackagearray LEDS+ 2PCS Laser LEDs,auto-switch to long/middle/close distance focus,IR distance 80m.
- Full metal aluminum die-casting, all-weather environment design,high and low temperature resistant,waterproof to IP66.
- Using high precision synchronous reduction motor, with high performance motor drive, control precision,stable movement, small vibration.
- IR features: 3 groups of lighting control,auto-switch to long/middle/close distance focus

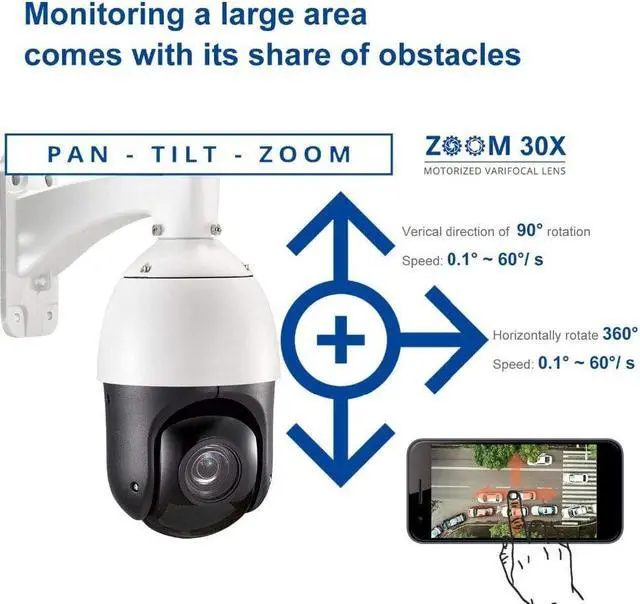

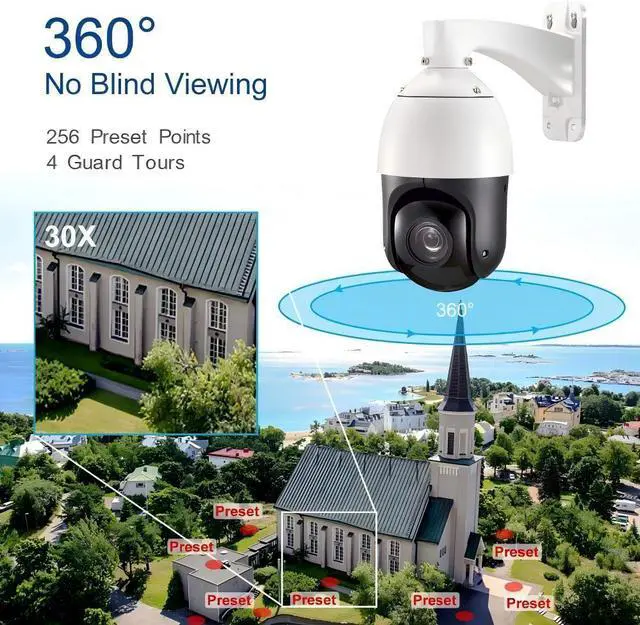

- 360° continuous rotation,no monitoring blind area.Horizontal Rotation Speed 0.1°~100°/s, Vertical rotation speed0.1°~100°/s.
- 255 presets, the position ingaccuracy of 0.5 degrees.
- Support: Guard position/Power up Action /Park action/3 groups Tours/Pattern/Area scanning/360° horizontal scanning.
Specifications:
| Model | |
| Camera | |
| sensor | 1/2.8"CMOS |
| Definition | 2.0Mpixels 1920(H)X1080(V) |
| Video System | PAL/NTSC |
| Minimum illumination | Colour:0.1LuxB/W:0.01Lux |
| Video output | AHD-H(1Vp-p 75) |
| noise-signal ratio | 50DB |
| Lens | |
| lens | 4.7 to 141mm(F1.6 toF2.7) 30X Optical zoom |
| Zoom Speed | Approx.4s (Optical Wide-Tele) |
| Angle of View: | 55.4°-2.9°(Wide-Tele) |
| PTZ Control funtion | |
| IRDistance | 80m |
| HorizontalRange | 0°~360° continuously |
| VerticalRange | -15°~90° |
| Horizontal Speed | 0.05°~100°/s |
| Vertical Speed | 0.05°~100°/s |
| MaxSpeed | 240°/S |
| Preset | 256 |
| Patrol scan | 4pcs(10preset for each) |
| L/RScan | 1pc |
| Horizontal Scan | 1pc |
| Power-off memory | Support |
| PARKAction | Watch position/Area Scan /Horizontal 360°scan/Cruise |
| Watch position | Support |
| Wide angle speedlimit | Focus / speed automatic matching function |
| INPUT/OUTPUT | |
| Analog video output | 1.0Vpp/75,NTSC orPAL,BNCInterface |
| control interface | Support:1. Coaxial control 2.RS485 |
| General | |
| Power | DC12V/2A |
| Consumption | <15W |
| workenvironment | temperature :-20~60;humidity<90% |
| Protection level | IP66 waterproof,4000Vlightning protection |
| GW | 2.35KG |
