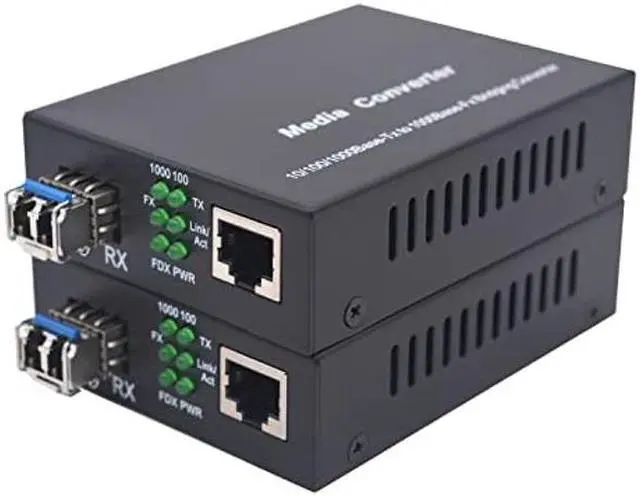

Single Mode LC Gigabit Fiber Media Converter - Include 2 LC SFP Transceiver 20Km (12.4 Miles), Wavelength 1310nm, LC to UTP Cat5e 10/100/1000 RJ-45 -Gigabit Ethernet Speed, 2 Pack
- Fiber Port: 20KM SFP transceiver included (1.25G, Single-mode, Wavelength 1310nm).
- Fiber Type: SFP SMF, Dual LC fiber.

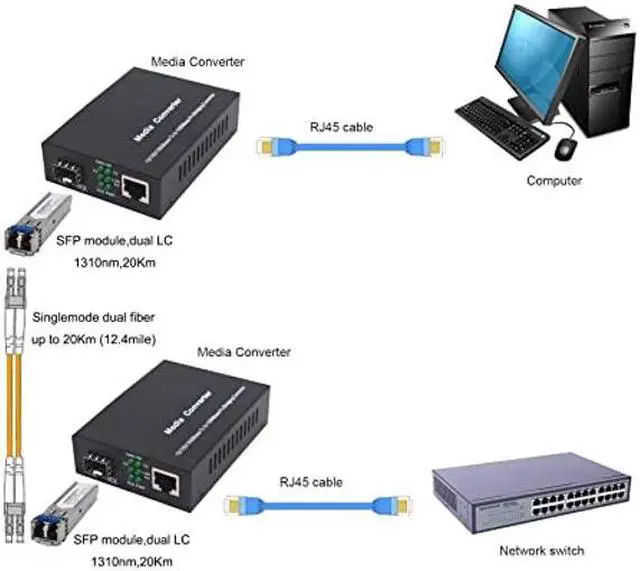

- AUTOMATICALLY adapts to 10/100/1000M(Gigabit)bit/s Speed And Extends it over Single Mode Fiber to up to 20 km(12.4miles). Use it with Single Mode Fiber Only.
- Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
- PLUG & PLAY Fiber Media Converters - Simply plug in SFP LC port and UTP RJ-45 port, it will work immediately.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
1.
Dimensions: 95x72x27mm (LxWxH)
2. Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3. Power Dissipation <=3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0degC to 60degC.
5.
Storage temperature: -20degC to 70degC.
Humidity: 5% to 90% RH.
Product content:
2x Gigabit Ethernet Fiber Media Converter.
2x SFP LC Single-Mode module (1310nm, up to 20KM).
2x External Power Adapter (US standard),
Output voltage: 5V DC/1A, UL Certified.
1x Product Manual.
LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off
2.
TP: Light on when TP speed is 1000Mbps, else light off
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5.
PWR: Light on when DC power on, else light off.
1.
Dimensions: 95x72x27mm (LxWxH)
2. Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3. Power Dissipation <=3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating
temperature: 0degC to 60degC.
5.
Storage temperature: -20degC to 70degC.
Humidity: 5% to 90% RH.
Product content:
2x Gigabit Ethernet Fiber Media Converter.
2x SFP LC Single-Mode module (1310nm, up to 20KM).
2x External Power Adapter (US standard),
Output voltage: 5V DC/1A, UL Certified.
1x Product Manual.
LED Indicators
1.
FP: Light on when fiber speed is 1000Mbps, else light off
2.
TP: Light on when TP speed is 1000Mbps, else light off
3.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5.
PWR: Light on when DC power on, else light off.
