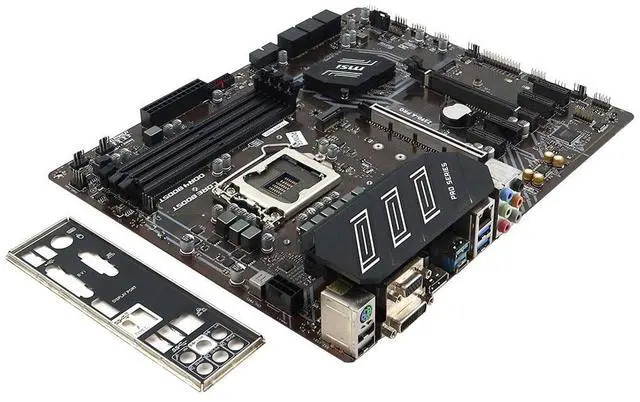

601-7B98_UA1 MSI Z390-A PRO Intel Chipset Z390 Socket LGA1151 DDR4 DVI VGA DP ATX Motherboard Intel LGA1151 Motherboard

Model: 601-7B98_UA1
Compatible Part Numbers: MS-7B98 601-7B98-030 7B98-030 7B98/030
Chipset: Intel Z390
Socket: Intel LGA1151
Compatible/Supported CPU: 9th/ 8th Gen Intel Core / Pentium Gold / Celeron processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4400MHz(O.C)/4300MHz(O.C.)/4266MHz(O.C.)/4200MHz(O.C.)/4133MHz(O.C.)/4000MHz(O.C.)/3866MHz(O.C.)/ 3733MHz(O.C.)/3600MHz(O.C.)/3466MHz(O.C.)/3400MHz(O.C.)/3300MHz(O.C.)/3200MHz(O.C.)/3000MHz/2933MHz/2800MHz/2666MHz/2400MHz/2133MHz
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10
Wireless Lan Support: Intel I219-V Gigabit LAN controller
Audio: Realtek ALC892/897 Codec
Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 6-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x M.2 slots (1 M-Key slot,1 E-Key slot); 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin Water Pump connector; 5x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x 4-pin RGB LED connector; 1x Serial Port connector; 1x Clear CMOS jumper; 1x Parallel port connector; 1x TPM module connector; 1x thunderbolt Add-on card connector; 1x Front OC button connector.
Input/Output Ports: 1x PS/2 Combo; 1x VGA; 1x USB 3.1 Gen2 Type A+C; 1x LAN; 6x HD Audio Connectors; 2x USB 2.0; 1x DVI-D; 1x Displayport; 2x USB 3.1.
Expansion Slots: 2x PCIe 3.0 x16 slots(support x16/x4 mode); 4x PCIe 3.0 x1 slots; 1x M.2 slot with E key for Integrated Intel Wireless-AC(CNVi) module only.
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit
Features: Supports 9th / 8th Gen Intel Core / Pentium Celeron processors for LGA 1151 socket; Supports DDR4 Memory, up to 4400(OC) MHz; Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.; Core Boost, DDR4 Boost; Audio Boost: Reward your ears with studio grade sound quality.; Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.; Intel LAN:Premium network solution from Intel for professional and multimedia use. Delivers a secure, stable and fast network connection.; Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire; Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds.

Please note, this motherboard comes with I/O Shield and fan backplate only! No cables or any other accessories!

• Used Very Good Condition
• 100% Fully Guaranteed Functional
• No accessories (cables/manuals) included unless otherwise stated in the ad
• Item comes as shown in the listing photos
• 30 Days for refund or replacement
• Hassle free return policy
• Most orders ship either same day or within 24 hours
• All items are carefully inspected and packaged prior to shipping
• Please check your original part# and match with the part number being ordered. Most parts are not interchangeable.
