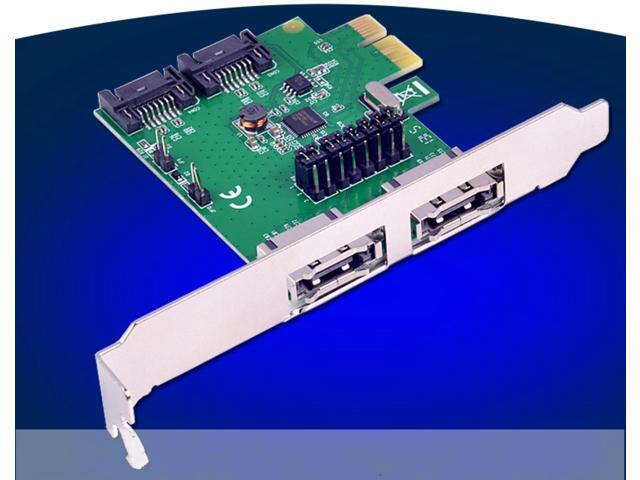

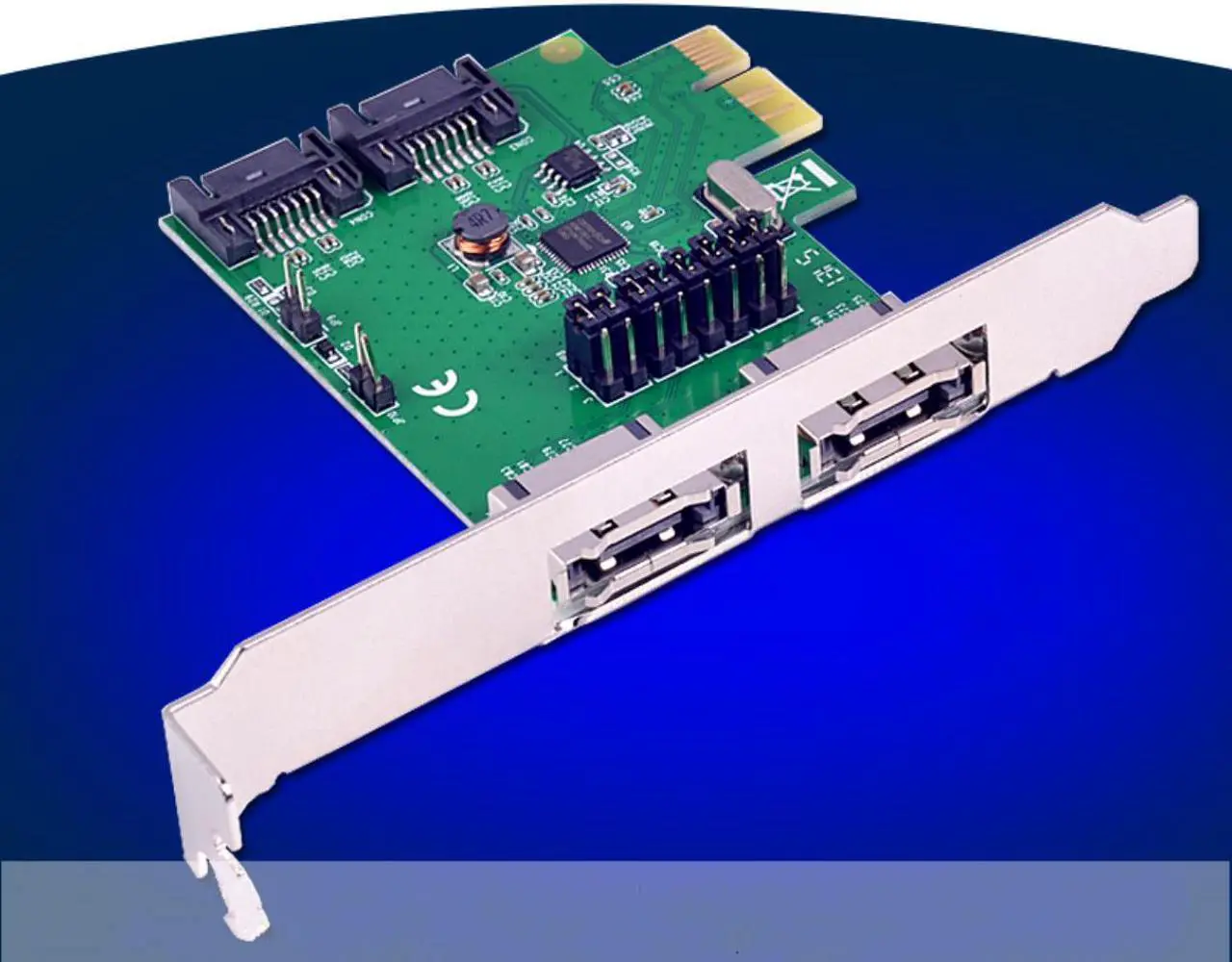

2 Ports Internal SATA 3.0 PCI-Express Host Controller Card + 2 Port External eSATA

Package:Yes
Model Number:xb030
Type:SATA+eSATA Cards
Interface Type:PCI Express

Product description:
Expansion card from the PCI Express 1-Lane 2.0 interface expansion of two SATA 6Gbps interface, in line with serial ATA 3.0 specification, backward compatible with SATA 1.5Gbps and 3.0Gbps serial device. Array card design two LED indicator pin, One on the motherboard HDD pin, a chassis front panel HDD indicator, this can show the array card and motherboard device read and write status, two sets of jumper, you can choose to use the array card built-in SATA interface or external eSATA interface.
General parameters:
Compliance with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
Meets IDE ATA Bus Management Protocol Revision 1.0
Compliant with PCI Express Specification Revision 2.0 and backward compatible with Revision 1.0a
Compliance with Serial ATA High Speed ??Serialized AT Attachment Specification Revision 1.0a
Compliant with Serial ATA II specification
PCI Express 1-Lane bus bandwidth of 5.0 / 2.5Gbps
Board Size: 120.0mm (H) x 67.0mm (L) x 20.6mm (T) (approx.)
Serial ATA (SATA) interface:
2 built-in SATA 6G interface with 2 external SATA ports (selectable via jumper)
2 SATA devices point to point connection
Compliant with Serial ATA 3.0 specification
Backward compatible with SATA II (3.0Gbps) and SATA I (1.5Gbps)
Support startup mode
Support Native Command Queuing (NCQ) functionality
Support FIS port multiplier function (Port Multiplier)
Support SATA hot swap
Support system:
Support Windows 8 / Windows 7 / Vista / XP / 2000 / Server2003-2008 32/64-bit, Linux
Packing details:
1 x PCI-Express SATA 6G Card
1 x User Manual
1 x Driver CD
