NanoPi NEO3 Mini Development Board RK3328 Gigabit Ethernet Port 2GB Large Memory OpenWrt/LEDE

Certification:NONE
Origin:CN(Origin)
State of Assembly:Ready-to-Go
Compatibility:All Compatible
Bundle:1
Camera Equipped:No
Model Number:NanoPi NEO3

NanoPi NEO3 Mini Development Board RK3328 Gigabit Ethernet Port 2GB Large Memory OpenWrt/LEDE
WiKi Wiki tutorial (including learning tutorials, schematic diagrams, size diagrams, etc.)
//wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO3/zh
System firmware download
//download.friendlyarm.com/nanopineo3
Source code download
https://github.com/friendlyarm
Schematic (pdf format)
//wiki.friendlyarm.com/wiki/images/a/ae/NanoPi-NEO3-2005-Schematic.pdf
Dimensions (dxf format)
//wiki.friendlyarm.com/wiki/images/6/6e/NanoPi_NEO3_2005%28dxf%29.zip
Standard

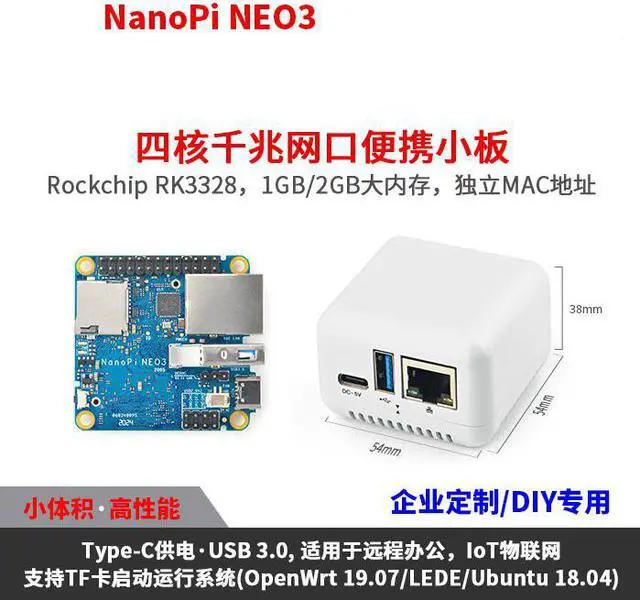

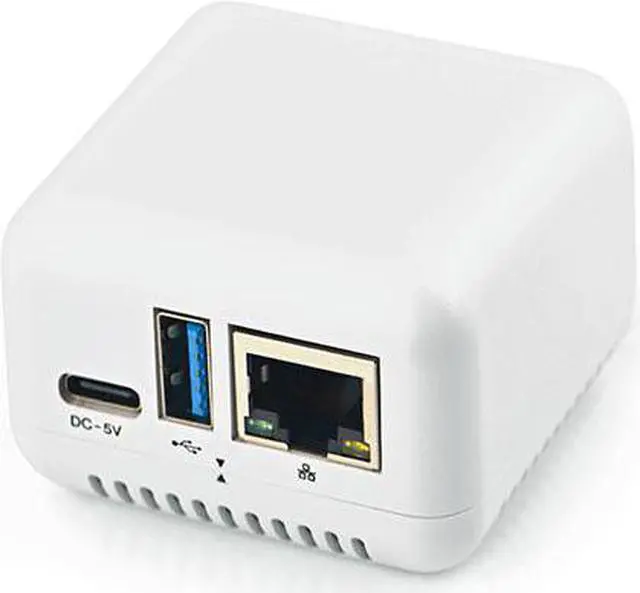

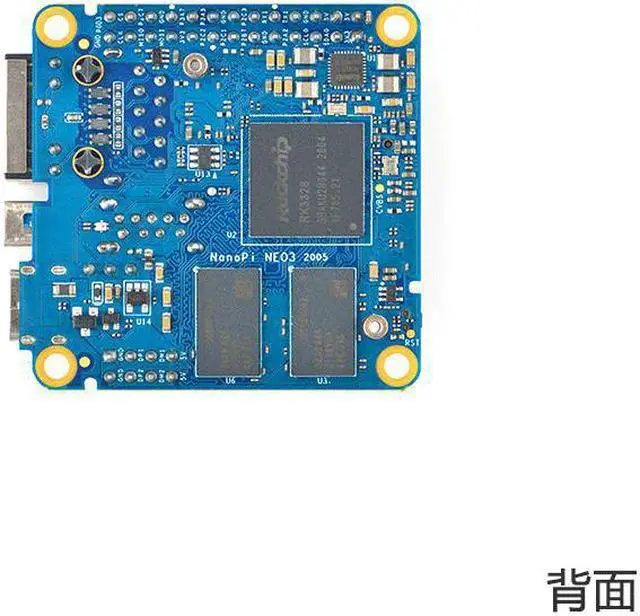

Nanopi NEO3 single board or whole machine (single board + mini heat sink + shell, already assembled)
CPU Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GHz
Memory RAM: 1GB/2GB 32-bit DDR4
Storage MicroSD Slot: MicroSD x1 for external storage up to 128GB
Connectivity Ethernet: Gbps Ethernet x1 with unique MAC
USB USB 3.0 Host x1: USB Type A
USB 2.0 Host x2: 2.54mm 4x2pin-header
Type-C x1: Power Input Only
Pin-header GPIO: 2.54mm pitch 26pin-header, include I2C, UART, SPI, I2S, GPIO
Serial Debug Port x1: 2.54mm pitch 3pin-header, 115200bps
Key User Key x1
LED PWR LED(Red) x1
STAT LED(Green) x1
Others Working Temperature: -20? to 70?
Power DC 5V/2A
OS Support FriendlyWrt 19.07-snapshot (64-bit)
Ubuntu Core 18.04 (64-bit)(Linux-5.4 + U-boot-2017.11)
PCB 6 Layer
Dimension 48 x 48 mm
Weight 22g (Without Case)
