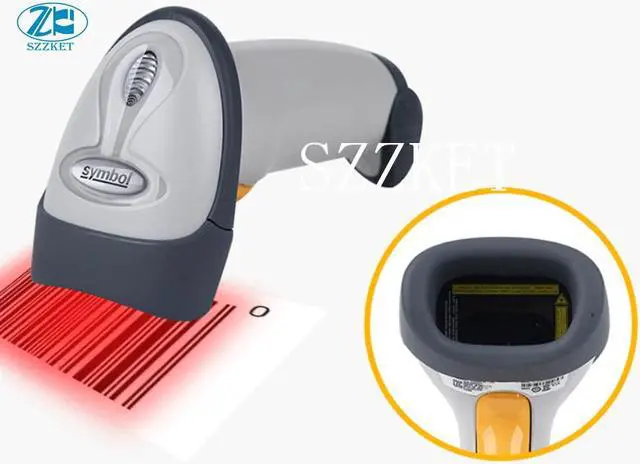

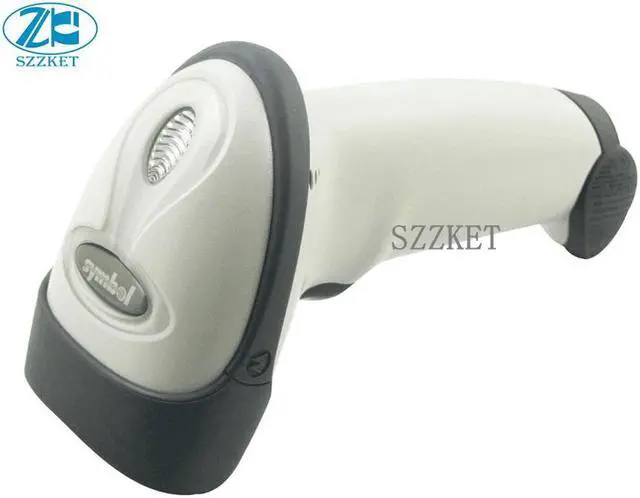

Symbol LS2208 bar code scanner laser scanner, bar code reader LS-2208 for Motorola Symbol
- Symbol LS2208 bar code scanner laser scanner, bar code reader LS-2208 for Motorola Symbol
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type:Barcode Scanner
Optical Resolution:600*1200
Scan Element Type:CIS
Scan Breadth:A4
Scan Speed:100 scans/second
Interface Type:USB
Model Number:LS2208
Colour Depth:32 Bit
Product Type:Bar Code Scanner
Scanning Light Source:Natural Light+LED
bar code scanner Symbol
LS2208
laser scanner, bar code reader LS-2208 for Motorola Symbol
ls2208ap wired one-dimensional scanning gun specifications:
Voltage: 5V ± 10%
Current: Standard 130mA, maximum 175mA
Power: Host power or external power supply
Scanner Type: Bidirectional
Light source: 650nm visible laser diode
Scan Rate: Typically 100 scans per second
Working Distance: 100% UPC / EAN pattern can be scanned normally from direct contact to 17in./43cm scanning distance
Printing contrast: a minimum of 20% reflection difference
Rotation angle: +/- 30 degrees
Tilt angle: +/- 65 degrees
Offset viewing angle: +/- 60 degrees
Decoding Capabilities: UPC / EAN, UPC / EAN with Supplementals, UCC / EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, Chinese 2 of 5
Support Interface: RS232, keyboard socket, Wand, IBM 468X / 9X, USB, Synapse and Undecoded
Environmental parameters:
Operating temperature: 32 ° F to 122 ° F (0 ° C to 50 ° C)
Storage temperature: -40 ° F to 158 ° F (-40 ° C to 70 ° C)
Humidity: 5% to 95% relative humidity (non-condensing)
Seismic capacity: Dropped from 5ft./1.5m to concrete floor for many times and still work normally
Ambient lighting: No effect on normal office and factory lighting or direct exposure to sunlight
Electrostatic discharge: In line with 15 kV air discharge and 8 Kv contact discharge requirements
Mandatory:
Electrical Safety: Complies with UL1950, CSA C22.2 No. 950, EN60950 / IEC950, EMI / RFI FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI / MITI / Dentori.
Laser Safety: CDRH Class II, IEC Class 2
Optical Resolution:600*1200
Scan Element Type:CIS
Scan Breadth:A4
Scan Speed:100 scans/second
Interface Type:USB
Model Number:LS2208
Colour Depth:32 Bit
Product Type:Bar Code Scanner
Scanning Light Source:Natural Light+LED
bar code scanner Symbol
LS2208
laser scanner, bar code reader LS-2208 for Motorola Symbol
ls2208ap wired one-dimensional scanning gun specifications:
Voltage: 5V ± 10%
Current: Standard 130mA, maximum 175mA
Power: Host power or external power supply
Scanner Type: Bidirectional
Light source: 650nm visible laser diode
Scan Rate: Typically 100 scans per second
Working Distance: 100% UPC / EAN pattern can be scanned normally from direct contact to 17in./43cm scanning distance
Printing contrast: a minimum of 20% reflection difference
Rotation angle: +/- 30 degrees
Tilt angle: +/- 65 degrees
Offset viewing angle: +/- 60 degrees
Decoding Capabilities: UPC / EAN, UPC / EAN with Supplementals, UCC / EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, Chinese 2 of 5
Support Interface: RS232, keyboard socket, Wand, IBM 468X / 9X, USB, Synapse and Undecoded
Environmental parameters:
Operating temperature: 32 ° F to 122 ° F (0 ° C to 50 ° C)
Storage temperature: -40 ° F to 158 ° F (-40 ° C to 70 ° C)
Humidity: 5% to 95% relative humidity (non-condensing)
Seismic capacity: Dropped from 5ft./1.5m to concrete floor for many times and still work normally
Ambient lighting: No effect on normal office and factory lighting or direct exposure to sunlight
Electrostatic discharge: In line with 15 kV air discharge and 8 Kv contact discharge requirements
Mandatory:
Electrical Safety: Complies with UL1950, CSA C22.2 No. 950, EN60950 / IEC950, EMI / RFI FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI / MITI / Dentori.
Laser Safety: CDRH Class II, IEC Class 2
