Nvarcher NAND FLASH Burner NANDLite Flash Memory Programmer Router For LCD TV

Origin:CN(Origin)
Model Number:AND FLASH

https://pan.baidu.com/s/1JPQ96FymBICxSYUk7nQrbA
cymq

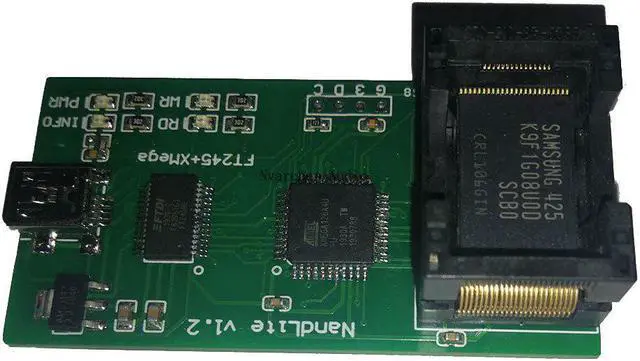

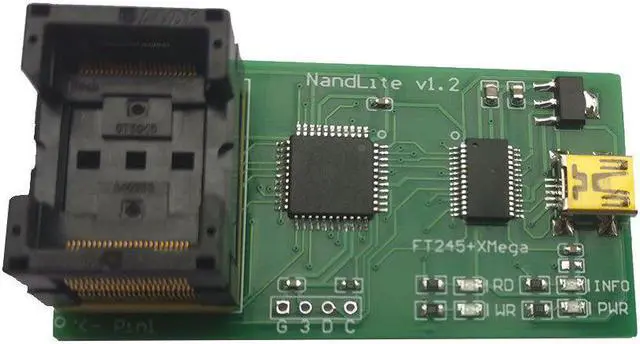

This version conforms to 1.2 hardware circuit, and the computer software is written by C#.
TSOP48 3.3V supports most flash NAND on the market
Support SLC, MLC and TLC memory
Support up to 4 CE lines
8-bit data bus support
Automatically recognize the programmed system
Support reading ONFI register (1.0-4.0)
Hardware protection to prevent accidental writes
Burst mode data transmission: 8 Mbps
With the function of recording read and write time
Soft version 1.0.1014.89
Programmable repair of Samsung d5500 TV K9GAG08U0E data
[This programmer is more suitable for NAND flash memory with smaller capacity such as 1G08, 2G08, 4G08, and larger capacity such as 8G08, 16G08, 32G08, etc., which can be read, but the success rate of programming is very low (the reason for more bad blocks)]
Read and write speed data
Model SAMSUNG: K9F1G08U0D-SCB0
Capacity 138M
Reading time 3 minutes 50 seconds Speed: 0.6 MB/s
Programming time 3 minutes 15 seconds Speed: 0.7 MB/s
Erasing time 0 minutes 17 seconds Speed: 8.5 MB/s
Supported model list: You can add the function of the memory chip by yourself.
Hynix
128Mbits: HY27US08281A
256Mbits: HY27US08561A
512Mbits: H27U518S2CTR, HY27US08121A
1Gbits: HY27UF081G2A
2Gbits: HY27UF082G2B
4Gbits: H27U4G8F2D*
8Gbits: H27U8G8G5D*, HY27UG08*
16Gbits: H27UAG8T2BTR,HY27UH08*, HY27UH08AG*,
32Gbits: H27UBG8T2A, H27UBG8T2B
Samsung
128Mbits: K9F2808U0A, K9F2808U0B, K9F2808U0C-YCB0
256Mbits: K9F5608U0A, K9F5608U0B-PCB0
512Mbits: K9F1208U0A, K9F2808U0B, K9F2808U0C-PCB0
1Gbits: K9F1G08U0A, K9F1G08U0B, K9F1G08U0C-PCB0
2Gbits: K9F2G08U0A, K9F2G08U0B, K9F2G08U0C
4Gbits: K9F4G08U0A, K9F4G08U0B-PCB0, K9F4G08U0C, K9F4G08U0D-SCB0, K9G4G08U0*
8Gbits: K9G8G08U0A, K9G8G08U0M, K9K8G08U0A, K9F8G08U0M
16Gbits: K9GAG08U0D, K9GAG08U0E
Micron
128Mbits: NAND128W3A*
256Mbits: NAND256W3A*
512Mbits: NAND512W3A*
1Gbits: MT29F1G08*
2Gbits: MT29F2G08*
4Gbits: MT29F4G08*
8Gbits: MT29F8G08*
32Gbits: MT29F32G08CBACAWP
Spansion
1Gbits: S34ML01G1
2Gbits: S34ML02G1
4Gbits: S34ML04G1
ESMT
1Gbits: F59L1G81A
Toshiba
1Gbits: TC58NVG0S3, TC58DVG02D5TA00
2Gbits: TC58NVG1S3
4Gbits: TC58NVG2S3
discussion group URL
https://www.elektroda.com/rtvforum/topic3256200.html
