Quality Certification:ce
Chipset:Intel B85
Socket Type:LGA 2011-3
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:Yes
Model Number:X99
Application:Desktop
With CPU:Yes
Special Function:None
Maximum Ram Capacity:128 GB
Chipset Manufacturer:Intel
Back I/O Ports:4 x USB 2.0
Support Memory Type:DDR4
Usage Scenario:Gaming
Number of PCI:3
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:2
Number Of Memory Slots:4
Memory channel:Four
Number of SATA Ports:6
Support USB Type:USB 2.0
Form Factor:ATX
Number of M.2:1

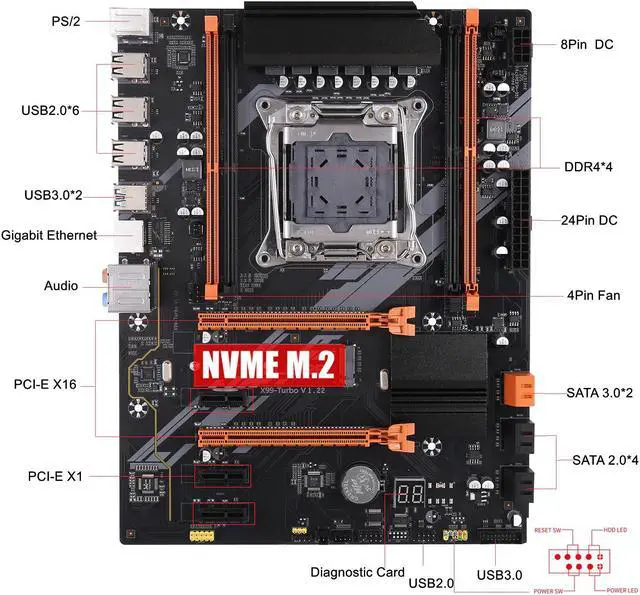

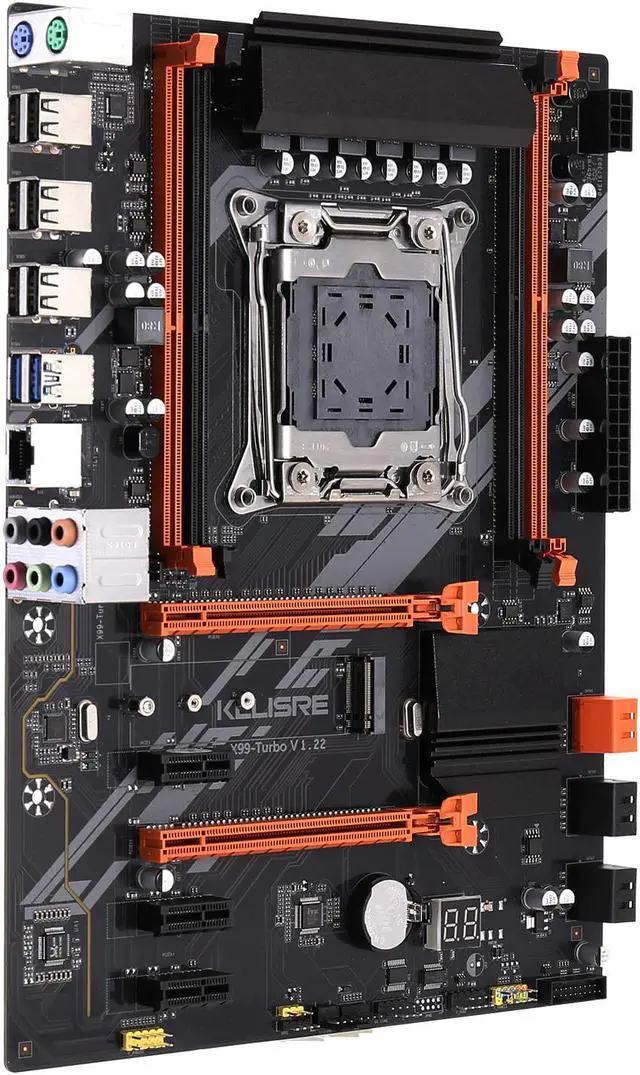

Kllisre X99 D4 motherboard set with Xeon E5 2678 V3 LGA2011-3 CPU 2pcs X 8GB = 16GB 2666MHz DDR4 memory
Our motherboard set includes motherboard, 1*CPU and 2* 8GB Ram.
Specification:
Main Chipset: Intel B85
Model : Kllisre
Condition: Full
CPU socket: LGA 2011-3
CPU supported:for Intel series with LGA 2011-3 socket
(Xeon E5 2620/2630/2640/2650/2660/2670/2680/2690/1650/1660 V3 series )
Memory socket: 4* DDR4
Max memory supported: 4*32GB DDR4
Memory type supported: non-ecc/reg ecc/ecc(The server ram can't work with the desktop ram, it has the compability problem.)
Integrated video card: No
Motherboard dimension: 280*220mm
Motherboard weight(including package): 1kg or so
CPU:
Processor Series: Xeon E5 2678 V3 SR20Z(12 cores/24 threads)
Main frequency: 2.5GHz
Socket type: LGA2011-3
3rd level cache: 30MB
Power consumption: 120W
Memory:
Brand: KLLISRE
Chip: SEC / HY/ MIC and others (ship at random)
Type: Desktop Memory
Frequency: DDR4 2666MHz
Capacity: 16GB (2*8GB)
Note:
1:Due to different batches of factory materials (PCB boards, heat sinks, PCI-e and ram slots, etc.), the appearance and color of motherboard will be different. The picture is only for reference. Random delivery. It will not affect the use of the product.
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
5
6.The heat sink may different on each batch, black and orange color, send by randomly.
