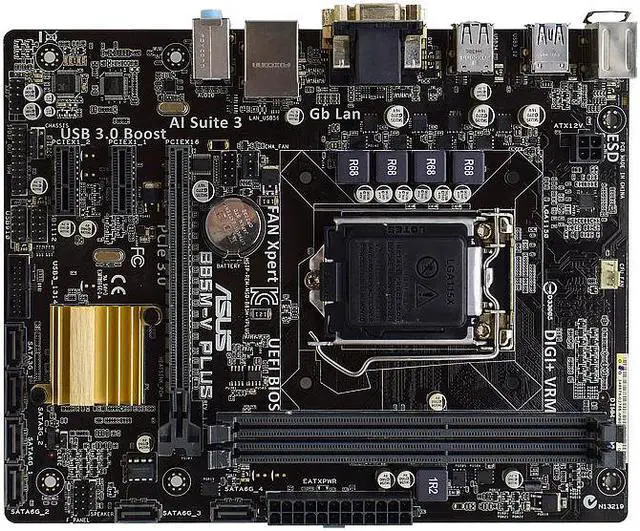

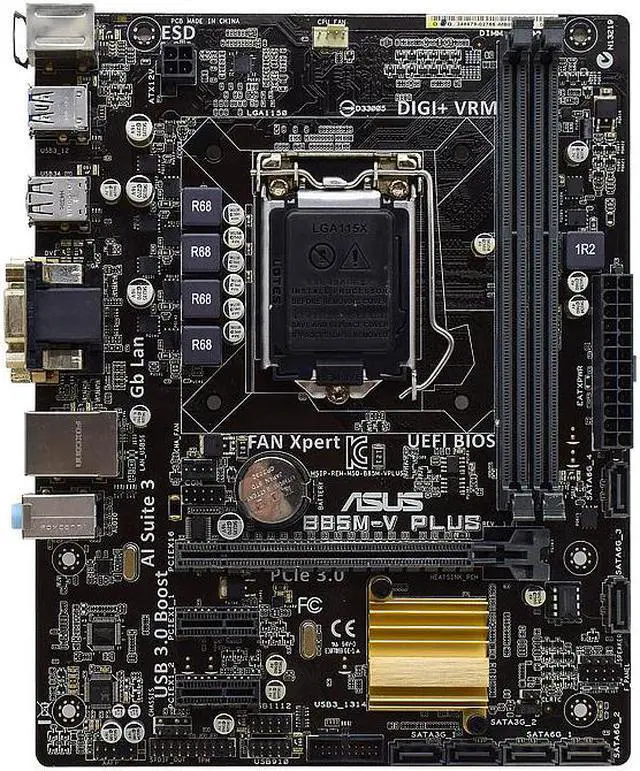

ASUS B85M-V PLUS B85 Motherboard 1150 Intel Core i7 i5 i3 Processor DDR3 16GB RAM Memory VGA DVI USB3.0 SATA3 PCIE 3.0 Micro ATX

Quality Certification:ce
Chipset:Intel B85
Socket Type:LGA1150
Storage Interface Type:SATA 2
Onboard LAN:1x RJ45
Package:No
Model Number:B85M-V PLUS
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Audio & Video
Number of PCI:0
PCI - E standards:PCI - E 2.0
Origin:CN(Origin)
Number of PCIe x 16:1
Memory channel:Double
Form Factor:CeB
Number of PCIe x 1:2
Certification:CE
Type 1:B85 Motherboard
Type 2:Motherboard 1150
Type 3:Intel Core i7 i5 i3 Processor
Type 4:DDR3 16GB RAM Memory

B85M-V PLUS Parameters
Chipset description
Intel B85 chipset
Display chip
CPU built-in display chip (requires CPU support)
Audio chip
Integrated Realtek ALC887 8-channel audio chip
NIC chip
Onboard Realtek RTL8111GR Gigabit LAN
Processor specification
CPU type
Core i7/i5/i3/Pentium/Celeron
CPU socket
LGA 1150
CPU description
Support for Intel 22nm processor
Memory specification
Memory type
2×DDR3 DIMM
Maximum memory capacity
16 GB
Memory description
Support dual channel DDR3 1600/1333/1066MHz memory
Storage extension
PCI-E standard
PCI-E 3.0
PCI-E slot
1 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
Storage interface
4 x SATA III interface; 2 x SATA II interface
I/O interface
USB interface
4×USB3.0 interface (2 built-in +2 backplane); 8×USB2.0 interface (4 built-in +4 backplane)
Video interface
1×DVI interface
1×VGA interface
Power interface
One 4-pin, one 24-pin power connector
Other interface
1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Plate type
Motherboard type
Micro ATX form factor
Dimensions
22.6×18.0cm
