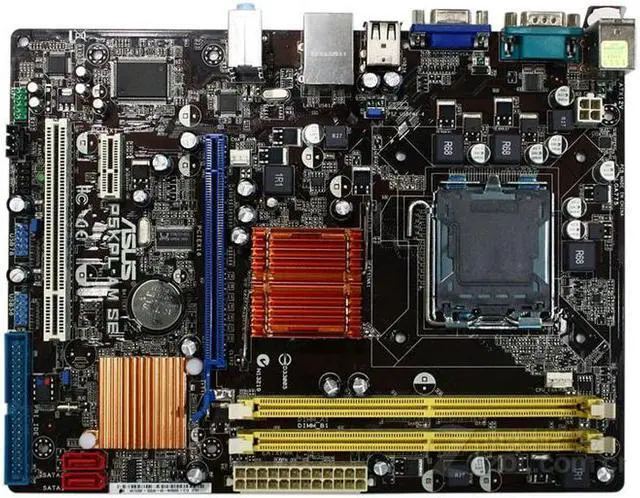

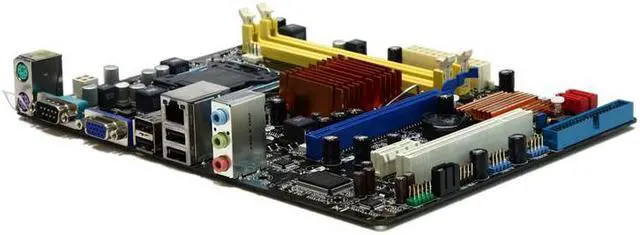

ASUS P5KPL-AM SE LGA 775 Intel G31 Desktop Motherboard DDR2 4GB Core 2 Quad/Core 2 Duo Cpus PCI-E X16 SATA 2 8×USB2.0

Quality Certification:ce
Chipset:Intel Others
Socket Type:LGA 775
Storage Interface Type:SATA 2
Onboard LAN:1x RJ45
Package:No
Model Number:P5KPL-AM SE
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:4 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR2
Usage Scenario:Audio & Video
Number of PCI:1
PCI - E standards:PCI - E 2.0
Origin:CN(Origin)
Number of PCIe x 16:1
Memory channel:Double
Form Factor:CeB
Number of PCIe x 1:1
Certification:CE

P5KPL-AM SE Parameters
Motherboard chip
integrated chip Video card / sound card / network card
Main chipset Intel G31
Chipset description Intel G31 North Bridge + ich7 south bridge chipset
Display chip Integrated Intel GMA3100 display core
Audio chip Integrated Realtek alc887 8-channel HD sound chip
Chip card On board Realtek rtl8106el 100m network card
Processor specifications
CPU type Core 2 Quad/Core 2 Duo/Pentium D/Pentium 4/Celeron
CPU slot LGA 775
CPU description Supports Intel Socket 775 interface processor
Memory specification
Memory type two × DDR2 DIMM
Maximum memory capacity 4GB
Memory description Support dual channel DDR2 1066 (overclocking) / 800 / 667mhz memory
Storage expansion
PCI-E slot one × PCI-E x16 graphics card slot, 1 × PCI-E X1 slot
PCI slot one × PCI slot
Storage interface two × SATA II interface

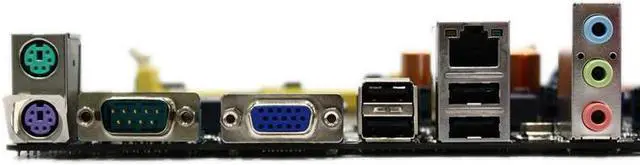

I / O interface
USB interface eight × USB2.0 Interface
Video interface one × VGA interface
Power interface One 4-pin, one 24 pin power interface
Other interfaces
one × RJ45 network interface, audio interface, PS / 2 mouse, PS / 2 keyboard interface
Plate type
Main board type Uatx plate type
Overall dimension twenty-four point five × 19.3cm
