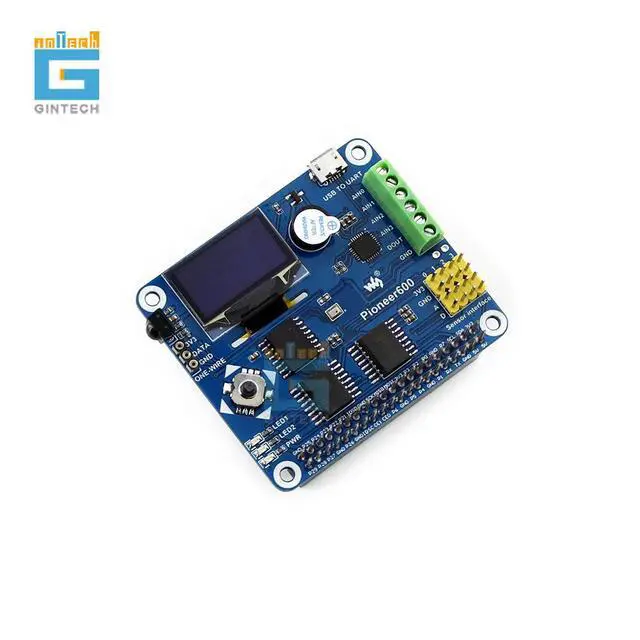

Pioneer600 Raspberry Pi Expansion Board, Miscellaneous Components, All-In-One

Origin:CN(Origin)
Model Number:Pioneer600

PACKAGE CONTENT:
Pioneer600 x 1
DS18B20 ×1
USB Type A Plug to Micro B Plug Cable x 1
RPi screws pack (2pcs) x 1
1
2
3
4
Product Name
:
Raspberry Pi Expansion Board, Miscellaneous Components, All-in-One
Pioneer600 Features
Supports Raspberry Pi A+/B+/2B/3B/3B+
dual LED, joystick, buzzer, the basic components
CP2102, control the Pi through serial terminal
0.96inch OLED, big world in the little screen
DS3231, high precision, backup holder is also available
PCF8591, 8-bit resolution, screw terminal IO interface
PCF8574, more GPIO, more possibility
LFN0038K, Raspberry Pi remote control comes true
BMP280, measuring air pressure and temperature
for connecting 1-WIRE devices, DS18B20 is included
for connecting various sensors

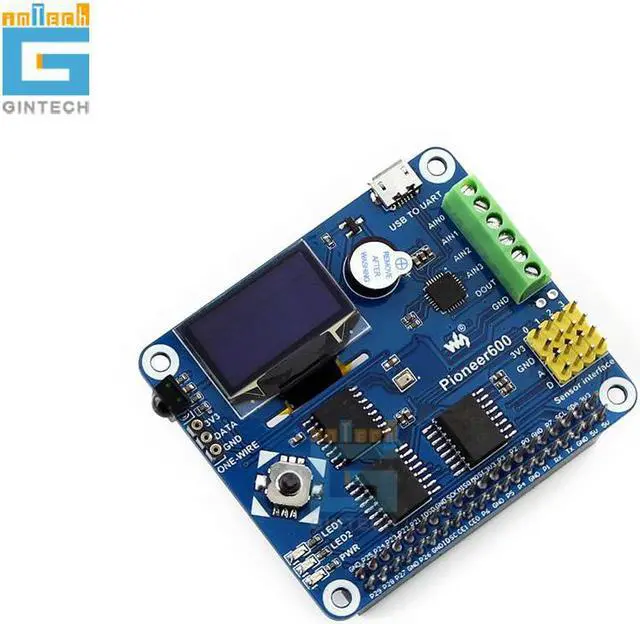

What's on the Pioneer600
Raspberry Pi GPIO interface :
for connecting Raspberry Pi
USB TO UART :
control the Pi through serial terminal
AD/DA IO interface :
screw terminal
1-WIRE interface :
for connecting 1-WIRE devices like DS18B20
Sensor interface :
for connecting various sensors
0.96inch OLED :
SSD1306 driver, 128×64 resolution, SPI interface
Buzzer
CP2102 :
USB TO UART converter
PCF8591 :
8-bit AD/DA converter, I2C interface
BMP280 :
pressure sensor, I2C interface
PCF8574 :
I/O expansion chip, I2C interface
DS3231 :
high precision RTC chip, I2C interface
Power indicator
User LED
Joystick
LFN0038K IR receiver

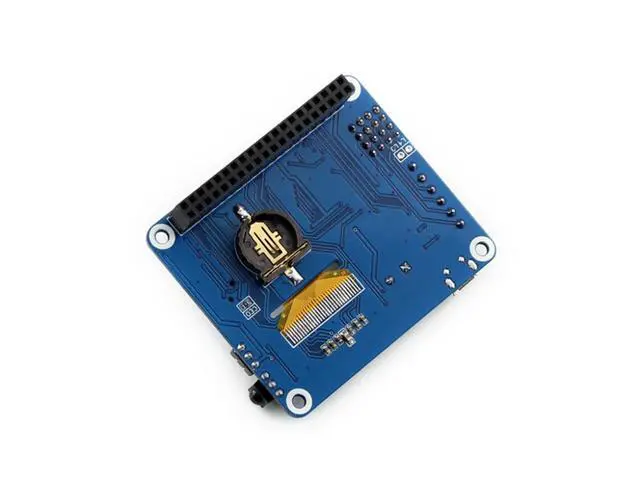

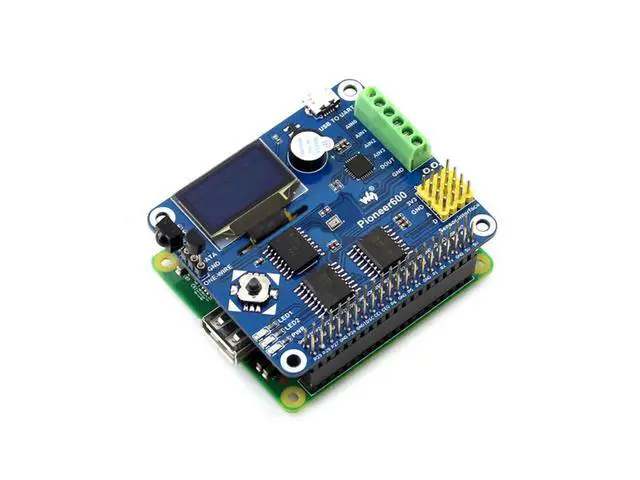

Photos
Examples
Development Resources
User manual
Schematic
Demo codes : python and C (WringPi/BCM2835 C Library/SysFs)
Raspberry Pi tutorials
Raspbian (configured system image)
PACKAGE CONTENT
Pioneer600 x 1
DS18B20 ×1
USB Type A Plug to Micro B Plug Cable x 1
RPi screws pack (2pcs) x 1
