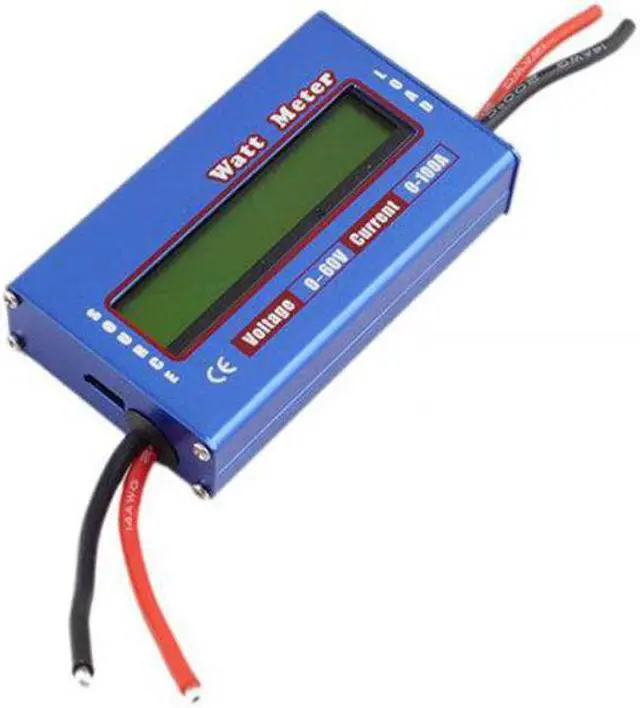

Blue DC 60V 100A Balance Voltage Power Analyzer RC Watt Meter Checker Professional Watt Meter Balancer Charger RC Tools

Certification:NONE
Origin:CN(Origin)
DIY Supplies:ELECTRICAL
Measuring Energy Range:0-6554 W
Rated Voltage:100V
Power Supply:DC
Display Type:Digital Only
Output Voltage:60V
Dimensions:8.3cm x 4.7cm x 2cm
Model Number:watt meter
Phase:Single Phase
Operating Temperature:Normal
Accuracy Class:High
Max Operating Current:80A - 99A
Item:watt meter
Feature:power meter
Feature 1:electric meter
Feature 2:medidor de energia
Feature 3:dc watt meter
Feature 4:dc power meter
Feature 5:watt meter dc

Blue DC 60V 100A Balance Voltage Power Analyzer RC Watt Meter Checker Professional Watt Meter Balancer Charger RC Tools
Product description:
Professional RC Watt Meter is an excellent addition to your RC hobby, DC circuits, Solar system, Boat/RV & Backup systems!
This isn't just a watt meter-it's the All-In-One Meter! A power meter, a volt meter, an amp-hour meter, ammeter and energy meter. Everything all in one unit! This is the perfect troubleshooting tool. This all-in-one watt meter is indispensable for analyzing, testing and troubleshooting any DIY DC power project.
Features:
and .

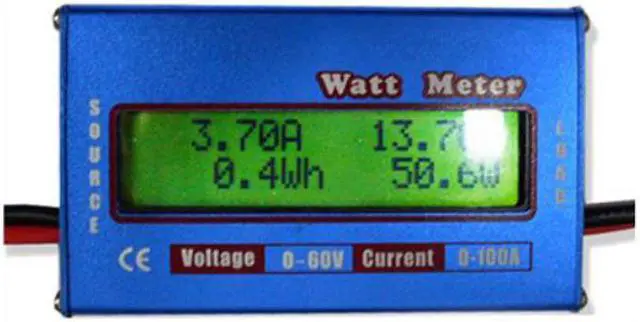

Digital LCD screen gives clear crisp number readings.
Handles up to 100 amps intermittently and 50 amps continuous duty.
Connecting load end to the provides real-time charging reading.
Handles 0 to 60 volts. Works on 12, 24, 36, and 48 volt bank systems.
Extremely low power consumption of 7 mA. More efficient than any LED meter.
Measure energy(wh),charge(ah), power(w),current(A) and voltage(V).
Accurate & precise 0.01 A cuurrent and 0.01 V voltage resolutions.
Measures peak Amps, peak Watts(except for Doc Wattson) and Voltage minimum(sag).
Rugged- handles 50A continuous and 100 A peak at 60V.
Acts like a wire so doesn't affect model's performance. Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance and circuitry that draws only 7 mA.
USes DSP to increase ADC resolution and differential measurement amplifiers to increase noise immunity.
Specifications:
Color:Blue
Voltage:(0)V-4V-60V 0.01V (Resolution).
Current:0-100 A peak 0.01A (Resolution).
Power:0-6554 W 0.1W (Resolution).
Charge:0-65 Ah 0.001Ah (Resolution).
Energy:0-6554 wh 0.1 Wh (Resolution).
Measurement Update period:400mS.
Signal Sampling Rate:sample/s.
Data Queue Sequence time: 2 seconds.
In Circuit Resistance:0.001 Ohms.
Operation Current: 7 mA.
Size:8.3cm x 4.7cm x 2cm - 3.27inch x 1.85inch x 0.79inch
Package Included:
1 x Watt Meter
