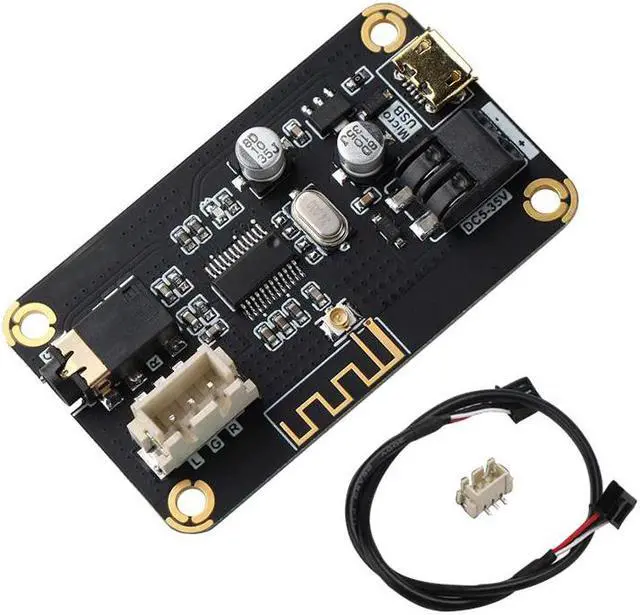

Audio Stereo Bluetooth Receiver Module, Mp3 Bluetooth 4.2 DIY Decoder DC5V-35V Music Wireless Receive Module
- Audio Stereo Bluetooth Receiver Module, Mp3 Bluetooth 4.2 DIY Decoder DC5V-35V Music Wireless Receive Module
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Earphones & Headphones
Certification:NONE
Type:AUDIO
Power Supply: Input voltage DC 5-35V, via micro-USB 5V power supply.
Bluetooth version 4.2: Effective transmission distance 10-15m/32.8-49.2ft, support memory connection.
Dual audio output terminals: 3.5mm audio output terminal & 2.54mm 3P audio output terminal.
Perfect for headphone, speaker, home stereo system DIY, have LED indicator.
Power supply reverse protection, antenna external connection (suitable for mounting inside a metal box).
BT Bluetooth Receiver Module Parameter:
Input voltage: DC 5-35V
Micro-USB 5V power supply
Bluetooth version: 4.2 (10-15m/32.8-49.2ft , support memory connection)
Bluetooth name: LQSC_BT
Working temperature: -40 to 85
Feature:
1. Full Surface Mounted Technology
2. Wide range of operating voltage
3. Power supply reverse protection
4. Dual audio output terminals
5. Antenna external connection (suitable for mounting inside a metal box)

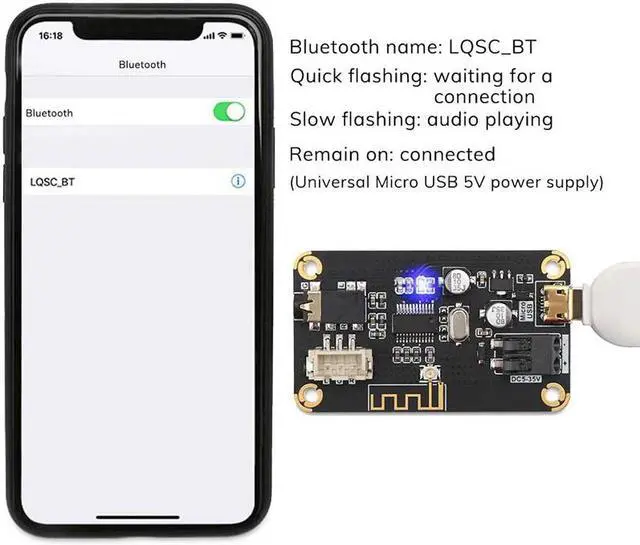

LED indicator instructions:
Quick flashing: waiting for a connection
Slow flashing: audio playing
Remain on: connected

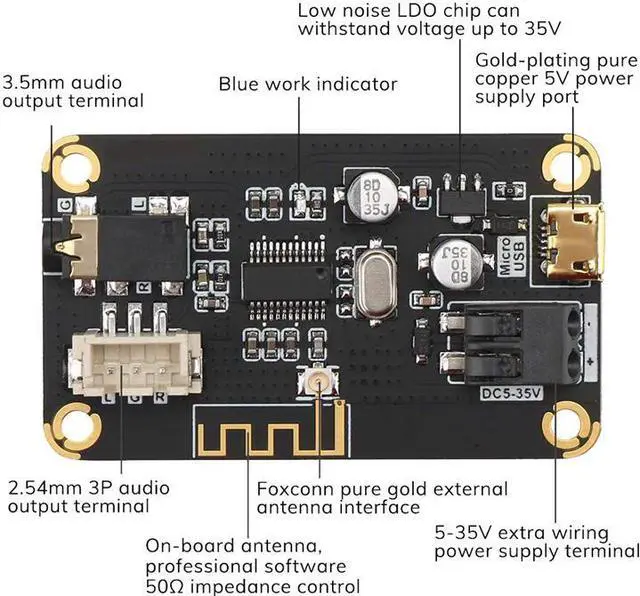

Description:
1. 3.5mm audio output terminal
2. 2.54mm 3P audio output terminal
3. On-board antenna, professional software 50 ohm impedance control
4. Foxconn pure gold external antenna interface
5. 5-35V extra wiring power supply terminal
6. Gold-plating pure copper 5V power supply port
7. Low noise LDO chip can withstand voltage up to 35V
8. Blue work indicator
Colour: as shown
Material: ABS
Size: 5.5x3.2x0.9cm
Package Contents:
1 x Audio Bluetooth Receiver Module
Note:
This item is a bluetooth receiver board, if used for speakers, please connect an amplifier. Otherwise, there will be distortion at high volumn.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Compatible Audio & Video Equipment Style:Earphones & Headphones
Certification:NONE
Type:AUDIO
Power Supply: Input voltage DC 5-35V, via micro-USB 5V power supply.
Bluetooth version 4.2: Effective transmission distance 10-15m/32.8-49.2ft, support memory connection.
Dual audio output terminals: 3.5mm audio output terminal & 2.54mm 3P audio output terminal.
Perfect for headphone, speaker, home stereo system DIY, have LED indicator.
Power supply reverse protection, antenna external connection (suitable for mounting inside a metal box).
BT Bluetooth Receiver Module Parameter:
Input voltage: DC 5-35V
Micro-USB 5V power supply
Bluetooth version: 4.2 (10-15m/32.8-49.2ft , support memory connection)
Bluetooth name: LQSC_BT
Working temperature: -40 to 85
Feature:
1. Full Surface Mounted Technology
2. Wide range of operating voltage
3. Power supply reverse protection
4. Dual audio output terminals
5. Antenna external connection (suitable for mounting inside a metal box)
LED indicator instructions:
Quick flashing: waiting for a connection
Slow flashing: audio playing
Remain on: connected
Description:
1. 3.5mm audio output terminal
2. 2.54mm 3P audio output terminal
3. On-board antenna, professional software 50 ohm impedance control
4. Foxconn pure gold external antenna interface
5. 5-35V extra wiring power supply terminal
6. Gold-plating pure copper 5V power supply port
7. Low noise LDO chip can withstand voltage up to 35V
8. Blue work indicator
Colour: as shown
Material: ABS
Size: 5.5x3.2x0.9cm
Package Contents:
1 x Audio Bluetooth Receiver Module
Note:
This item is a bluetooth receiver board, if used for speakers, please connect an amplifier. Otherwise, there will be distortion at high volumn.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
