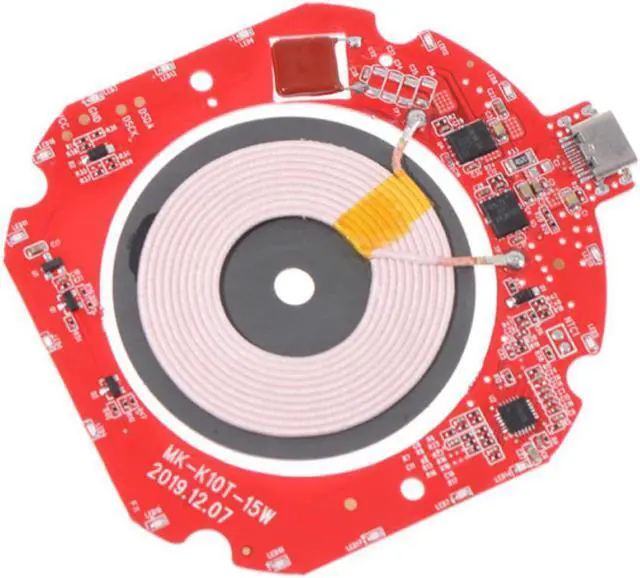

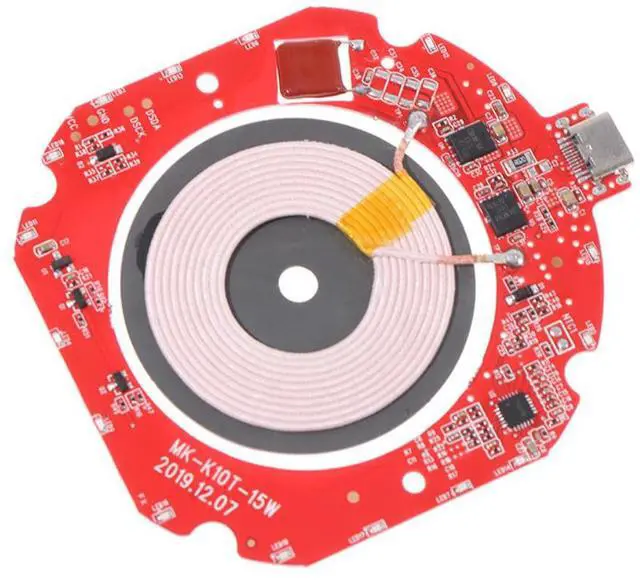

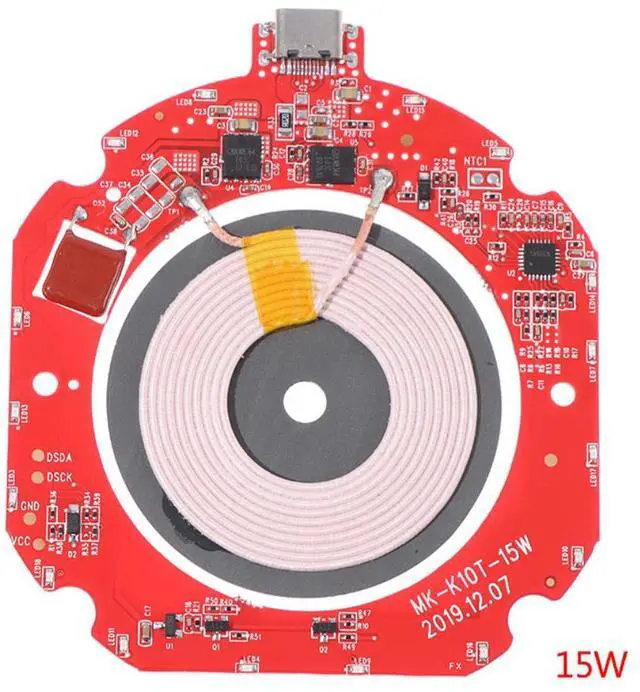

Qi Fast Wireless Charger PCBA Circuit Board Transmitter Module+Coil Charging 15W

GaN:YES
Max. Output Power:15W
Quality Certification:CCC
Certification:NONE
Applied Fast Charge Protocols:Other
Origin:CN(Origin)
Output Interface:None
Power Source:USB
Model Number:wireless charger PCBA circuit board

Features:
15W, Type-c Interface
Wireless Qi charging standard, you can charge with your mobile phone
Large Output Power - Advanced chip and large power offer a super fast and safe wireless charging.
70% Charging Efficiency - Adopting high charging efficiency up to 70% to save power.
Single Large Coil, This Wireless Charger Transmitter Module adopts a large coil to leave no dead angle.
Multi-level Protection - Adopting multi-level protection like short-circuit protection, overvoltage protection to ensure the security of charging.
Wide Compatibility - Suitable for all qi standard phones.
Specification:
Product type: Wireless Charger Transmitter Module
Charging efficiency: 70%
Coil:5cm
Input power supply: 5-12V/2A
Output: 9V/1-1.66A
Transmission distance: 2-8mm
Installation requirements:
1. Please use the charging head / cable with enough 2A current output
2. The thickness of the cover plate above the transmitter coil is recommended to be within 3mm
3. When working, the receiving center of the mobile phone should be aligned with the center of the transmitter coil
Package List:1 * Wireless Charger Transmitter Modul
