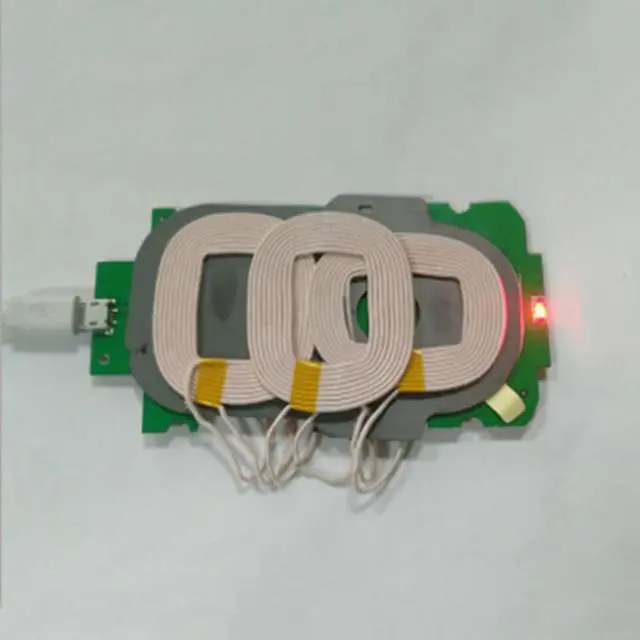

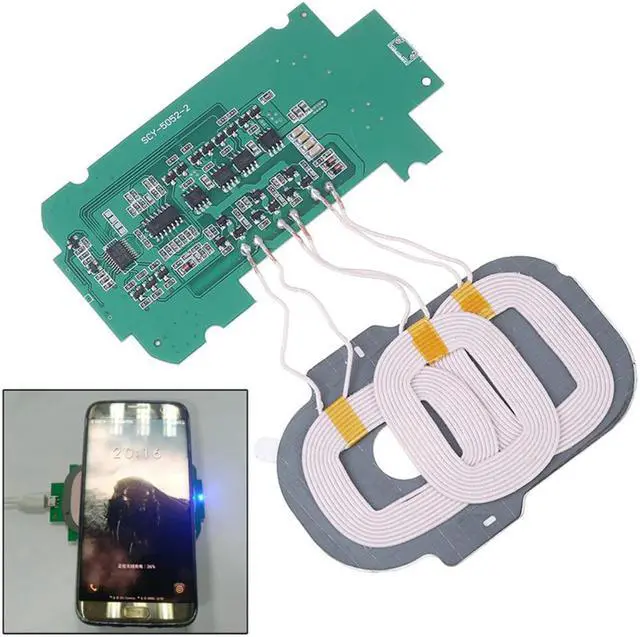

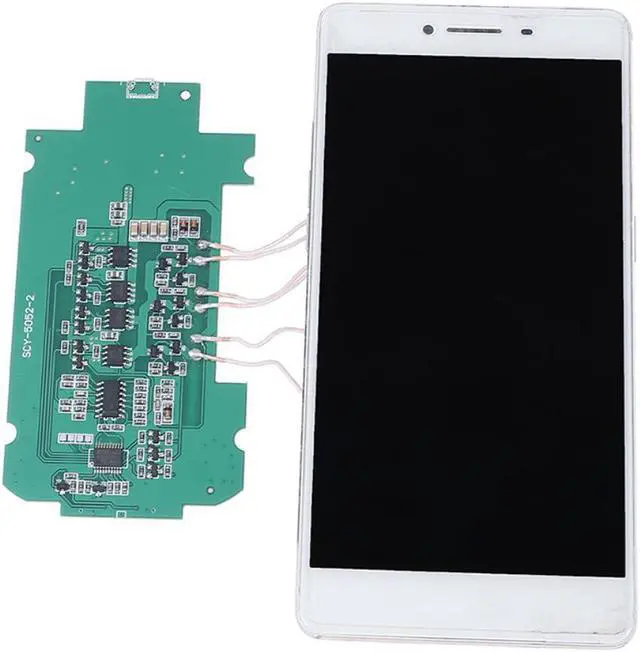

5V/2A DIY 3 Coils Qi Wireless Charger PCBA Circuit Board Qi Wireless Charging Standard Accessories
- 5V/2A DIY 3 Coils Qi Wireless Charger PCBA Circuit Board Qi Wireless Charging Standard Accessories
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Origin:CN(Origin)
1. Input voltage: DC5v, beyond this range, the voltage stops charging.
2. Input current: DC1.5-2A
3. Output voltage: DC5V.
4. Radio Current: 0.5-1A
5. Charging power: up to 5W
6. Conversion efficiency: greater than 73%
7. Transmission Distance: Maximum 7mm, Recommended Transmit-receive Distance 2mm~4mm
8. Standby power consumption: average power consumption is less than 50 mW
9. Over-temperature protection: When the charging temperature is higher than 60 degrees, automatically stop charging for 1 minute, and recharge after the temperature drops.
10. Overcurrent protection: When charging, the output current is greater than 1.8A, it automatically stops charging to prevent damage to the charger.
11. Implementation Standard: Qi Wireless Charging Standard WPC1.1
12. Working frequency: 100-205KHZ
13. Coil Type: QI A6 Three-coil
Fine workmanship and stable performance.Long service life.
Package included:1 x Wireless Charger Transmitter Module Coil PCBA Circuit Board
Note:Due to the hand measurement, there have size error about 1-3cm
1. Input voltage: DC5v, beyond this range, the voltage stops charging.
2. Input current: DC1.5-2A
3. Output voltage: DC5V.
4. Radio Current: 0.5-1A
5. Charging power: up to 5W
6. Conversion efficiency: greater than 73%
7. Transmission Distance: Maximum 7mm, Recommended Transmit-receive Distance 2mm~4mm
8. Standby power consumption: average power consumption is less than 50 mW
9. Over-temperature protection: When the charging temperature is higher than 60 degrees, automatically stop charging for 1 minute, and recharge after the temperature drops.
10. Overcurrent protection: When charging, the output current is greater than 1.8A, it automatically stops charging to prevent damage to the charger.
11. Implementation Standard: Qi Wireless Charging Standard WPC1.1
12. Working frequency: 100-205KHZ
13. Coil Type: QI A6 Three-coil
Fine workmanship and stable performance.Long service life.
Package included:1 x Wireless Charger Transmitter Module Coil PCBA Circuit Board
Note:Due to the hand measurement, there have size error about 1-3cm
