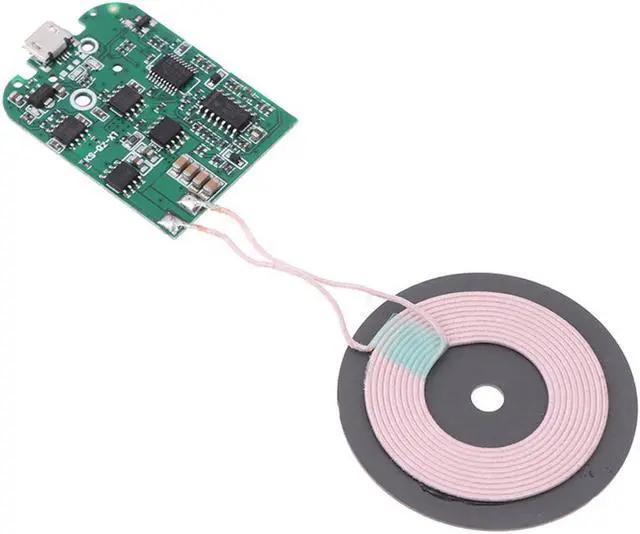

1pc universal Portable 15W Qi Fast Charging Wireless Charger PCBA DIY standard Accessories transmitter module coil circuit board

Connector A:TYPE-C
Certification:NONE
Origin:CN(Origin)

Specification:
100% and
Input voltage: DC9V/12V1.5~2A, if the voltage exceeds this range, alarm and stop charging
Output voltage: 9V ± 0.1V,
Charging current: 1200mAh
Charging power: up to 15W, compatible with 10W 7.5W
Interface: Micro USB
Conversion efficiency: more than 73%
Transmission distance: max. 10 mm, recommended receiving and transmitting distance: 2 mm ~ 4 mm
Standby power consumption: the average power consumption is less than 50mw
Over temperature protection: when the temperature is higher than 60 ° during charging, it will automatically stop charging for 1 minute, and recharge after the temperature drops
Over current protection: when the output current is more than 2A during charging, the charging will be stopped automatically to prevent damage to the charger
Executive standard: Qi wireless charging standard
Product certification: CE / FCC, compatible with Qi certification standard
Package included:1 x Wireless Charger Transmitter Module Coil PCBA Circuit Board
Note:
Due to the hand measurement, there have size error about 1cm
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
