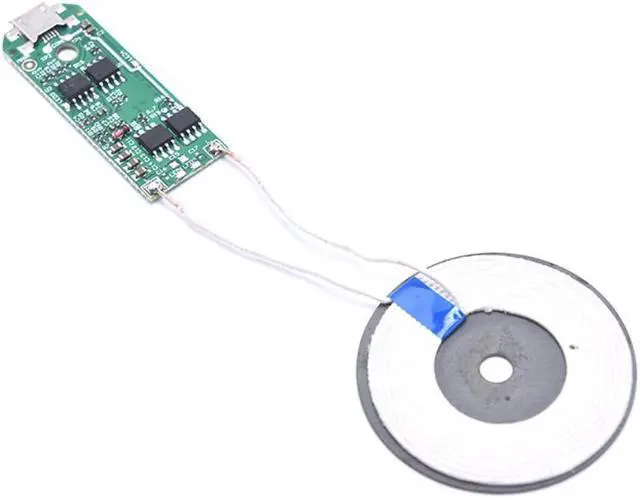

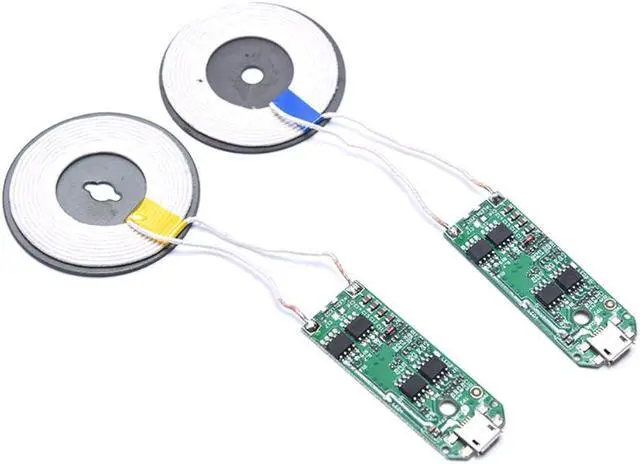

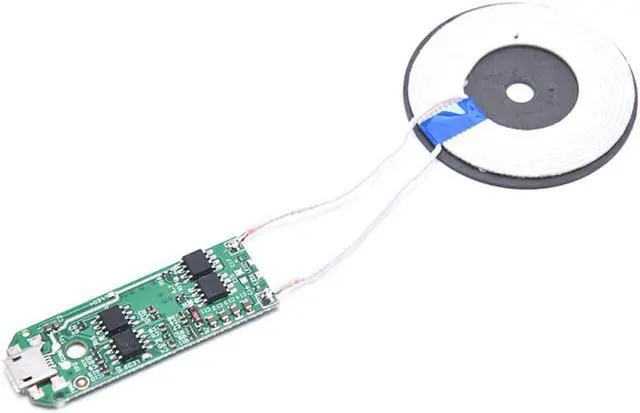

1pc 5W Qi Fast Charging Wireless Charger PCBA DIY Standard Accessories Transmitter Module Coil Circuit Board
- 1pc 5W Qi Fast Charging Wireless Charger PCBA DIY Standard Accessories Transmitter Module Coil Circuit Board
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:With Charging Indicator
Connector Type:Micro USB
Certification:NONE
Origin:CN(Origin)
Max. Output Power:5W
Product parameters:
1. Input voltage: DC5.0V;
2. Input current: 5V/2A;
3. Output voltage: 5V±0.1V;
4. Output current: 0.5A-1.1A;
5. Charging power: up to 5W;
6. Transmission distance: maximum 8mm, the best acceptance distance is 3mm~5mm;
7. Conversion efficiency: more than 70%;
8. Standby power consumption: the average power consumption is less than 30MW;
9. Whether foreign body detection is supported: customized according to customer needs;
10. Over-temperature protection: customized according to customer needs;
11. Over-current protection: when the input current is greater than 1.8A during charging, it will automatically stop charging to prevent damage to the charger;
12. Standard: Qi wireless charging standard;
13. Indicator function: red light indicates standby state, blue light (or flashing) indicates charging state;
14. Working frequency: 100KHz-205KHz;
The price of this product does not include the coil, which needs to be calculated separately.
Connector Type:Micro USB
Certification:NONE
Origin:CN(Origin)
Max. Output Power:5W
Product parameters:
1. Input voltage: DC5.0V;
2. Input current: 5V/2A;
3. Output voltage: 5V±0.1V;
4. Output current: 0.5A-1.1A;
5. Charging power: up to 5W;
6. Transmission distance: maximum 8mm, the best acceptance distance is 3mm~5mm;
7. Conversion efficiency: more than 70%;
8. Standby power consumption: the average power consumption is less than 30MW;
9. Whether foreign body detection is supported: customized according to customer needs;
10. Over-temperature protection: customized according to customer needs;
11. Over-current protection: when the input current is greater than 1.8A during charging, it will automatically stop charging to prevent damage to the charger;
12. Standard: Qi wireless charging standard;
13. Indicator function: red light indicates standby state, blue light (or flashing) indicates charging state;
14. Working frequency: 100KHz-205KHz;
The price of this product does not include the coil, which needs to be calculated separately.
