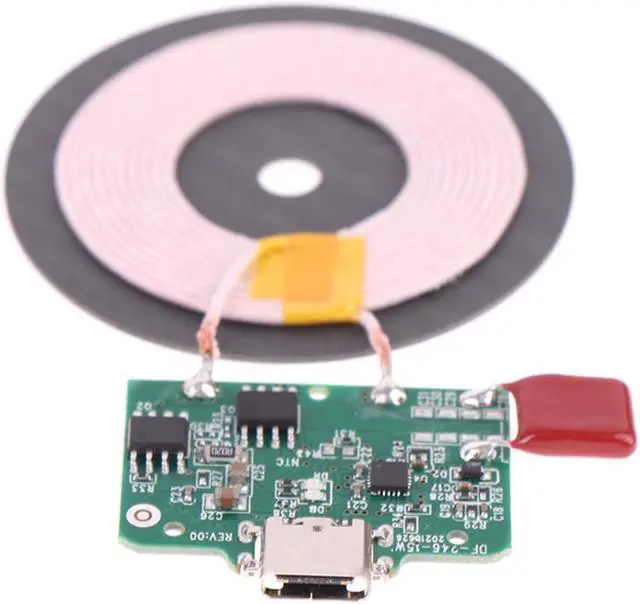

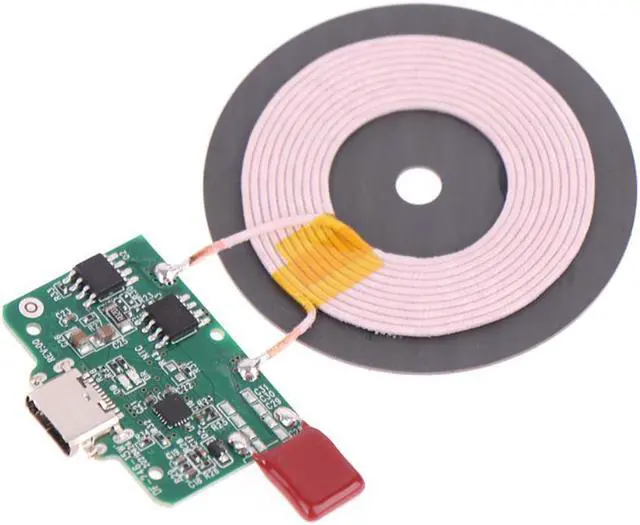

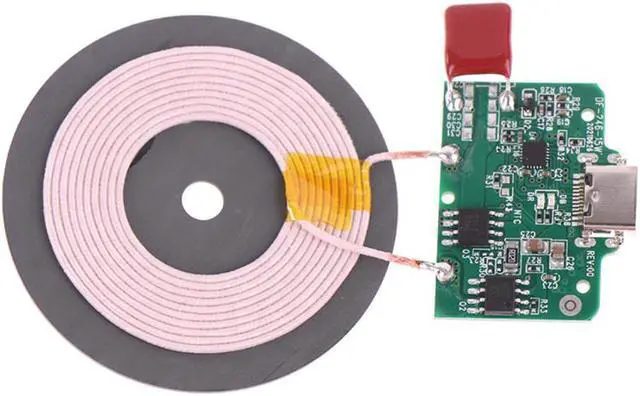

DC5V 9V 12V 5W 10W 15W Type-C Micro-USB Fast Charge Wireless Charger Transmitter PCBA Circuit Board Coil Receiver Charger Module
- DC5V 9V 12V 5W 10W 15W Type-C Micro-USB Fast Charge Wireless Charger Transmitter PCBA Circuit Board Coil Receiver Charger Module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Certification:NONE
Model Number:15W Qi Fast Charging Wireless
supports Samsung fast charging protocol:compatible with iphonex / 8 / 8p fast charging protocol
input voltage / current:5v-2a, 9v-1.67a, 12-1.5a
output current:5v-1a, 9v-1.1, 9v-1.66a
support maximum 15W power output:75% - 85% efficiency
sensing distance: 8mm
working frequency:100-200khz
support double foreign object inspection (FOD):support dynamic energy balance
intelligent identification:5W / 7.5w/10w/15w charging
protection functions:over-current, over-voltage, over temperature and short circuit
PCBA board size:Length 24mm * width 32mm * thickness 2.0mm coil diameter: 50mm
Main features:
comply with WPC v1.2.3 wireless charging specification
product standard: Qi
it supports Samsung fast charging protocol and is compatible with iphonex / 8 / 8p fast charging protocol
built in MCU, 12 bits high-precision ADC, communication decoding
input voltage / current: 5v-2a, 9v-1.67a, 12-1.5a
output current: 5v-1a, 9v-1.1, 9v-1.66a
support maximum 15W power output
75% - 85% efficiency
sensing distance 8mm
working frequency: 100-200khz
support dynamic energy balance
intelligent identification, 5W / 7.5w/10w/15w charging
it has four protection functions such as over-current, over-voltage, over temperature and short circuit
support double foreign object inspection (FOD)
PCBA board size:
Length 24mm * width 32mm * thickness 2.0mm coil diameter: 50mm
50473
Model Number:15W Qi Fast Charging Wireless
supports Samsung fast charging protocol:compatible with iphonex / 8 / 8p fast charging protocol
input voltage / current:5v-2a, 9v-1.67a, 12-1.5a
output current:5v-1a, 9v-1.1, 9v-1.66a
support maximum 15W power output:75% - 85% efficiency
sensing distance: 8mm
working frequency:100-200khz
support double foreign object inspection (FOD):support dynamic energy balance
intelligent identification:5W / 7.5w/10w/15w charging
protection functions:over-current, over-voltage, over temperature and short circuit
PCBA board size:Length 24mm * width 32mm * thickness 2.0mm coil diameter: 50mm
Main features:
comply with WPC v1.2.3 wireless charging specification
product standard: Qi
it supports Samsung fast charging protocol and is compatible with iphonex / 8 / 8p fast charging protocol
built in MCU, 12 bits high-precision ADC, communication decoding
input voltage / current: 5v-2a, 9v-1.67a, 12-1.5a
output current: 5v-1a, 9v-1.1, 9v-1.66a
support maximum 15W power output
75% - 85% efficiency
sensing distance 8mm
working frequency: 100-200khz
support dynamic energy balance
intelligent identification, 5W / 7.5w/10w/15w charging
it has four protection functions such as over-current, over-voltage, over temperature and short circuit
support double foreign object inspection (FOD)
PCBA board size:
Length 24mm * width 32mm * thickness 2.0mm coil diameter: 50mm
50473
