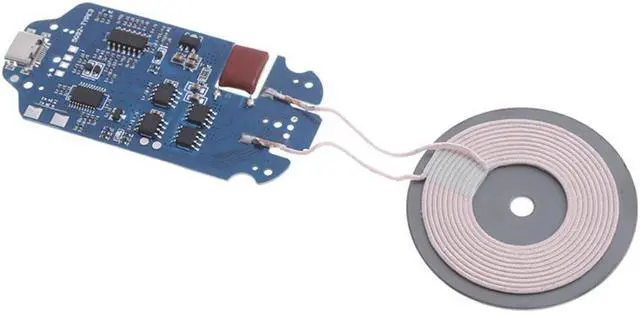

1pc Portable Up To 10W Qi Fast Charging Wireless Charger PCBA DIY Standard Accessories Transmitter Module Coil Circuit Board

GaN:NO
Max. Output Power:10W
Quality Certification:ce
Applied Fast Charge Protocols:Other
Origin:CN(Origin)
Output Interface:USB
Power Source:USB
Model Number:wireless charger circuit board

Specification:
-100% and
-Interface:Type-c
-Input Voltage: DC9V1.5~2A, beyond this range voltage alarm and stop charging
-Output voltage: 9V + 0.1V.
-Charging current: 1100 mAh
-Charging power: up to 10W compatible 7.5W compatible 5W
-Conversion efficiency: greater than 73%
-Transmission Distance: Maximum 10mm, Recommended Transmit-receive Distance 2mm~4mm
-Standby power consumption: average power consumption is less than 50 mW
-Over-temperature protection: When the charging temperature is higher than 60 degrees, automatically stop charging for 1 minute, and then recharge after the temperature drops, charging temperature is 40 degrees.
-Over-current protection: When the output current is greater than 2A, the charging will stop automatically to prevent damage to the charger.
-Implementation Standard: Qi Wireless Charging Standard
-Product Certification: CE/FCC, Compatible with QI Certification Standard
-Foreign body detection with FOD
Package included:1 x Wireless Charger Transmitter Module Coil PCBA Circuit Board
