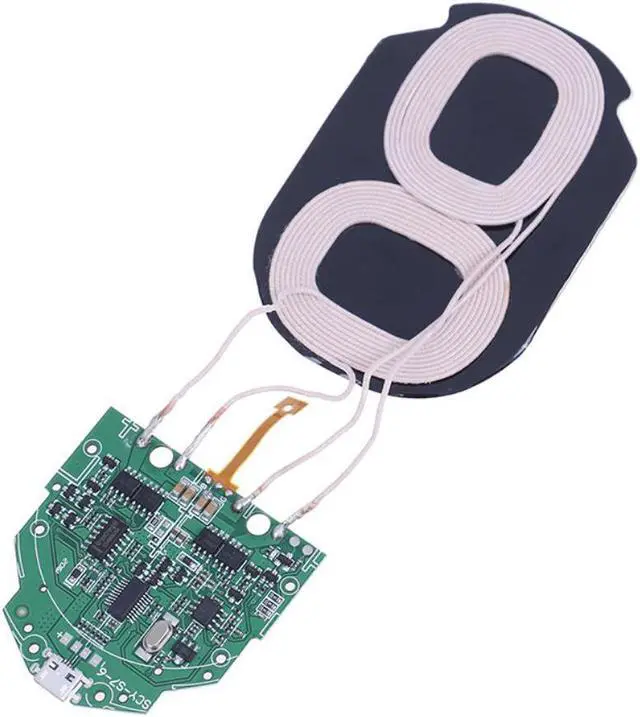

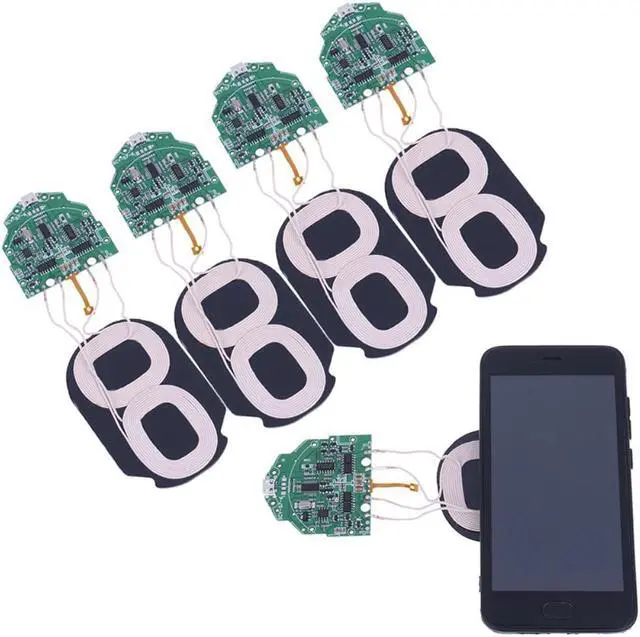

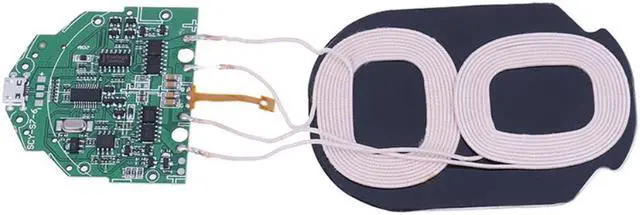

Portable 10W Qi Fast Charging Wireless Charger PCBA Circuit Board With Dual 2 Coils Qi Wireless Charging Standard Accessories

GaN:NO
Max. Output Power:-
Quality Certification:CCC
Applied Fast Charge Protocols:Other
Origin:CN(Origin)
Output Interface:USB
Power Source:USB
Model Number:mobile phone charger
mobile charger:phone accessories
phone charger:support smartphone
Unit Type:piece

32770
Case
Specification:
-100% and
-Color: Green, As the picture shows
-Input Voltage: DC9V1 .5 ~ 2A, outside this range voltage alarm and stop charging
-Output voltage: 9V ± 0.1 V
-Charge current: 1A to 2A
-Charge power: up to 10W
-Conversion efficiency: greater than 73 per cent
-Transmission distance: maximum 10mm, recommended spacing 2mm ~ 4mm
-Standby power consumption: average power consumption is less than 50mW
-Overtemperature protection: automatically stop charging for 1 minute when the temperature is higher than 60 ° when charging, and recharging when the temperature drops
-Over current protection: automatically stop charging when the output current is greater than 2A when charging to prevent damage to the charger
-Implementation standard: Qi wireless charging standard
-Product certification: CE/FCC, QI compatible certification standards
-Working frequency: 110-205 KHZ
-indicator: charged blue light, full green light, flashing alternately in case of failure
Package included:1 x PCBA Circuit Board
