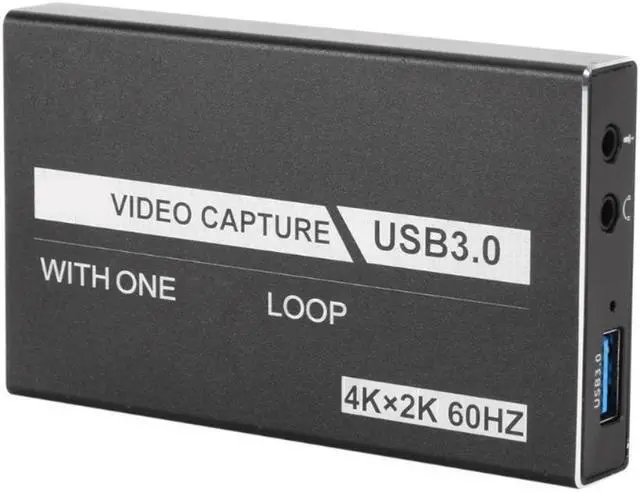

Mini Video Capture Card USB 3.0 HDMI 1080P 4K Grabber Record Box for OBS Capturing Game Game Capture Card Live

Origin:CN(Origin)
Model Number:Video Record Card
Package:Yes
Interface Type:USB

Features:
It doesn't need to install a driver, portable to carry and convenient to use.
Compatible with for W-indows, for Linux, for OS X operating systems.
USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
The process of video and -audio is done by the dongle and will not occupy the CPU.
It can one single channel H-D HDMI video signals.
Can automatically detect the input video formats and it will adjust to the set output size and frame rate.
Support HDMI 2.0b and HDCP 2.2. Support MIC input and -audio output. Support HDMI loop output 4Kp60.
Connect and Operate
1. Connect the signal sources such as -audio/video receiver,
satellite receivers with HDMI output interfaces with a HDMI cable to the device HDMI input.
2. Insert the USB3.0 cable head to USB3.0 interface,
the other side of the cable into your computer's USB3.0 interface.
3. HDMI to USB3.0 Video Dongle is based on UVC (USB video class), UAC(USB -audio class).
Without having to install drivers and settings.After installation in operating system,
the relevant video and -audio devices will be added on.
1. It can capture a single H-D HDMI video signal;
2. Recording video signals up to 1080p/60Hz, HDMI input supports 4K/60Hz;
3. Support MJPEG
4. Support UAC&UVC protocol, support 48 KHz PCM -audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with W-indows 7, 8, 8.1, 10 or later, Linux OS, -Mac OS operating system;
7. USB3.0, 300~350MB/s bandwidth, compatible with USB 2.0 (40MB/s bandwidth);
8. It can automatically detect the input video format and automatically adjust to the set output size and frame rate;
9. It can automatically detect the input -audio format and convert it to 48KHz PCM -audio;
10.2 acquisition sticks can be used on one PC;
11. Support firmware online upgrade, better improve product compatibility;
12. The picture quality is clearer, the RGB color range is 0~255, and the delay is better;
13. Support all third-party player software compatible with UVC and UAC protocols;
ã?�System Requirementsã??
Computer system requirements:
Windows® 10 / Windows 8.1 / Windows 7 (SP1);
Desktop computer: -Intel® Core� i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660 or above;
Notebook: -Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above;
4 GB R-AM (8 GB recommended);
Mobile phone system requirements:
A-ndroid phone (supported by er phones);
Only supports USB2, not USB3. (The reason is that the a-ndroid UVC driver does not support USB3);
If it is a USB A-ndroid phone, you need to force a pure USB2 cable into USB2 mode to use it;
Specifications:
Material: Electronic Components
Color: Black
Host InterfaceUSB3.0, *300-350MB/s,
USB2.0, *40MB/s

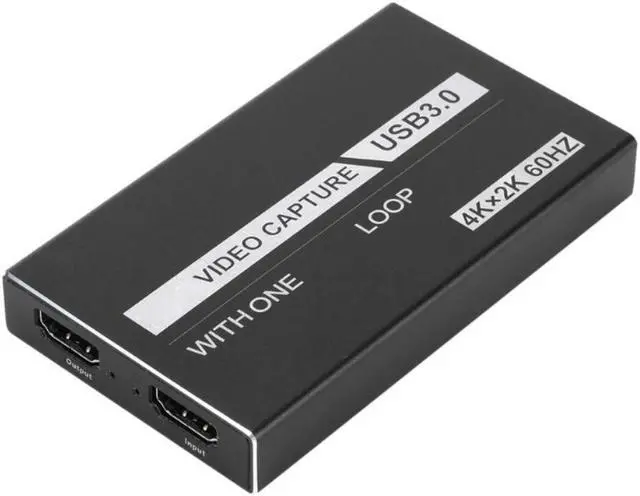

Input Interface: HDMI interface
Input Formats: 480i,480p,576i,576p,720p,1080i,1080P,4Kp30,4Kp60
Output Formats: 480i,480p,576i,576p,720p,1080i,1080P,4Kp30,4Kp60
Frame Rate: 30/40/48/50/59.94/60 fps

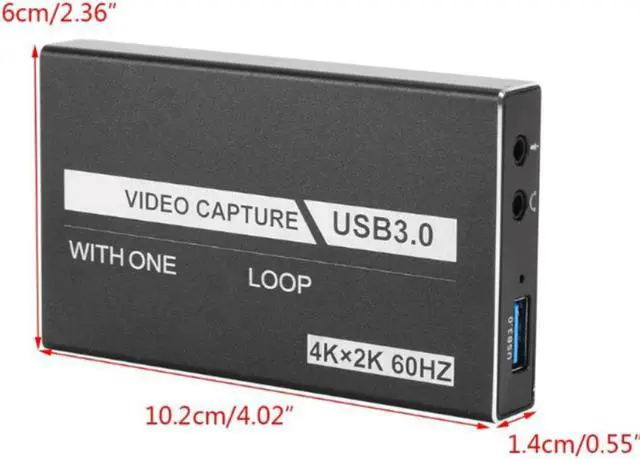

Size: About 102x60x13 mm(L*W*H)
Power consumption:
Working Temperature: 0-50 deg C
Storage Temperature: -20-70 deg C
Storage Humidity: 5%-90%
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2 cm differences due to manual measurement.
Package Included:

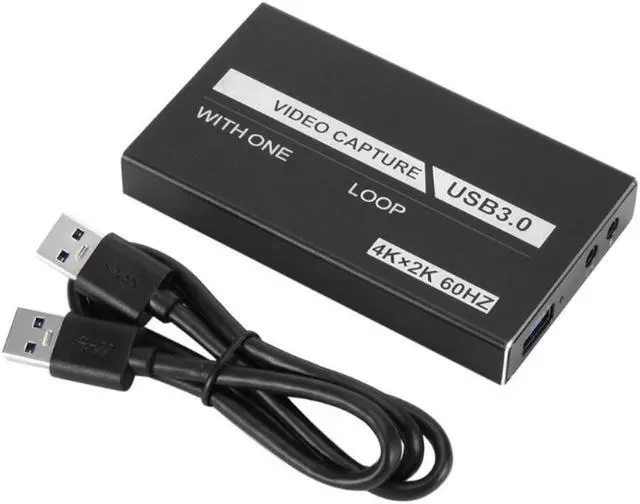

1x Video Record Card
1x USB Cable
