Origin:CN(Origin)
Model Number:4K Capture Card
Package:Yes
Type:Video & TV Tuner Cards
Interface Type:USB
Features:
1 HDMI-compatible input, 1 HDMI-compatible loop output, you can watch while recording.
Use USB 3.0 channel to record ultra-high-definition pictures at high speed.
Compatible with a variety of third-party acquisition software, such as OBS, VLC, etc.
Plug and play, no need to install driver.
Support recording NV12, YUY2, XRGB/RGB32 video formats.
Support 4K/60Hz resolution input.

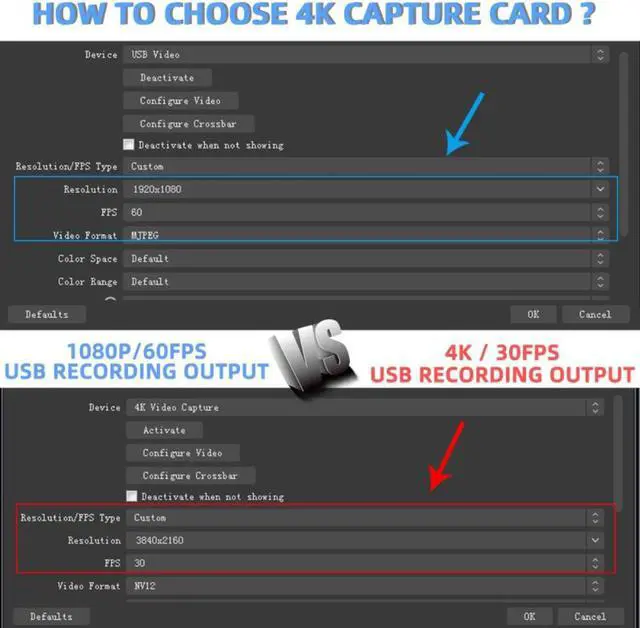

Recording screen resolution up to 4K/30Hz.

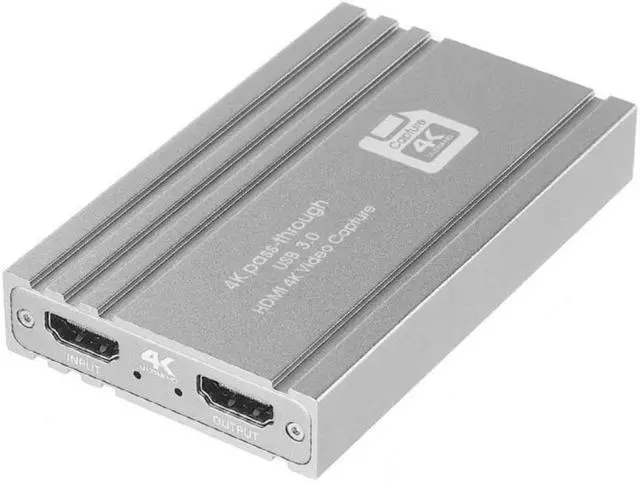

High-quality aluminum alloy body design, effectively shielding external interference.
Support CTIA and OMTP standard headsets.
Specification:
HDMI-compatible input and loop-out highest resolution: 4K/60Hz YUV4:4:4
HDMI-compatible input audio input format and sampling rate: PCM, 48KHz
Maximum bandwidth in USB3.0 mode: 3Gbps
Maximum bandwidth in USB2.0 mode: 311Mbps
Power consumption: 5V/0.9A
Operating temperature range: -40 - +85 90% RH (non-condensing)
Product material: Aluminum alloy
Color: Grey
Product size: approx. 103x63x16mm/4.06x2.48x0.63in
Support operating system: for Windows (7, 8.1, 10), for MacOS (over 10.12), for Linux, for Android (over 9)
Note:
1. Do not use HUB or USB extension cables.
2. Low computer configuration will cause irregular flickering or black screen in the recording screen.
3. For signal processing reasons, you will find that the recorded picture is out of sync with the picture, which is normal.
4. When the input resolution is less than 4K, the recording screen will be less than 4K.
5. 4K resolution cannot be recorded when connected to the USB2.0 port of the computer.
6. The recording of HDMI-compatible signals protected by HDCP is not supported.
Package Includes
1 X 4K Capture Card
