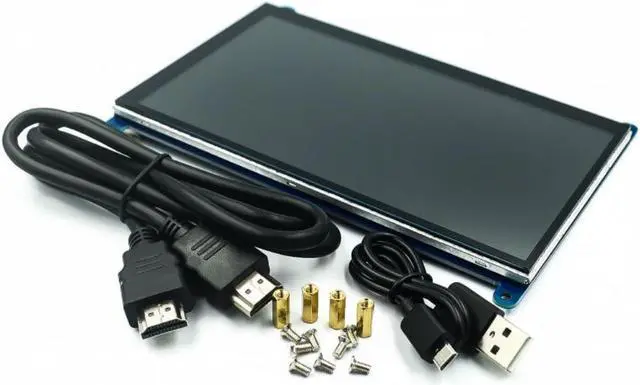

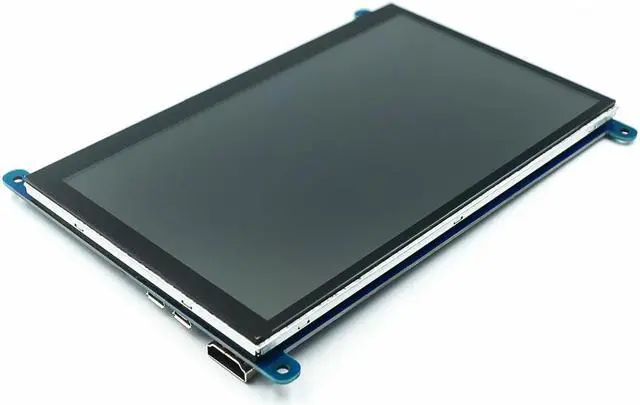

7 inch Raspberry pi touch screen 1024*600 7 inch Capacitive Touch Screen LCD, HDMI interface, supports various systems

Origin:CN(Origin)
Condition:
Type:Voltage Regulator
Model Number:MW
Application:Computer
Supply Voltage:1
Dissipation Power:1
is_customized:Yes

7inch standard display, 1024 x 600 ultra hd resolution
Capacitive touch screen, support 5 point touch
Support backlight control separately, can be turned off to save power consumption
Support standard HDMI interface input, compatible and can be directly inserted (generation 3, generation 2, generation 1)
Can be used as a general HDMI display, such as computer HDMI as a secondary display (resolution output can be adjusted to 1024X600)
Used as a display, support Raspbian, Ubuntu, Kodi, win10 IOT, single point touch, to avoid flooding
Used as a computer monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version of the system single point touch), drive
1024×600 high resolution
Capacitive touch control
Supports Raspberry Pi
Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
Supports BB Black, comes with Angstrom image
Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
HDMI interface for displaying, USB interface for touch control
Back light control to lower power consumption
For the Raspberry Pi, comes with Raspbian driver (works with your Raspbian directly), and Ubuntu image
When work as a computer monitor, touch function is unavailable
Rev2.1 Features:
Upgrade to IPS screen, wider viewing angle, more clear displaying
Standard HID protocol, easy to be integrated into your system
For the Raspberry Pi, supports Raspbian, Ubuntu, Windows 10 IoT, single touch, and driver
When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver
Drivers can be added to your current system to support LCD display and touch control.
Images CAN NOT be used with your current system. They're stand-alone systems which support LCD display and touch control already.
Why the LCD doesn't work with my Raspbian?To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.Why the LCD still doesn't work with the Waveshare provided image?Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact. Which power supply should I use?It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might doesn't have enough power to support the Pi and LCD.
